Doors, Hood and Trunk

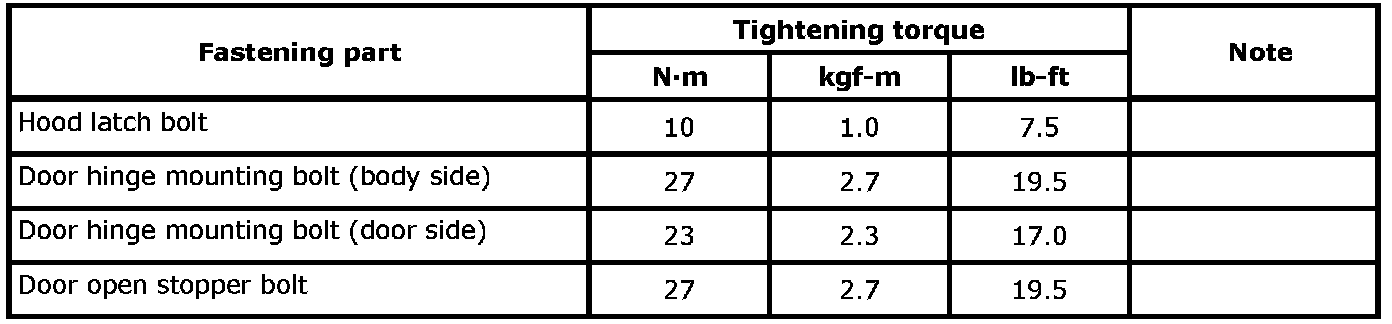

TIGHTENING TORQUE SPECIFICATIONS





NOTE:
The specified tightening torque is also described in the following.
Front Door Assembly Components
Front Door Assembly Components
Rear End Door Assembly Components

Reference: For the tightening torque of fastener not specified in this section, refer to Fastener Information.
