System Specifications

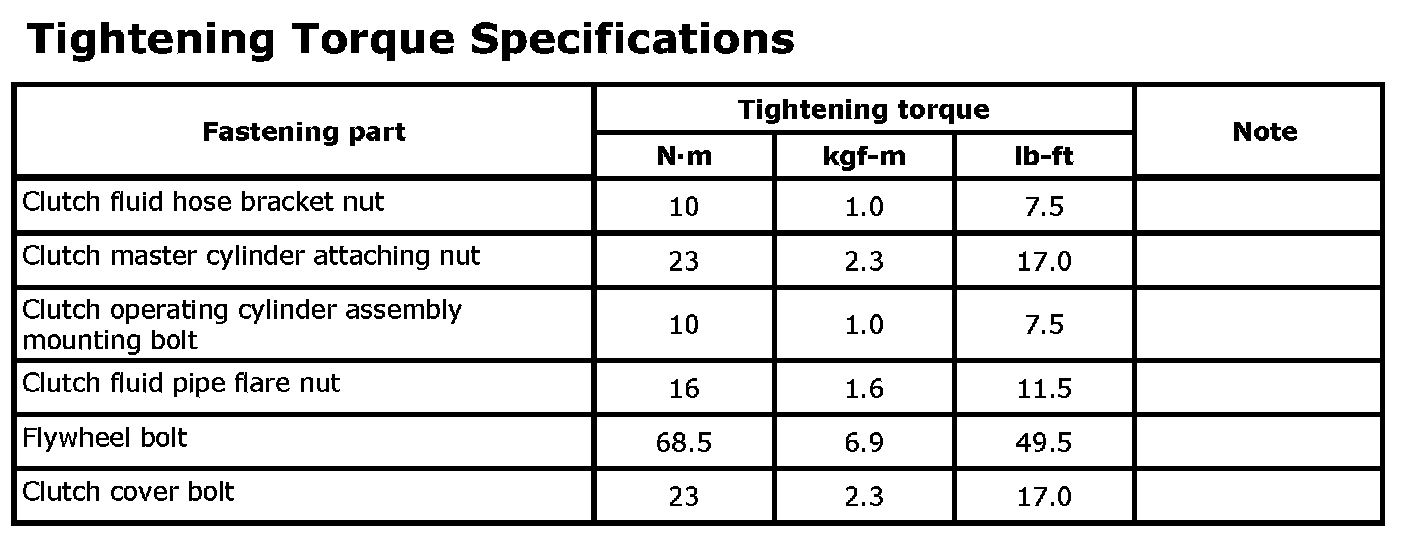

Tightening Torque Specifications





NOTE:
The specified tightening torque is also described in the following. Clutch Cover, Clutch Disc and Flywheel Components

Clutch Disc
Rivet head depth Standard 1.5 mm (0.06 in.)
Service limit 0.5 mm (0.02 in.)
