Air Bag Warning Light Cannot Indicate Flashing Pattern of DTC (If Equipped With Air Bag Monitor Coupler)

"AIR BAG" Warning Light Cannot Indicate Flashing Pattern of DTC (If Equipped with "AIR BAG" Monitor Coupler)

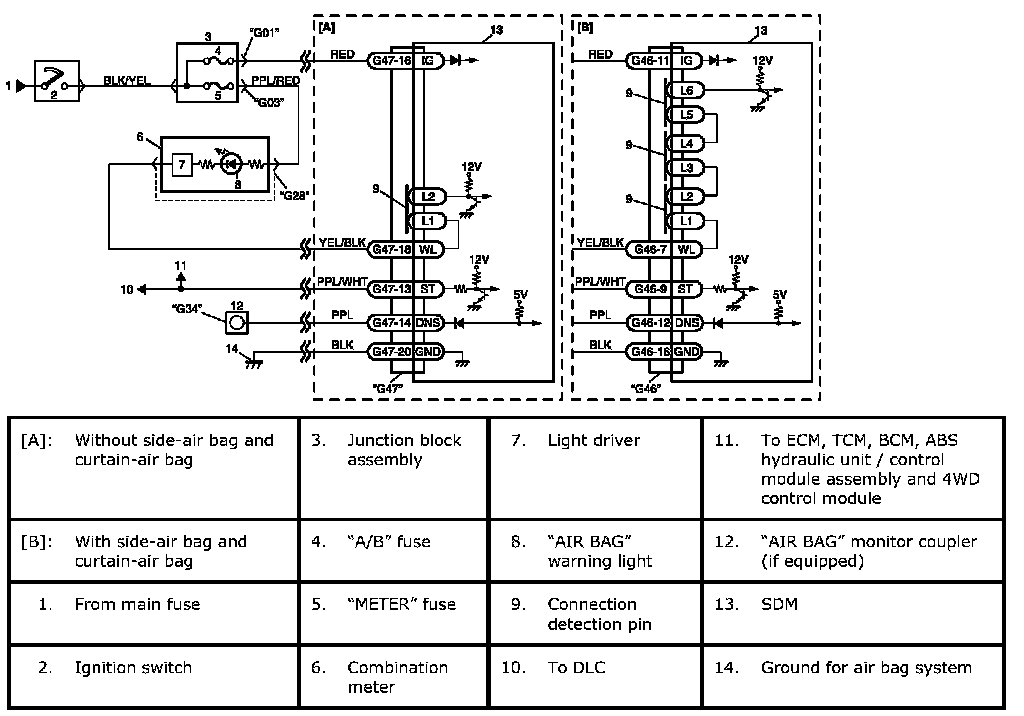

Wiring Diagram

Wiring Diagram:

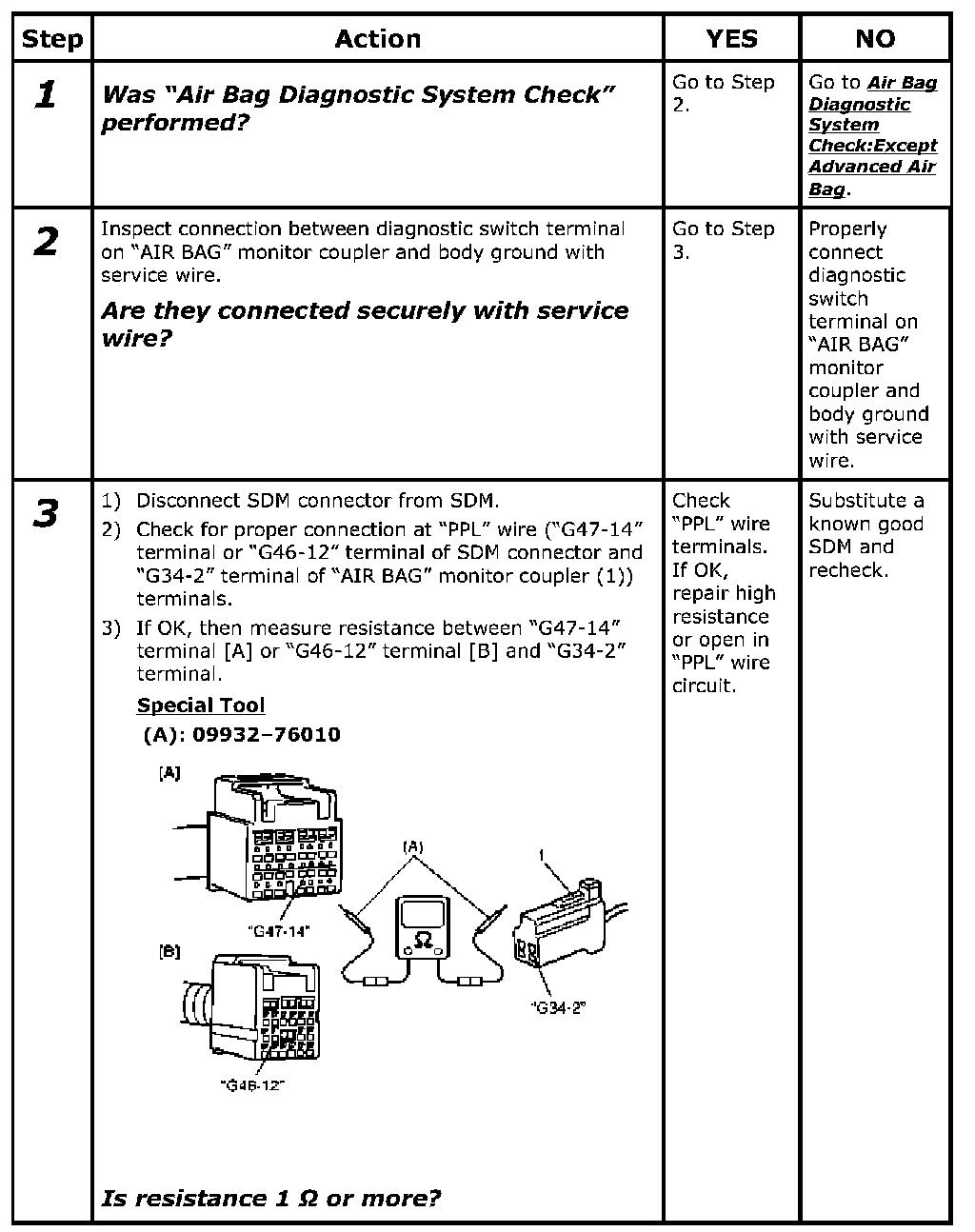

Flow Test Description
Step 2: Check "AIR BAG" monitor coupler.
Step 3: Check for open circuit in air bag diagnosis switch circuit.

Troubleshooting

Step 1-3:

NOTE: Upon completion of inspection and repair work, perform the following items.
- Reconnect all air bag system components and ensure all components are properly mounted.
- Repeat Air Bag Diagnostic System Check:Except Advanced Air Bag to confirm that the trouble has been corrected.
