Air Bag Diagnostic System Check Flow

Air Bag Diagnostic System Check Flow

CAUTION:
- Be sure to perform Air Bag Diagnostic System Check:Except Advanced Air Bag before starting diagnosis according to each flow.
- When measurement of resistance or voltage is required in the flow, use a tester along with a correct terminal adapter from special tool (Connector test adapter kit).
- When a check for proper connection is required, refer to Inspection of Intermittent and Poor Connections:Except Advanced Air Bag.
- If an open circuit in the air bag wire harness damaged, connector or terminal is found, replace the wire harness, connectors and terminals as an assembly.

Flow test description
Step 1: Check "AIR BAG" warning light and circuits.
Step 2: Check that "AIR BAG" warning light lights.
Step 3: Check diagnosis switch circuit.
Step 4: Check that "AIR BAG" warning light flashes 6 times after ignition switch is turned ON.
Step 6: Check that history code(s) is in SDM memory. (using SUZUKI scan tool)
Step 7: Check that history code(s) is in SDM memory. (using monitor coupler)
Step 9: Check that current code is in SDM memory. (using SUZUKI scan tool)
Step 10: Check that current code is in SDM memory. (using monitor coupler)

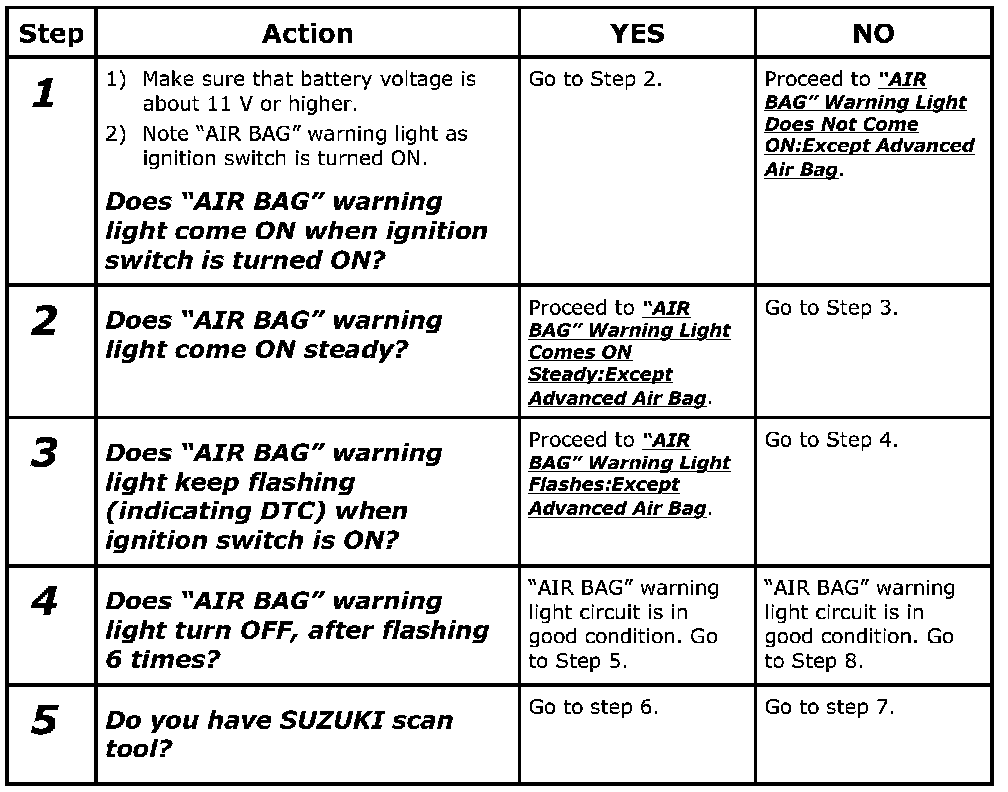

Step 1-5:

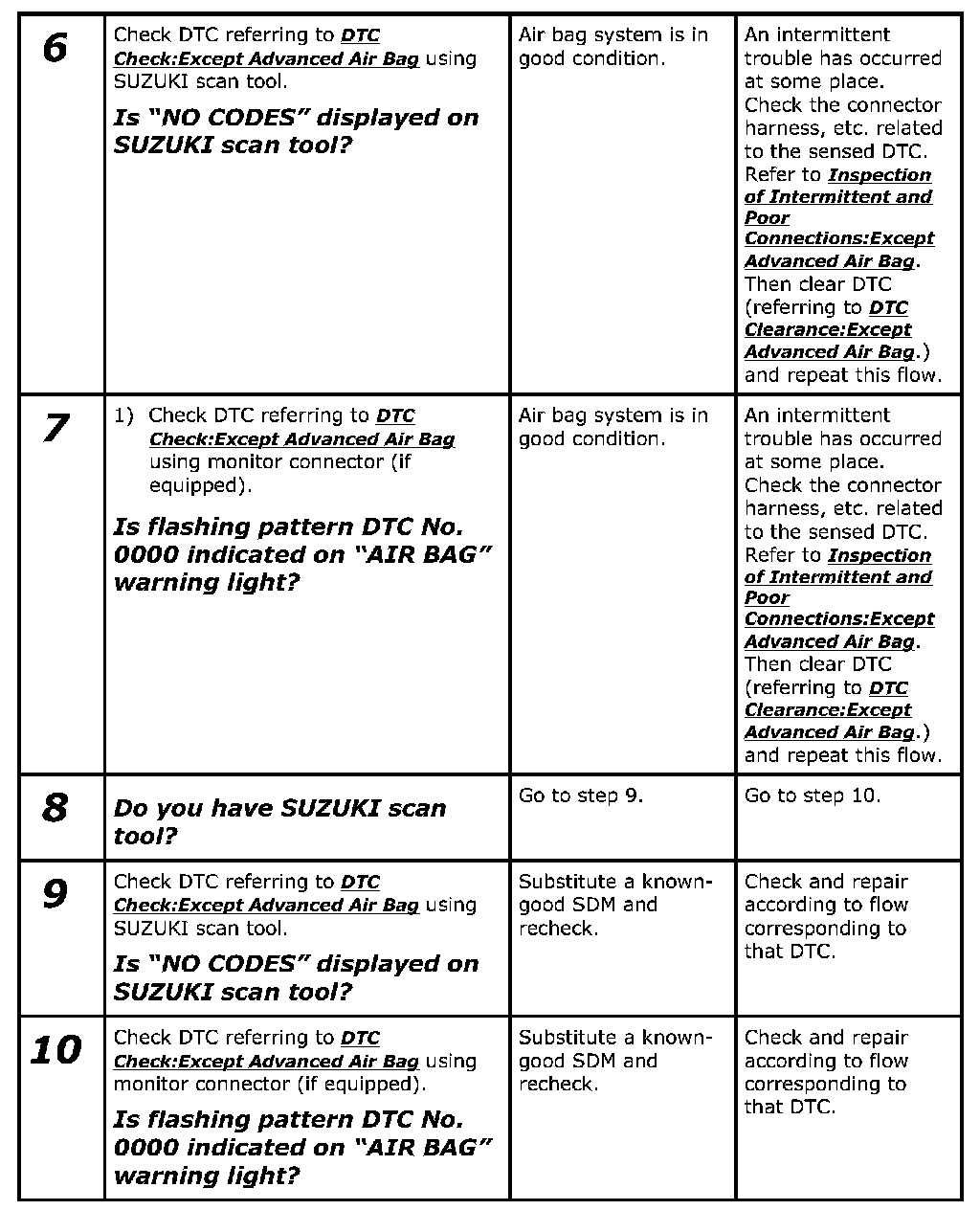

Step 6-10:
