Fuel Pressure Check

Fuel Pressure Check

System Diagram

Special Tool
(A: 09912-58442
(B): 09912-58432
(C): 09912-58490

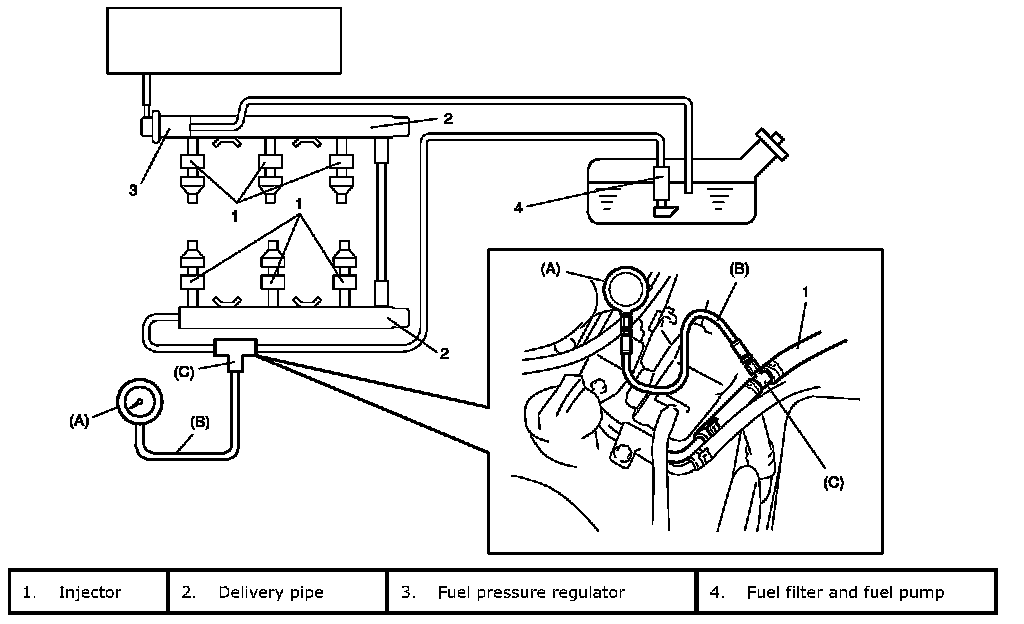

System Diagram:






Troubleshooting

NOTE: Before using following flow, check to make sure that battery voltage is higher than 11 V. If battery voltage is low, pressure becomes lower than specification even if fuel pump and line are in good condition.

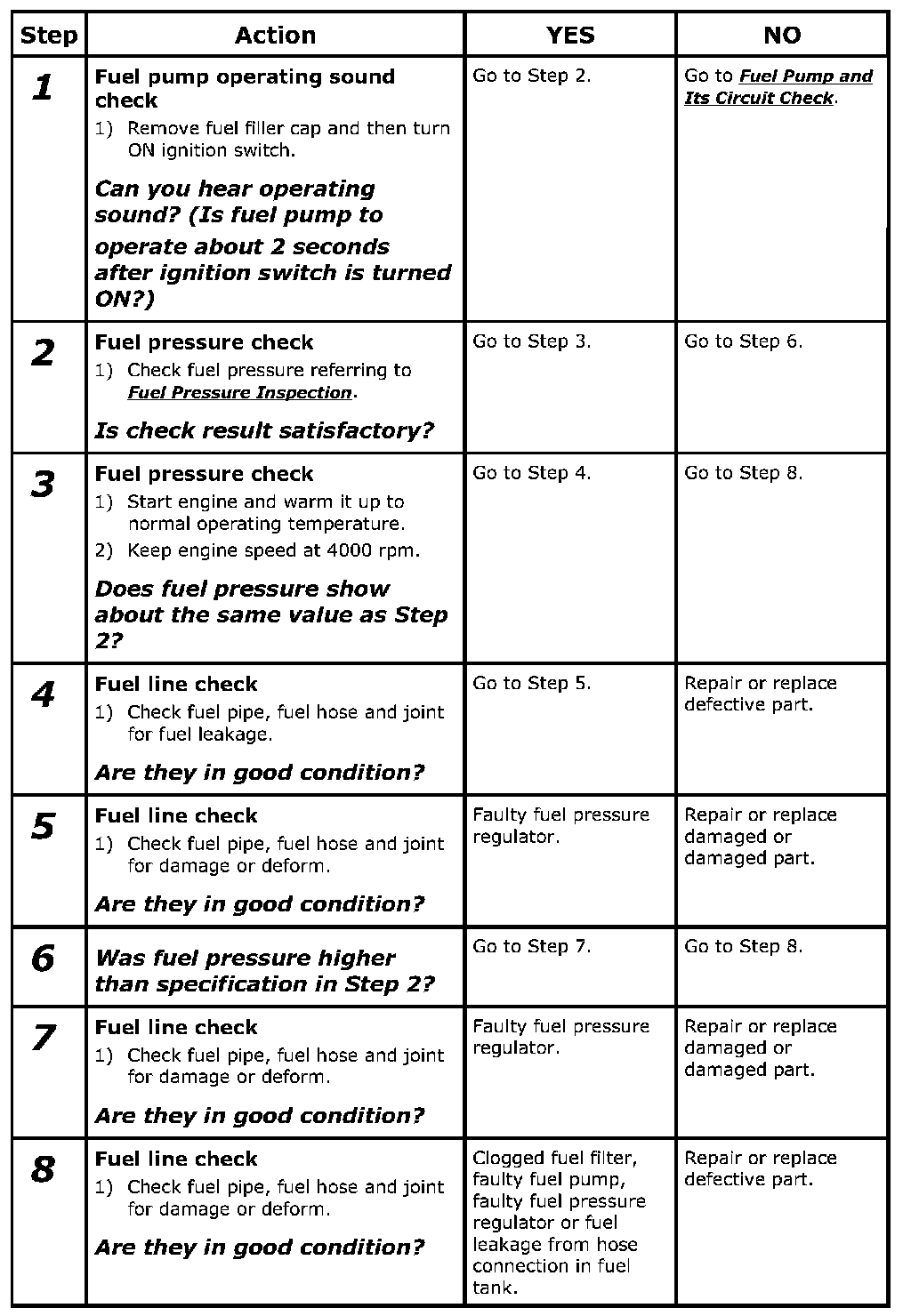

Step 1-8:
