Fuel Pressure Regulator: Testing and Inspection

Fuel Pressure Regulator Inspection

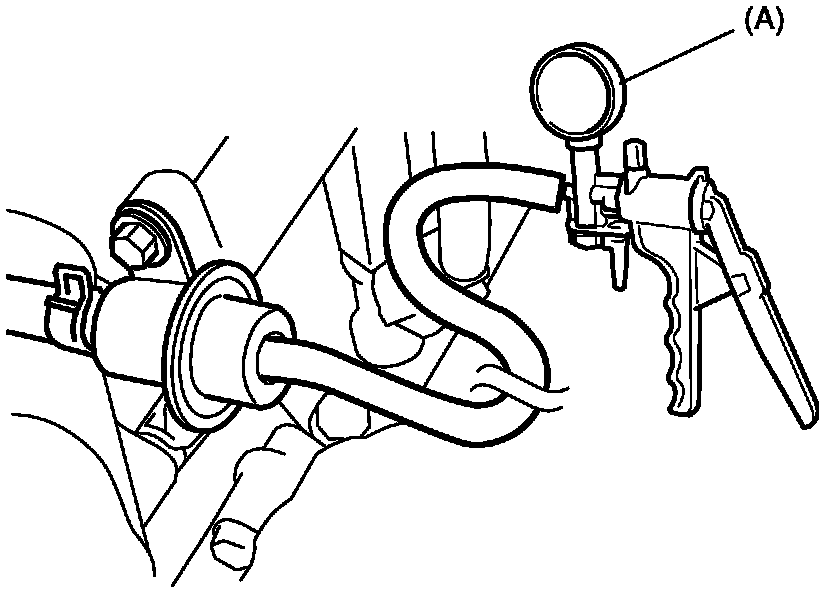

Confirm fuel pressure of fuel line is decreased when fuel pressure regulator is applied negative pressure by special tool.

Special Tool
(A): 09917-47011
