Fuel Line Coupler: Service and Repair

Fuel Hose Disconnecting and Reconnecting

WARNING: Before starting the following procedure, be sure to observe Precautions on Fuel System Service in order to reduce the risk or fire and personal injury.

Be sure to connect and clamp each hose correctly as shown in figure.

For Normal Clamp

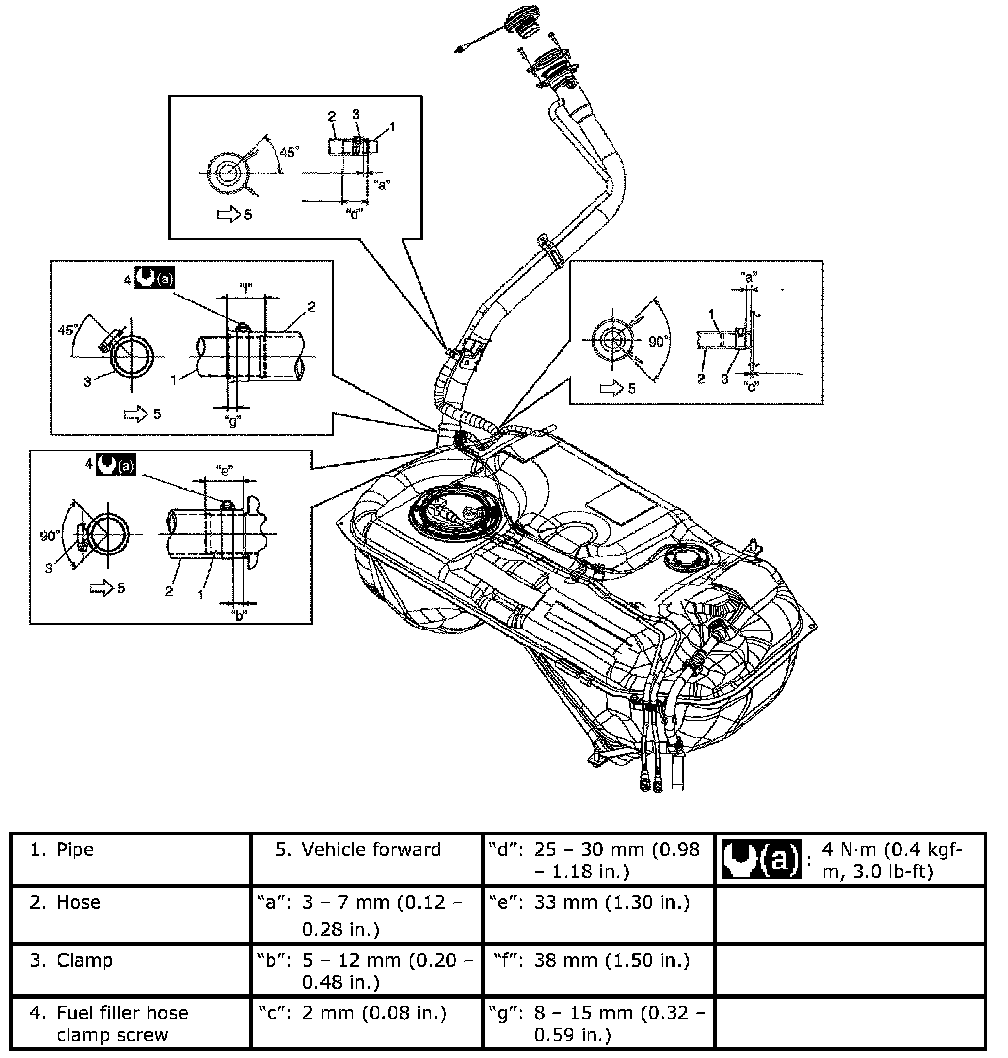

Fuel tank system

NOTE: Be sure to install hose to spool of pipe surely.

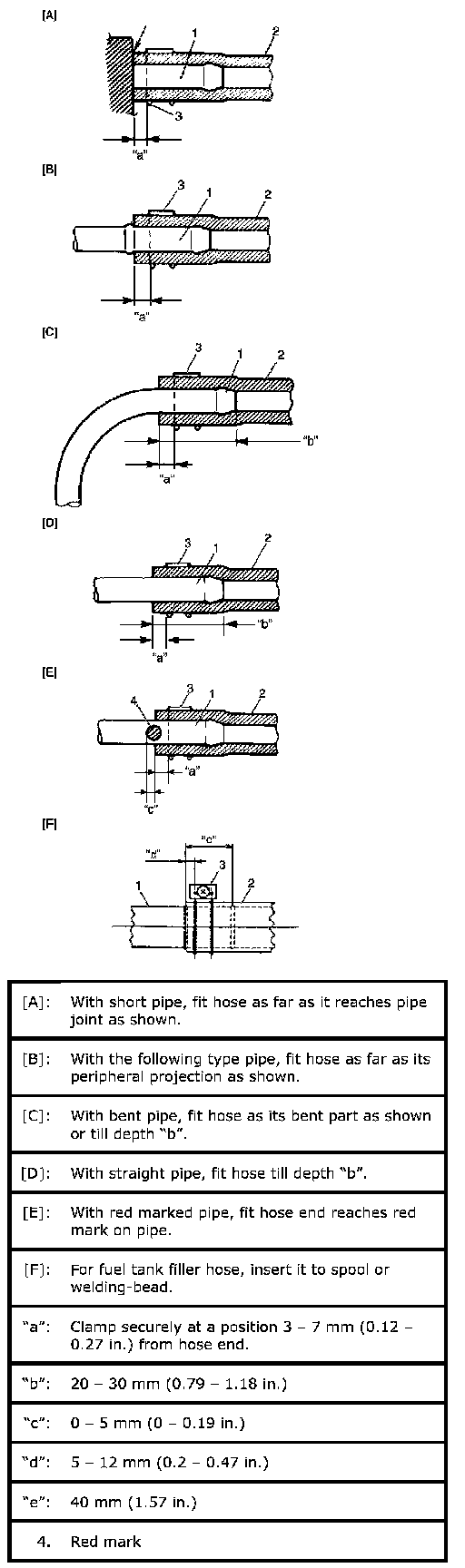

The other than fuel tank system






For Quick Joint (other than Fuel Vapor Line)

Disconnecting

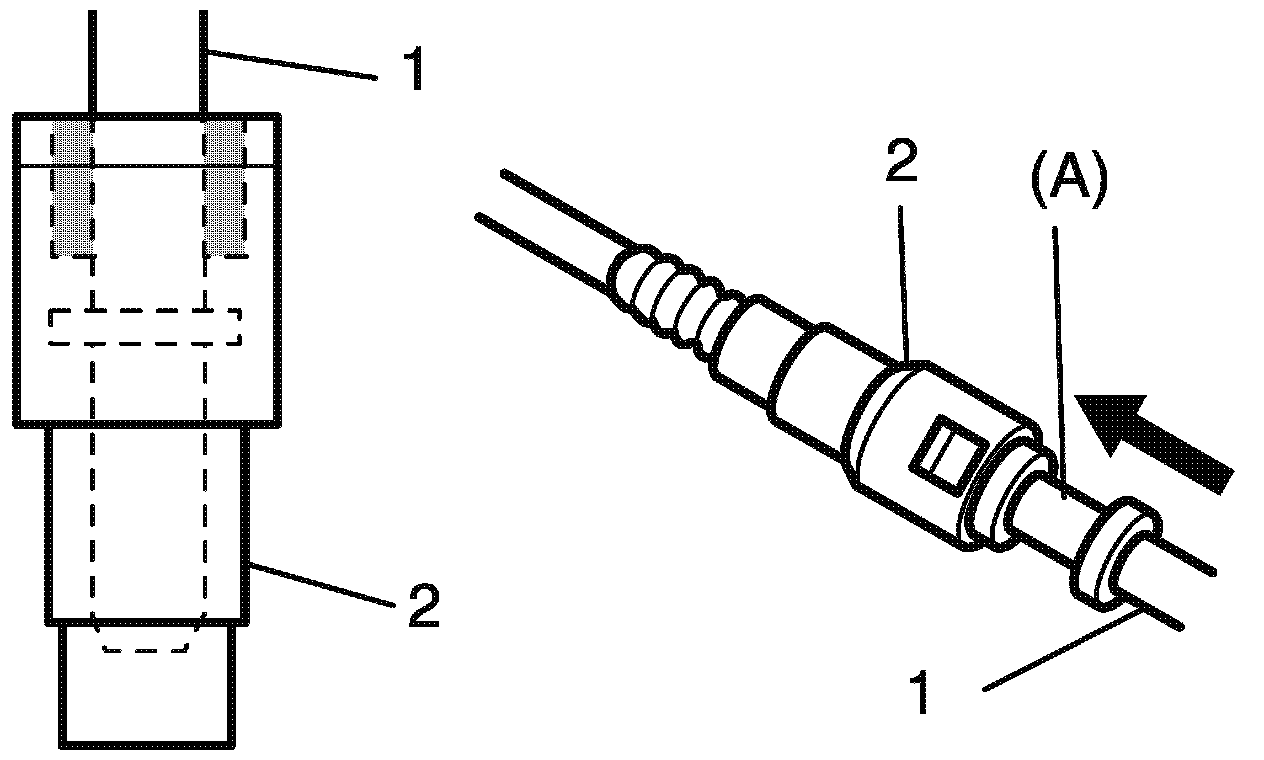

1. Remove mud, dust and/or foreign material between pipe (1) and quick joint (2) by blowing compressed air.
2. Unlock joint lock by inserting special tool between pipe and quick joint.

Special Tool
(A): 09919-47020

3. Disconnect quick joint from pipe.






Reconnecting
Insert quick joint to fuel pipe until they lock securely (a click is heard), and confirm that quick joint is not disconnected by hand.

For Quick Joint (Fuel Vapor Line)

Disconnecting

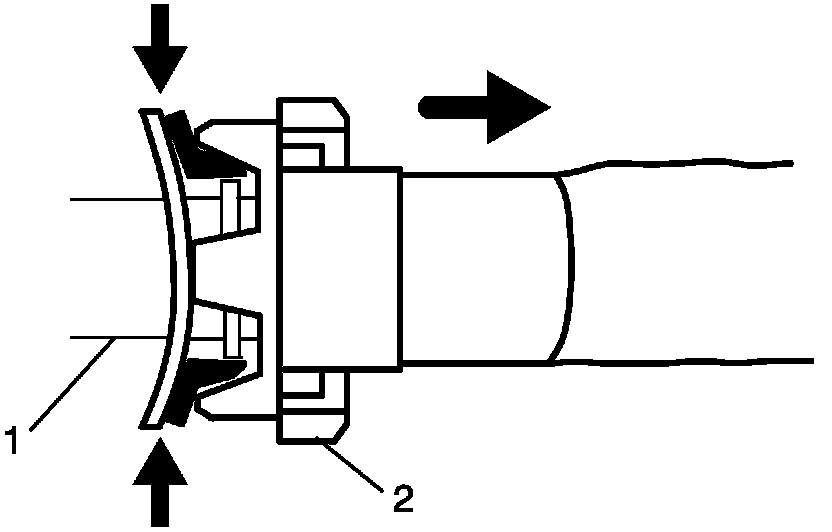

1. Remove mud, dust and/or foreign material between pipe (1) and quick joint (fuel vapor line) (2) by blowing compressed air.
2. Disconnect hose joint while joint lock is unlocked by pushing both sides of joint.






Reconnecting

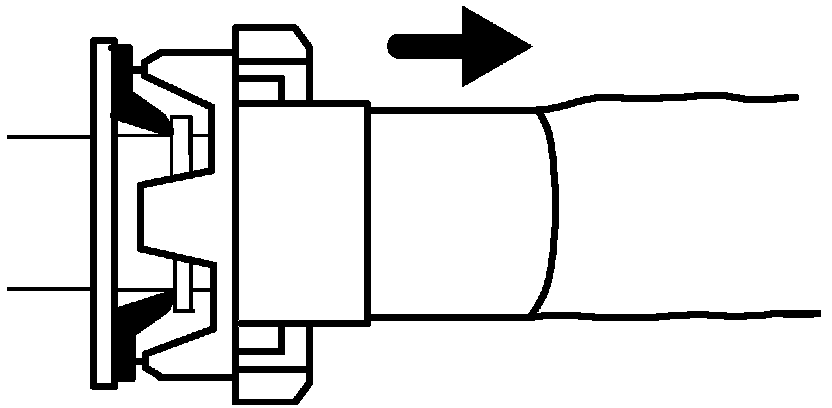

1. For quick joint, push joint into pipe till joint lock clicks and check that quick joint does not pull out by pulling quick joint in arrow direction.






2. Confirm that quick joint is not disconnected by hand.
