Evaporative Emission Control Canister: Testing and Inspection
EVAP Canister InspectionReference: EVAP Canister Removal and Installation
WARNING: Do not suck nozzles on EVAP canister.
Fuel vapor inside EVAP canister is harmful.

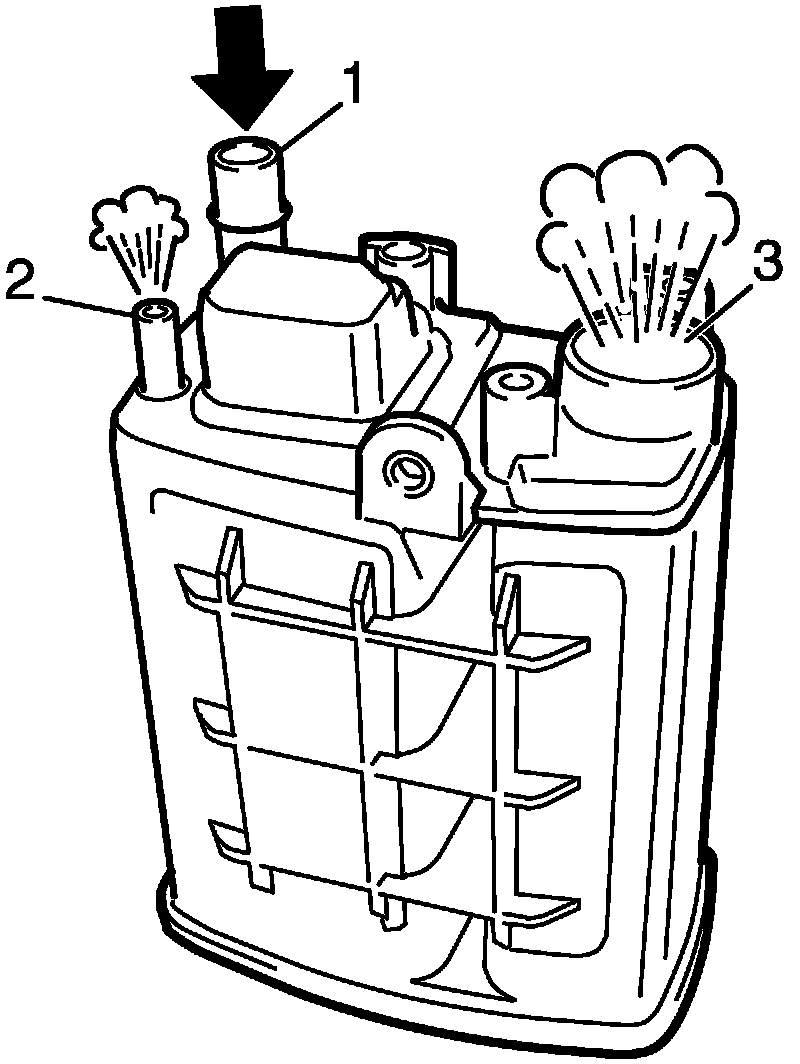

When air is blown into tank pipe port (1), there should be no resistance of flow through purge pipe port (2) and EVAP leak check module port (3). If any abnormality is found, replace EVAP canister.
