Evaporative Emission Control Canister: Service and Repair
EVAP Canister Removal and InstallationRemoval
1. Disconnect negative cable at battery.
2. Hoist vehicle.
3. Disconnect EVAP leak check module connector.
4. Disconnect hoses (1) from EVAP canister (2).
For quick joint of hoses, disconnect it as follows

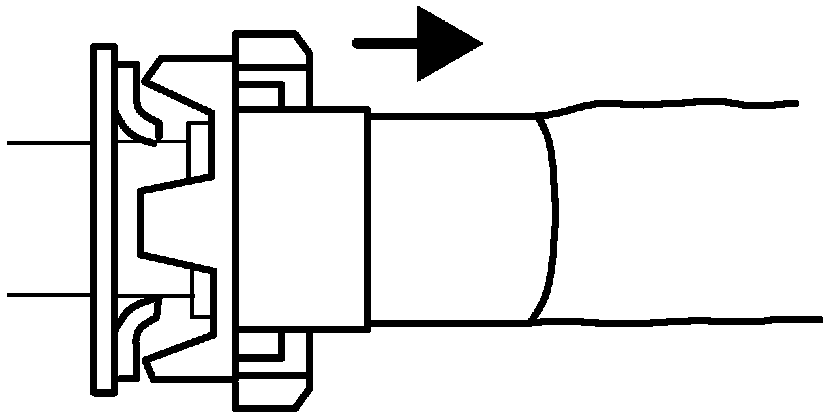

a. Remove mud or rust around joint by blowing compressed air, and push joint fully in arrow direction.
b. Disconnect hose joint while joint lock is unlocked by pushing both sides of joint.
5. Remove EVAP canister with EVAP leak check module, EVAP canister air suction filter and its bracket (3).
6. Remove EVAP canister with EVAP leak check module from its bracket.
7. Remove EVAP leak check module cover.
8. Disconnect hoses from EVAP leak check module and EVAP canister.
9. Remove EVAP leak check module from EVAP canister.
Installation
For installation, reverse removal procedure noting the following.
- When installing hoses, do not apply soap, grease or oil insertion part.
- For quick joint, push joint into pipe till joint lock clicks and check that quick joint does not pull out by pulling quick joint in arrow direction.
