Courtesy Lamp: Testing and Inspection

Interior Light Symptom Diagnosis

NOTE:
- Use of SUZUKI scan tool makes it easy to check whether a faulty condition is on the input side or output side of BCM. For checking procedure, refer to Diagnosis Using Output Test Function of SUZUKI Scan Tool under Scan Tool Data.
- Check each part in the order from the top of the following list.

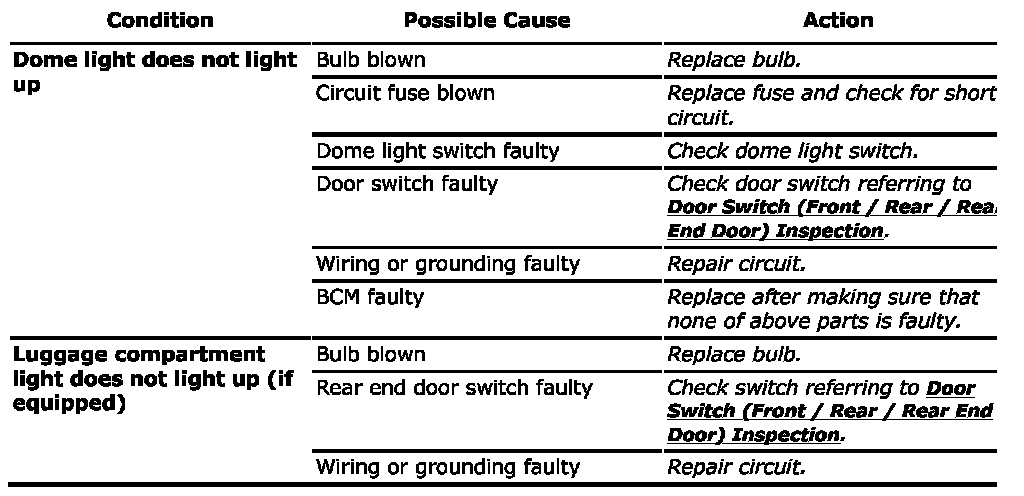

Interior Light Symptom Diagnosis:
