Back Up Light Switch Inspection

Back Up Light Switch Inspection

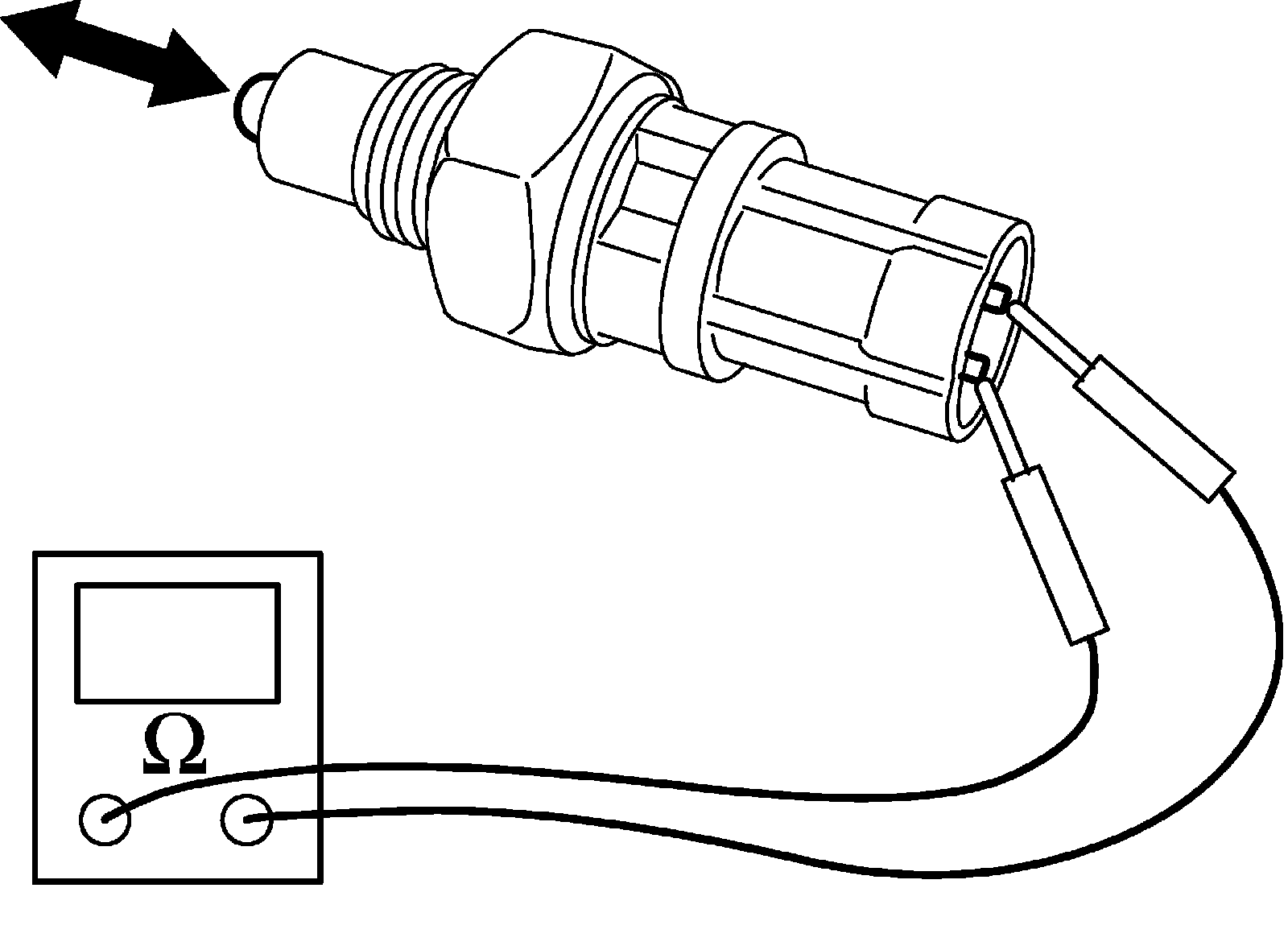

Check back up light switch for function using ohmmeter. If resistance is not as specified below, replace back up light switch.

Back up light switch specification
Switch ON (Push): Continuity
Switch OFF (Release): No continuity
