Auto A/C Electronic Control Input/Output Table
Auto A/C Electronic Control Input/Output Table

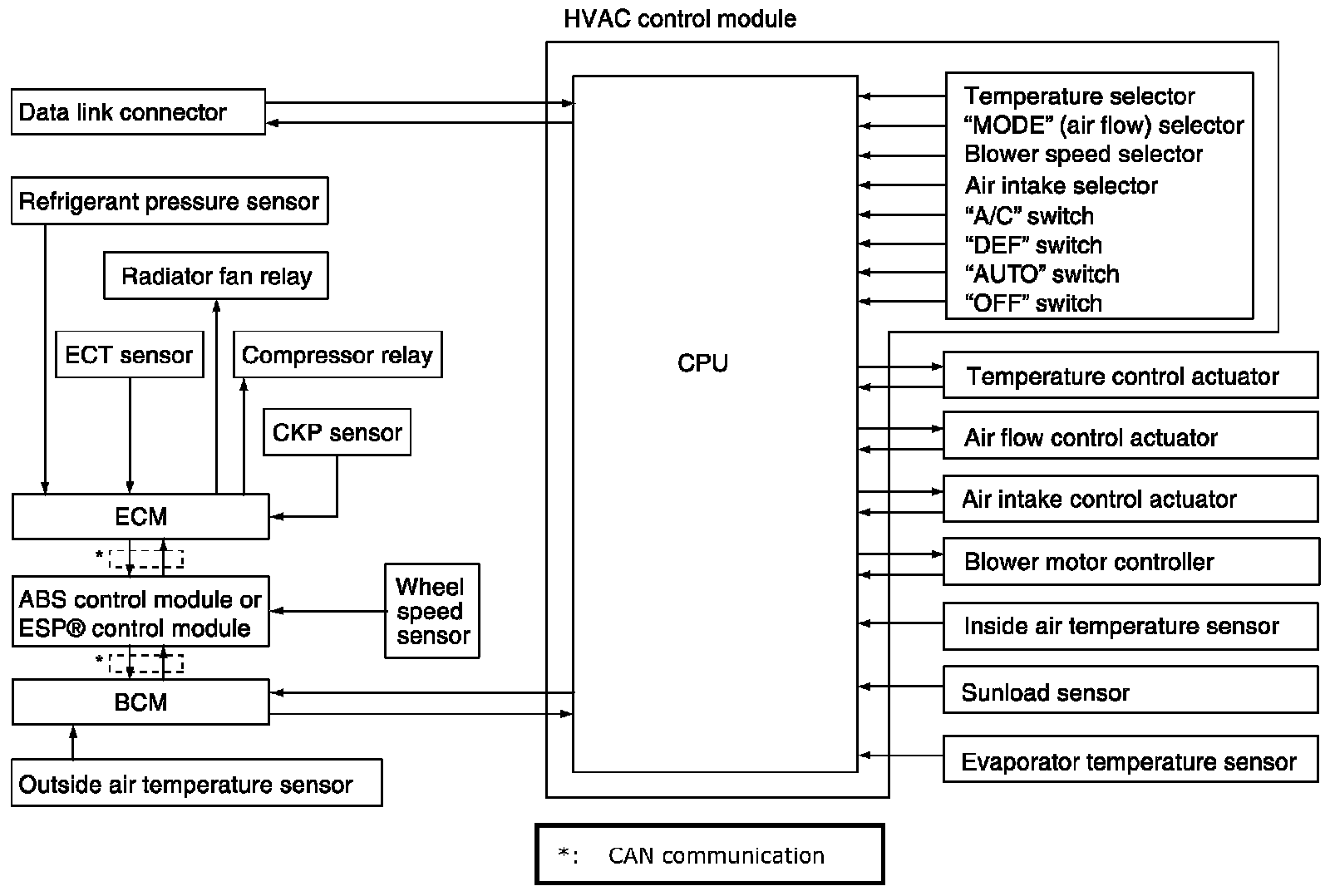

Auto A/C Electronic Control Input / Output Table:
