Air Conditioning System

HVAC Air Filter Removal and Installation

Removal
1. Disconnect negative (-) cable at battery.
2. Remove glove box.

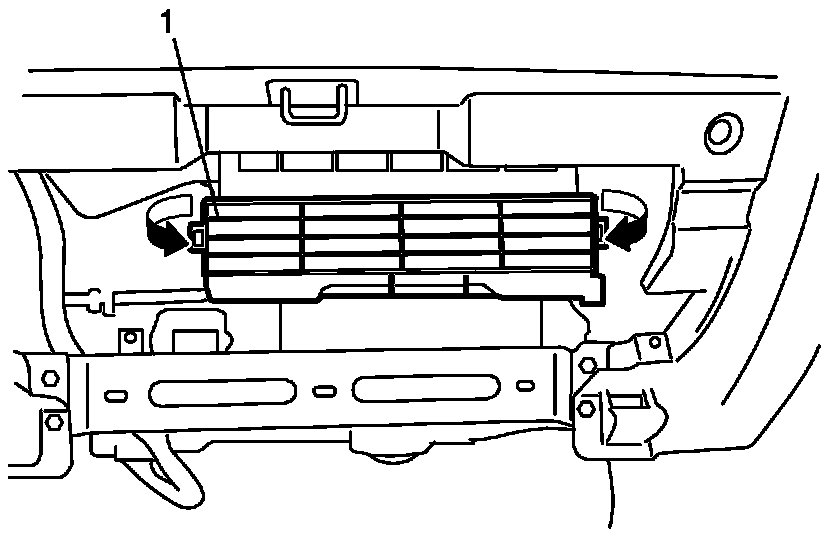

3. Remove filter cover (1).

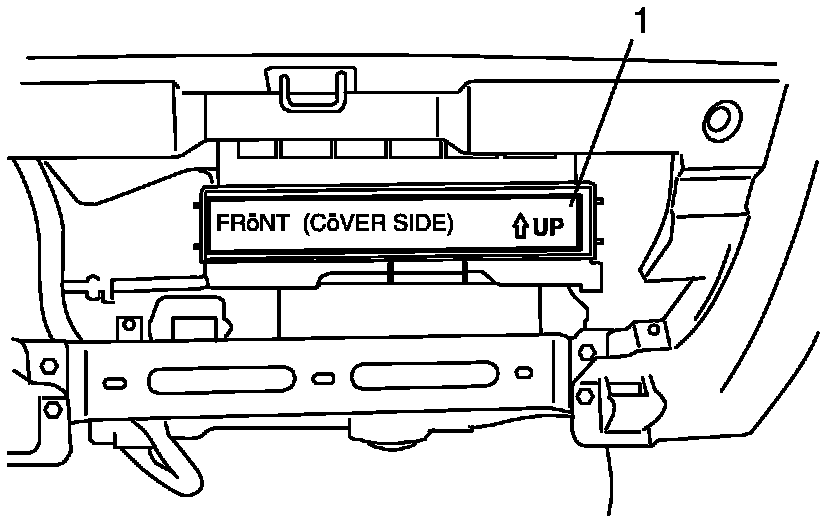

4. Pull out filter element (1).






Installation

Reference: HVAC Air Filter Inspection
Reverse removal procedure for installation noting the followings:

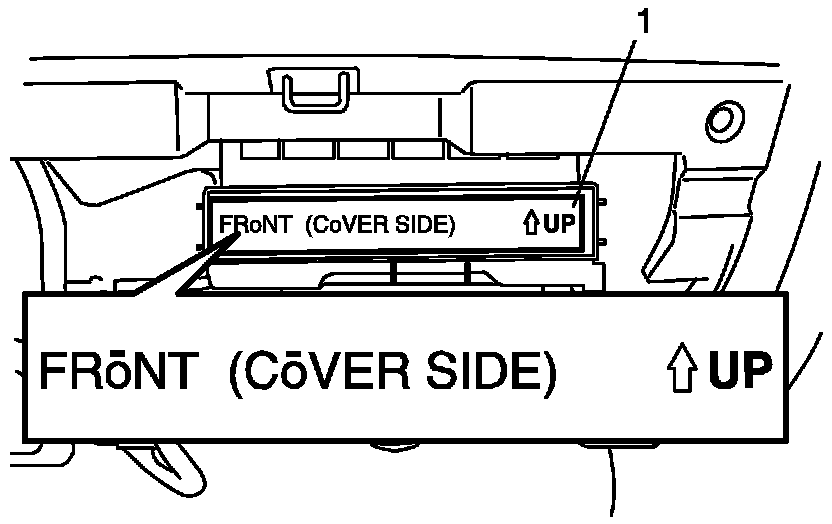

- Install filter (1) into blower unit by paying attention to direction of arrow on filter.
- Enable air bag system after installation of filter.
Refer to Enabling Air Bag System:Advanced Air Bag or Enabling Air Bag System:Except Advanced Air Bag.
