Suzuki Truck
>>
2008
>>
Grand Vitara 2WD V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Timing Chain
>>

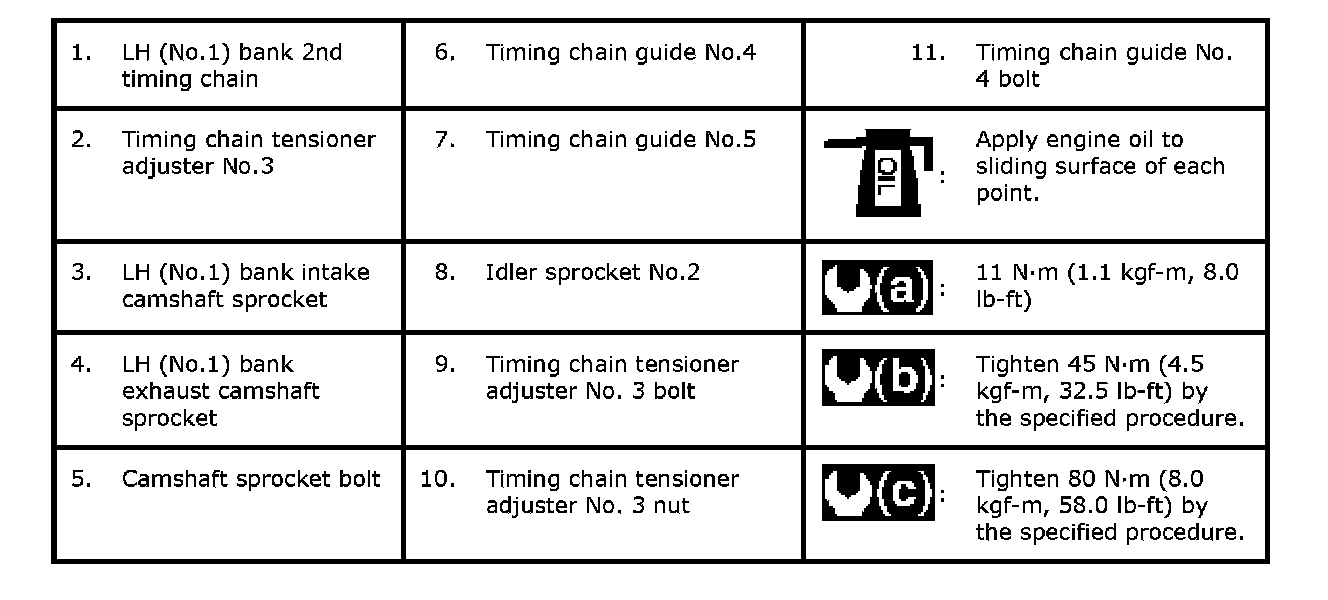

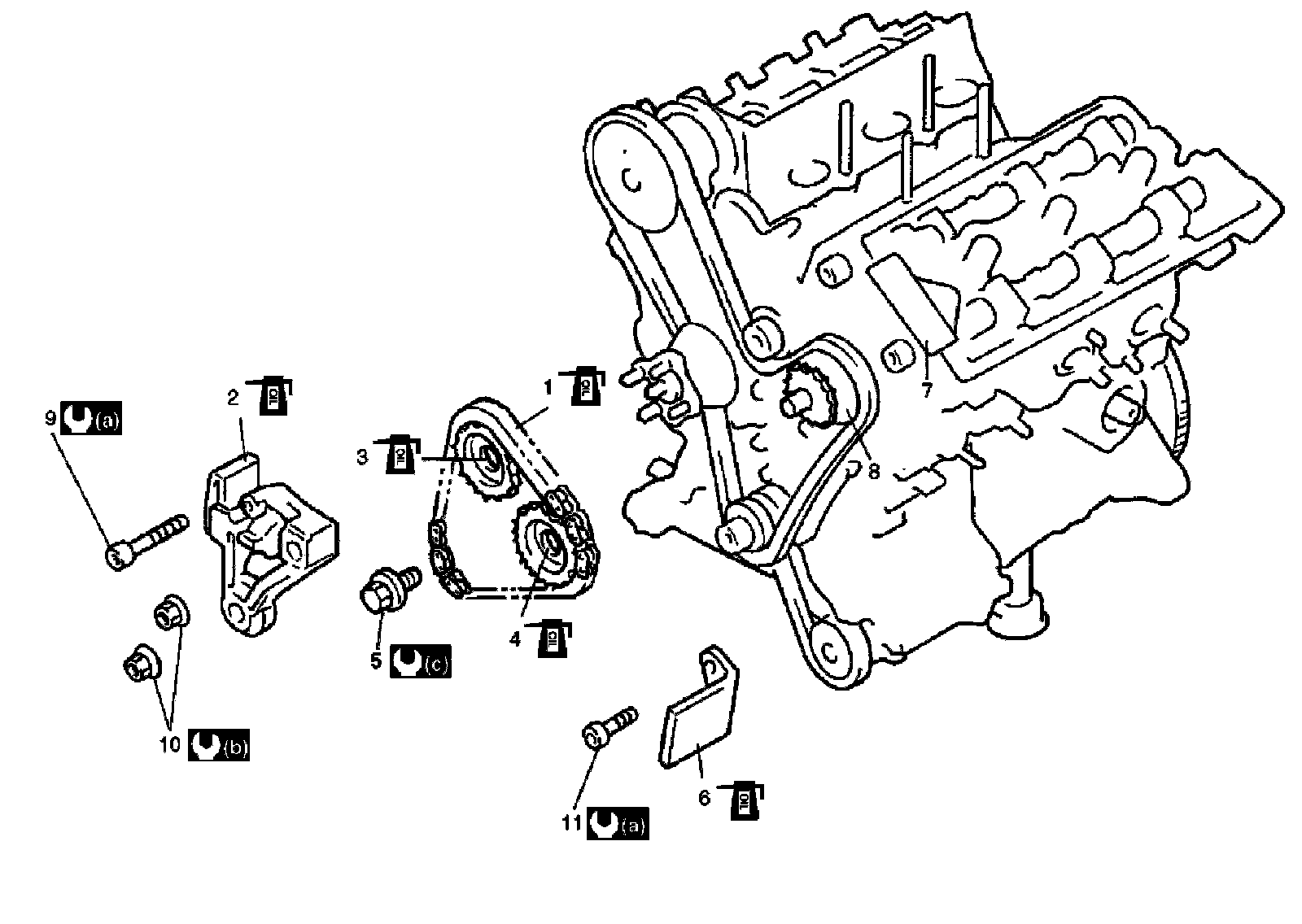

LH (No. 1) Bank 2ND Timing Chain and Chain Tensioner Components
LH (No. 1) Bank 2ND Timing Chain and Chain Tensioner Components
LH (No. 1) Bank 2nd
Timing Chain
and Chain Tensioner Components
