Ignition System Wiring Circuit Diagram
Ignition System Wiring Circuit Diagram

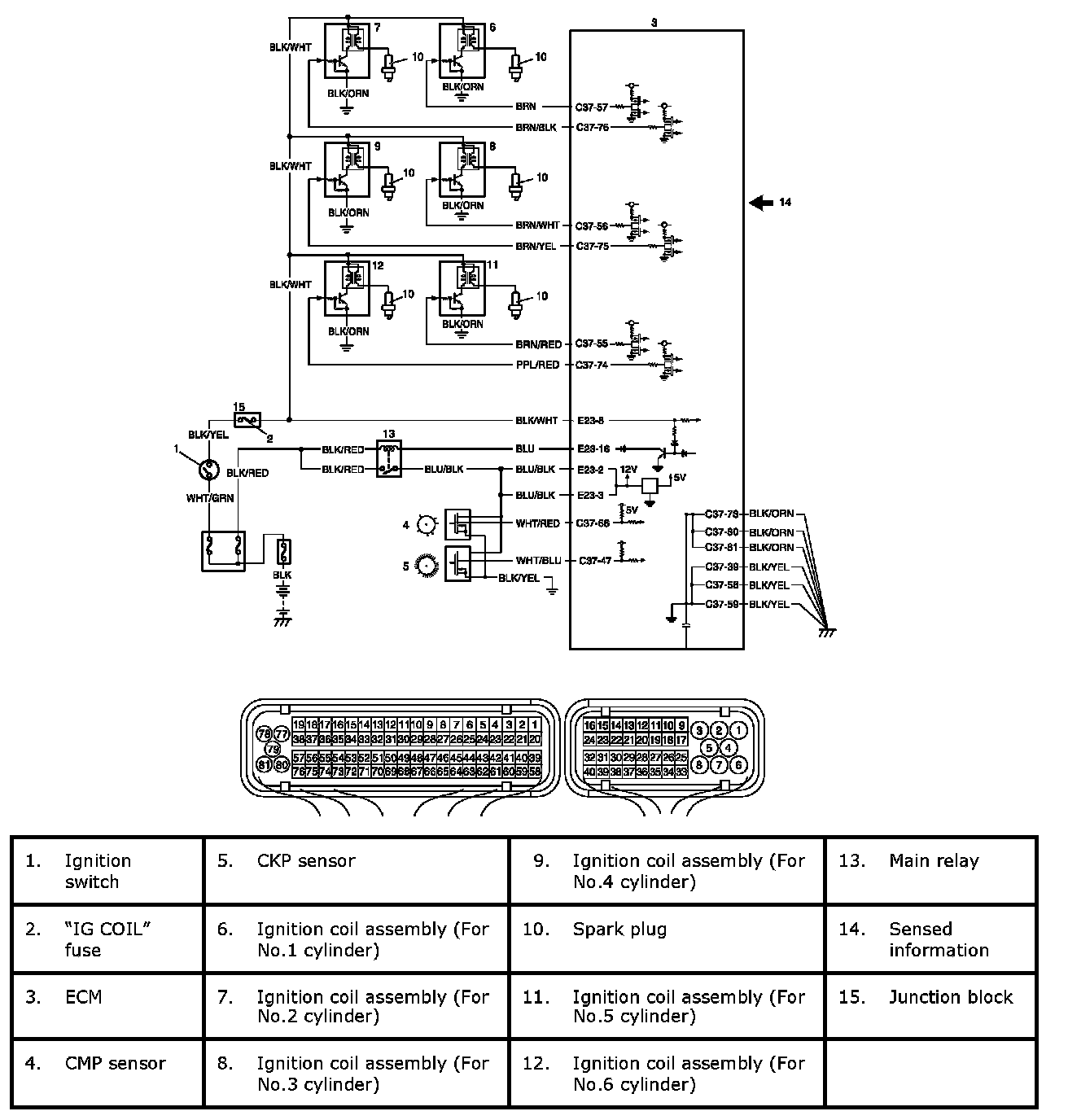

Ignition System Wiring Circuit Diagram:
