Suzuki Truck
>>
2008
>>
Grand Vitara 2WD V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
Electronic Stability Program (ESP)
>>

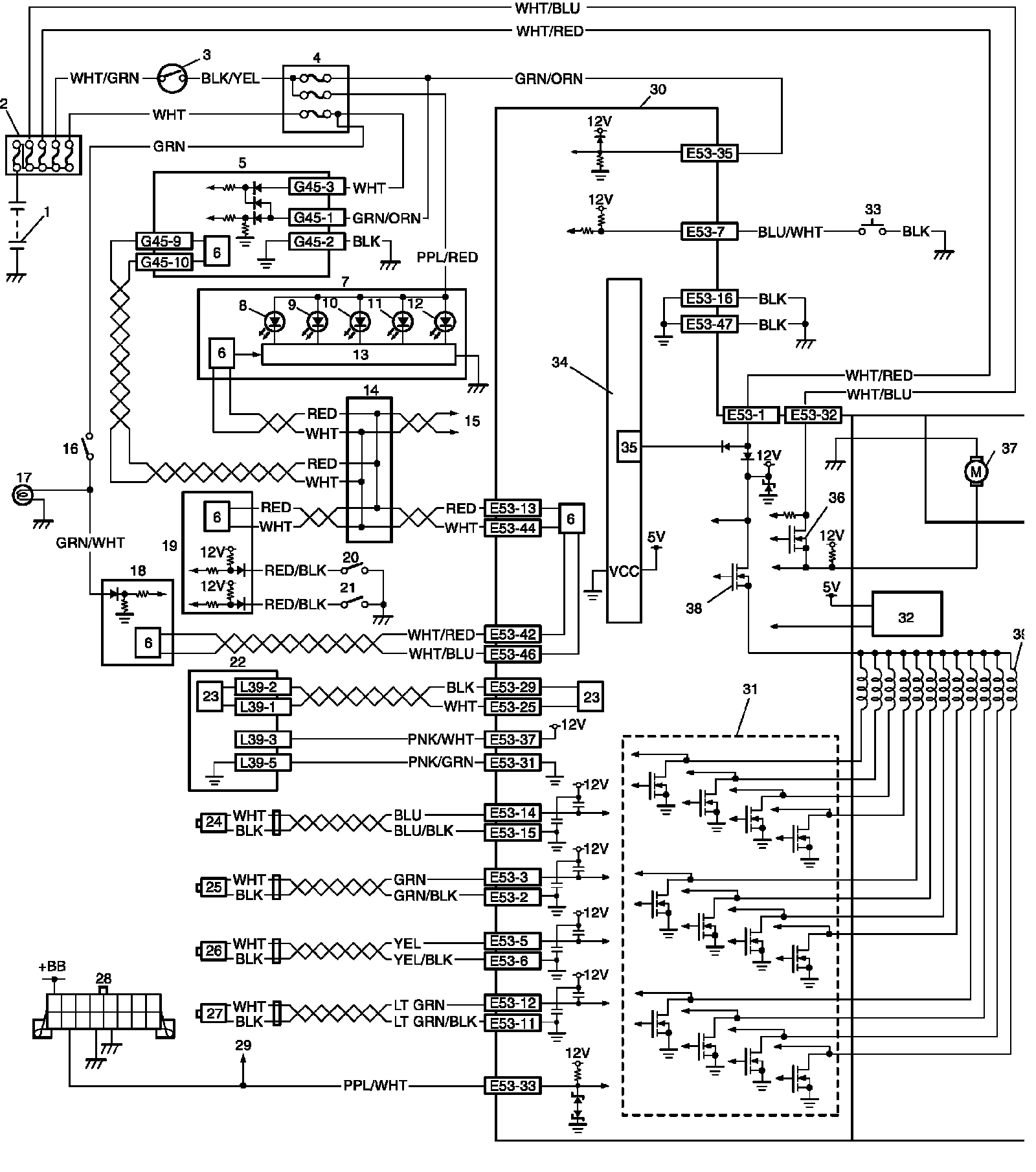

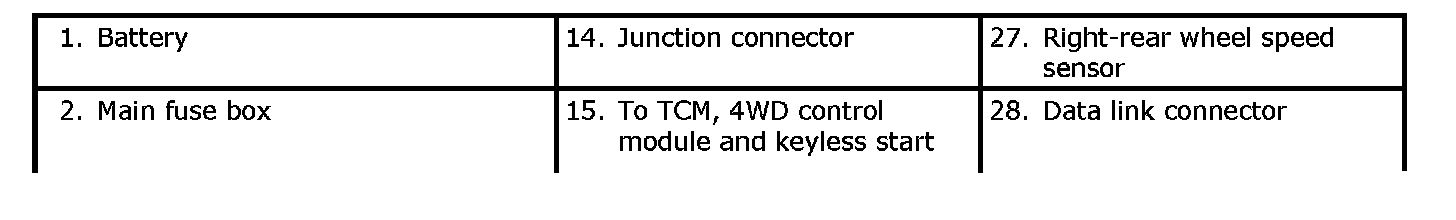

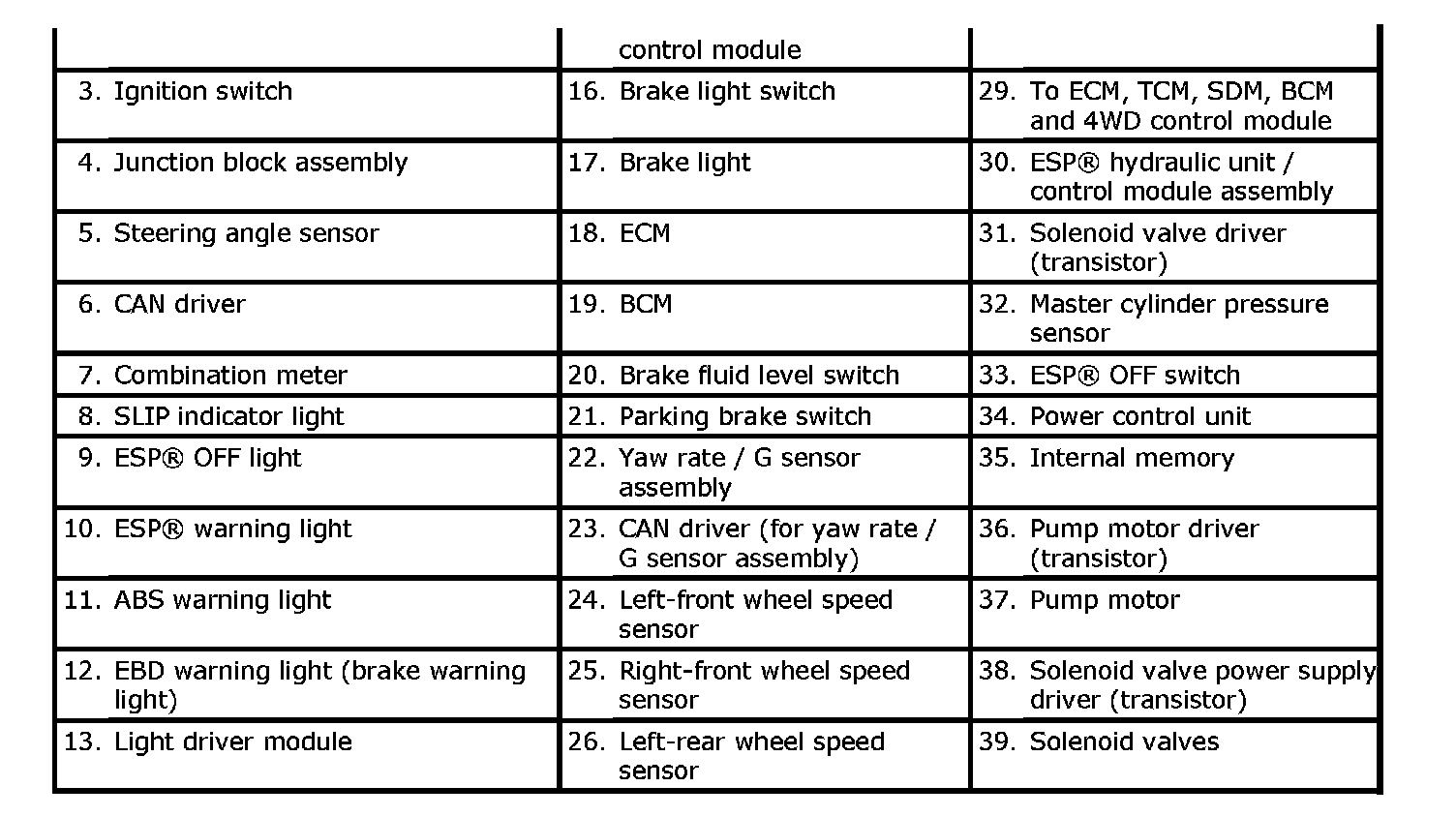

Electronic Stability Program Wiring Circuit Diagram
Electronic Stability Program Wiring Circuit Diagram
Electronic Stability Program Wiring Circuit Diagram
