Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Suzuki Truck
>>
2008
>>
Grand Vitara 2WD V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
G Connectors
G Connectors

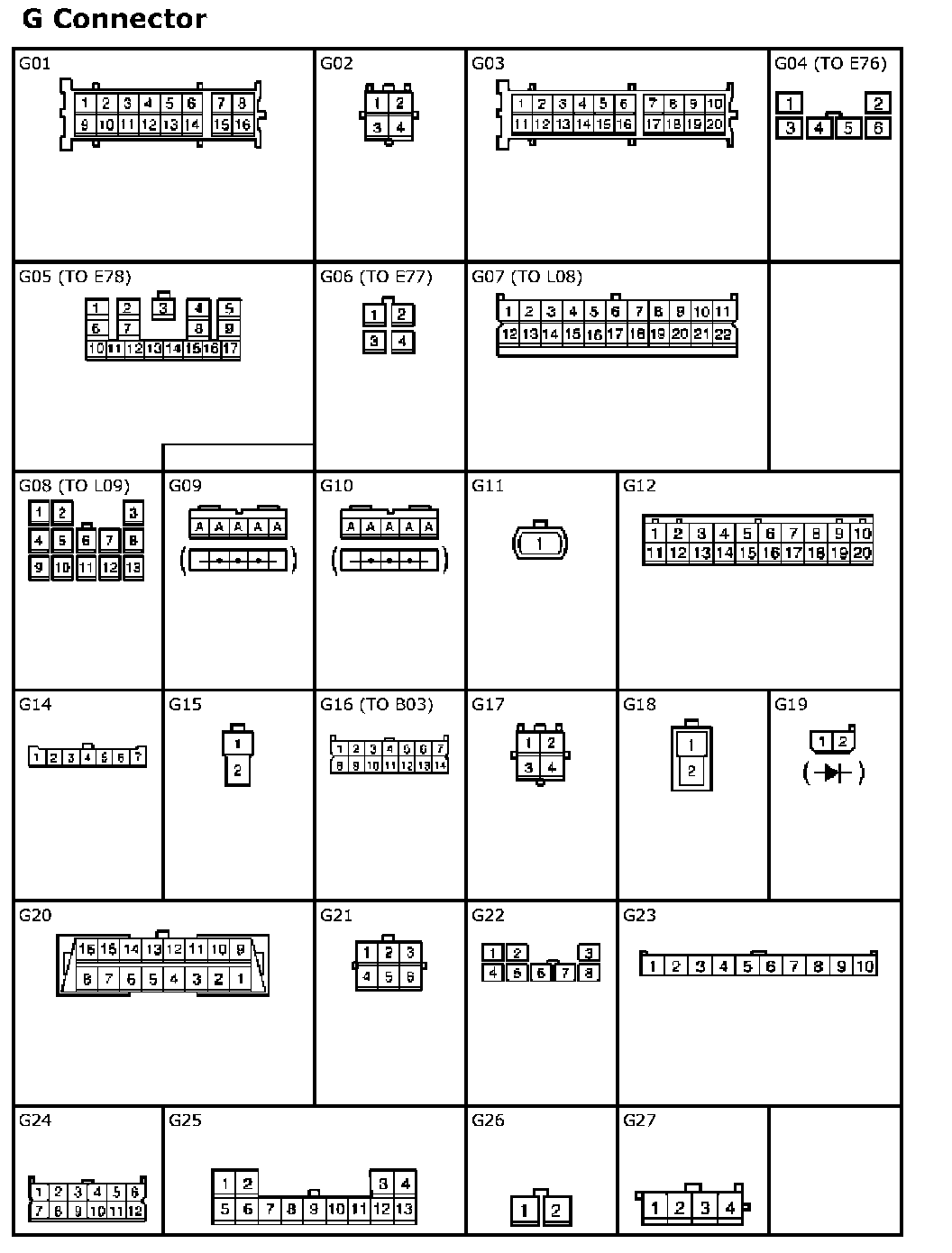

G01 - G27:

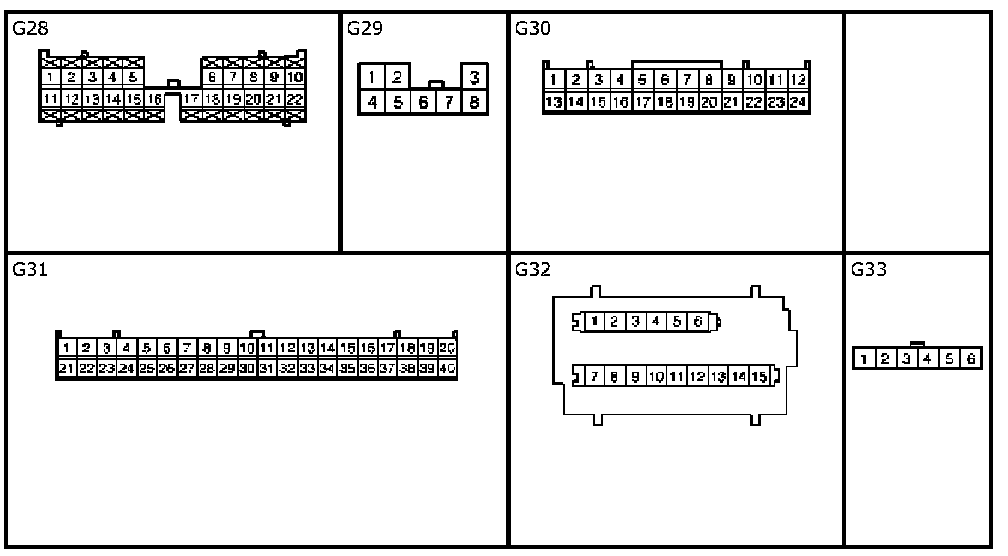

G28 - G33:

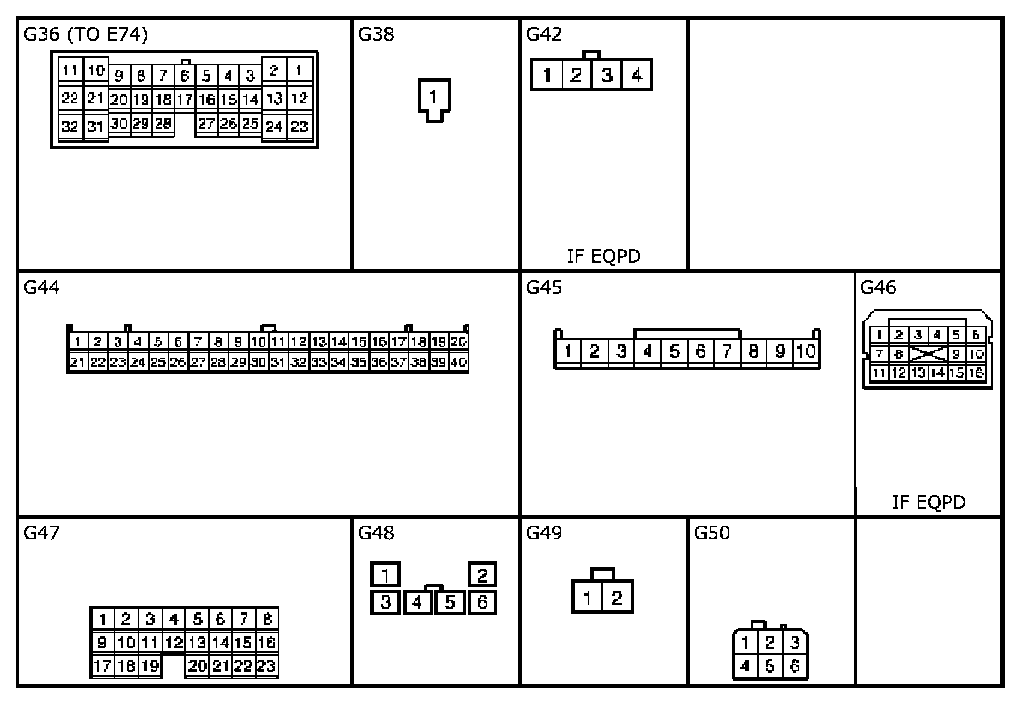

G36 - G50:
G52 - G77:

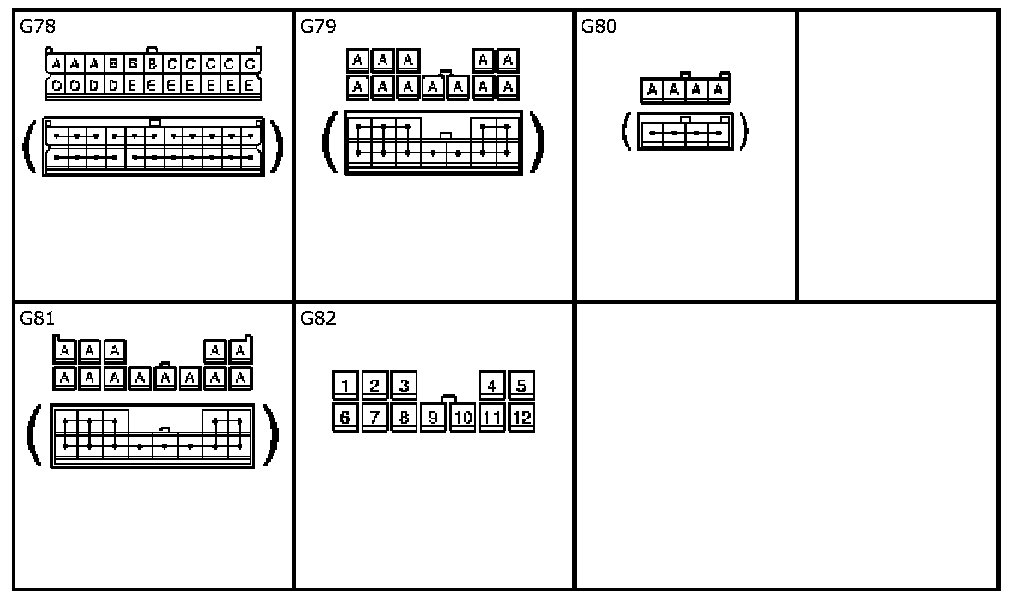

G78 - G82:
