Home
>>
Suzuki Truck
>>
2008
>>
Grand Vitara 2WD V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C Connectors
C Connectors

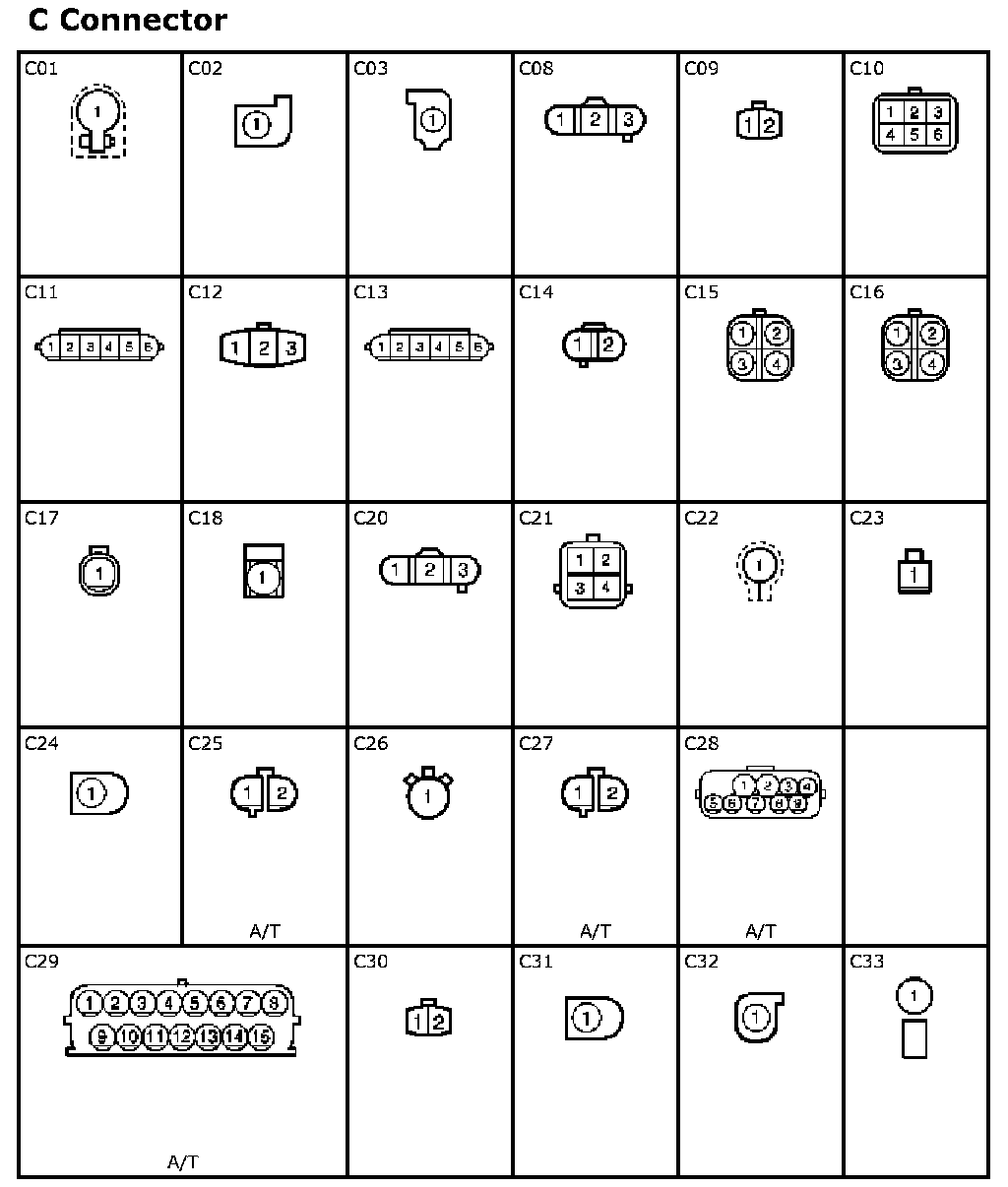

C01 - C33:
C34 - C36:

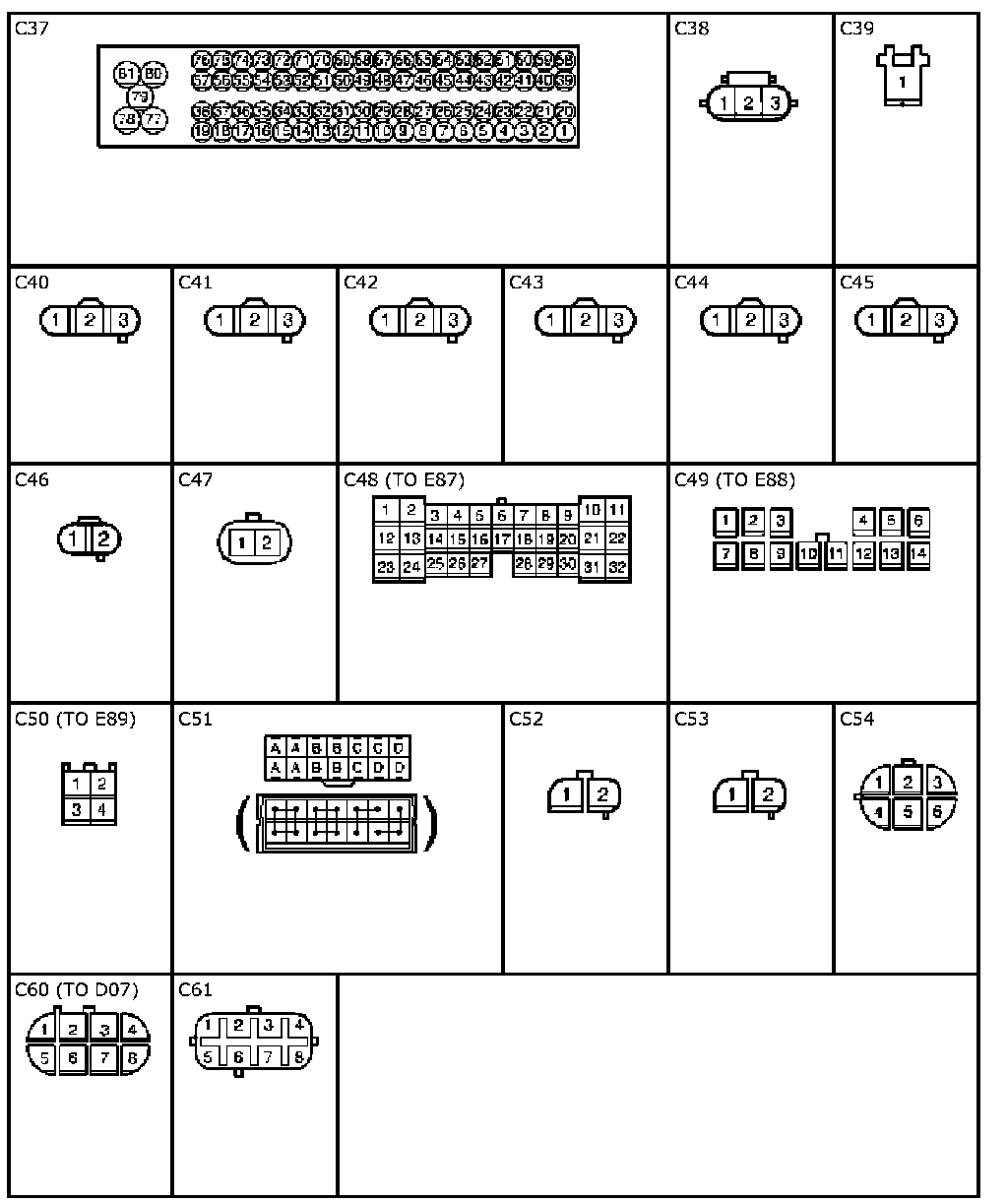

C37 - C61:
