CAN Communication System Description

CAN Communication System Description
ESP(R) control module communicates control data with each control module as follows.

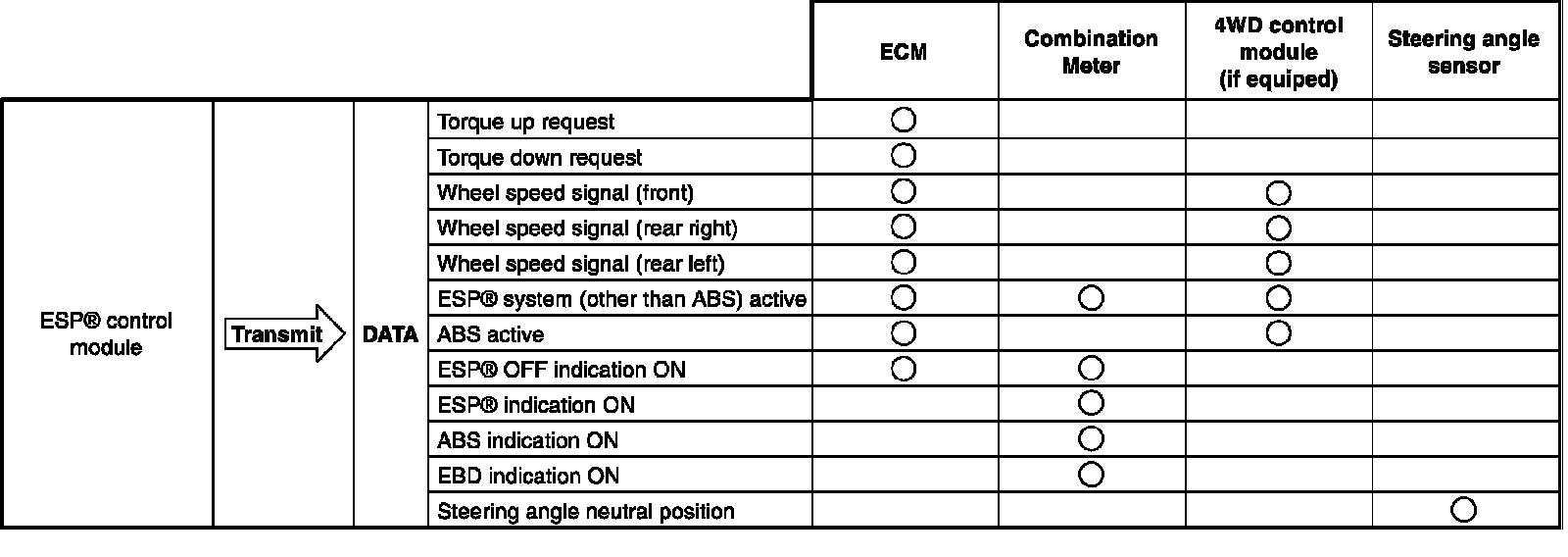

ESP(R) Control Module Transmission Data

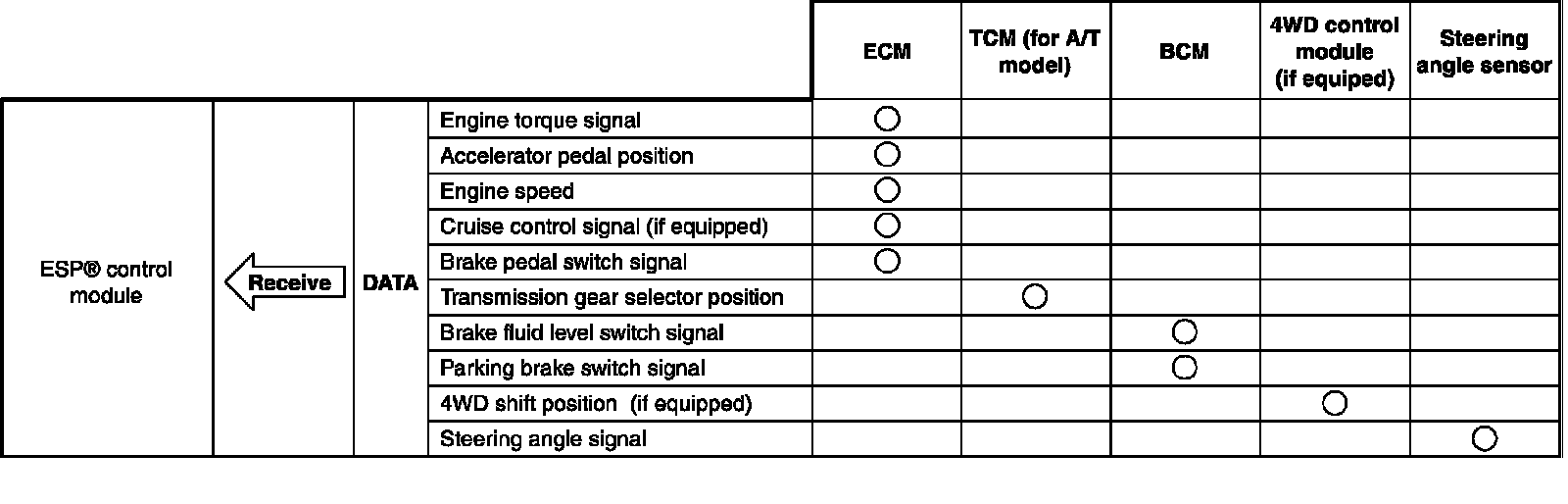

ESP(R) Control Module Reception Data
