Front Seat

FRONT SEAT REMOVAL AND INSTALLATION

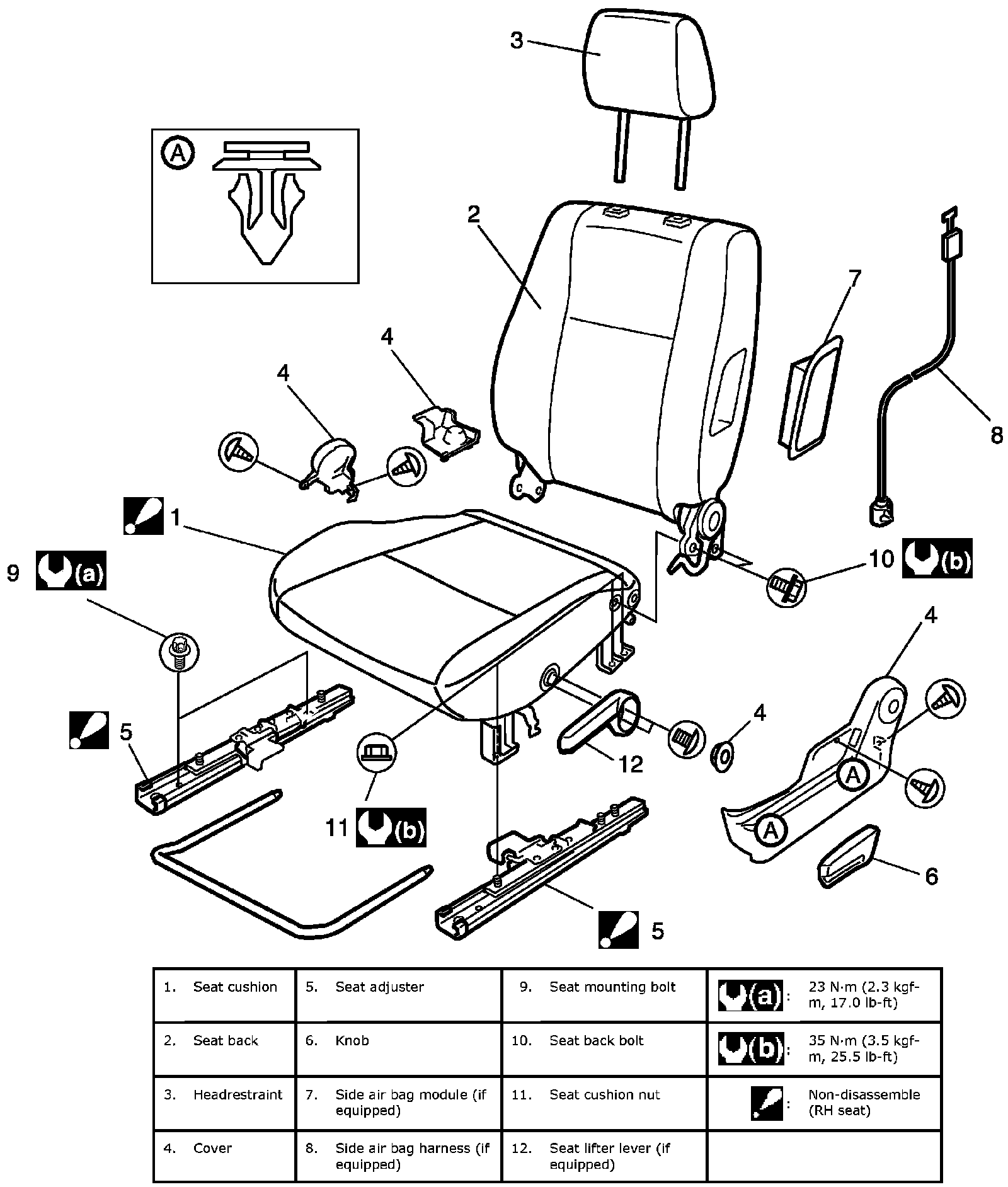

Front Seat Components:

Reference: Front Seat Components

WARNING: Do not disassemble seat cushion and adjuster of RH passenger seat since sensors for occupant classification system are equipped. Disassembling the seat cushion and adjuster may cause improper airbag deployment.

Removal
1. Disable air bag system.
2. Disconnect seat harness coupler, seat heater coupler and side air bag coupler, if equipped.
3. Remove 4 mounting bolts to remove seat assembly.
4. Disassemble and repair seat as necessary.

Installation
Reverse removal procedure to install front seat.
^ Torque to specifications as shown in Front Seat Components.
^ Enable air bag system.
