Front Fender: Service and Repair

FRONT FENDER REMOVAL AND INSTALLATION

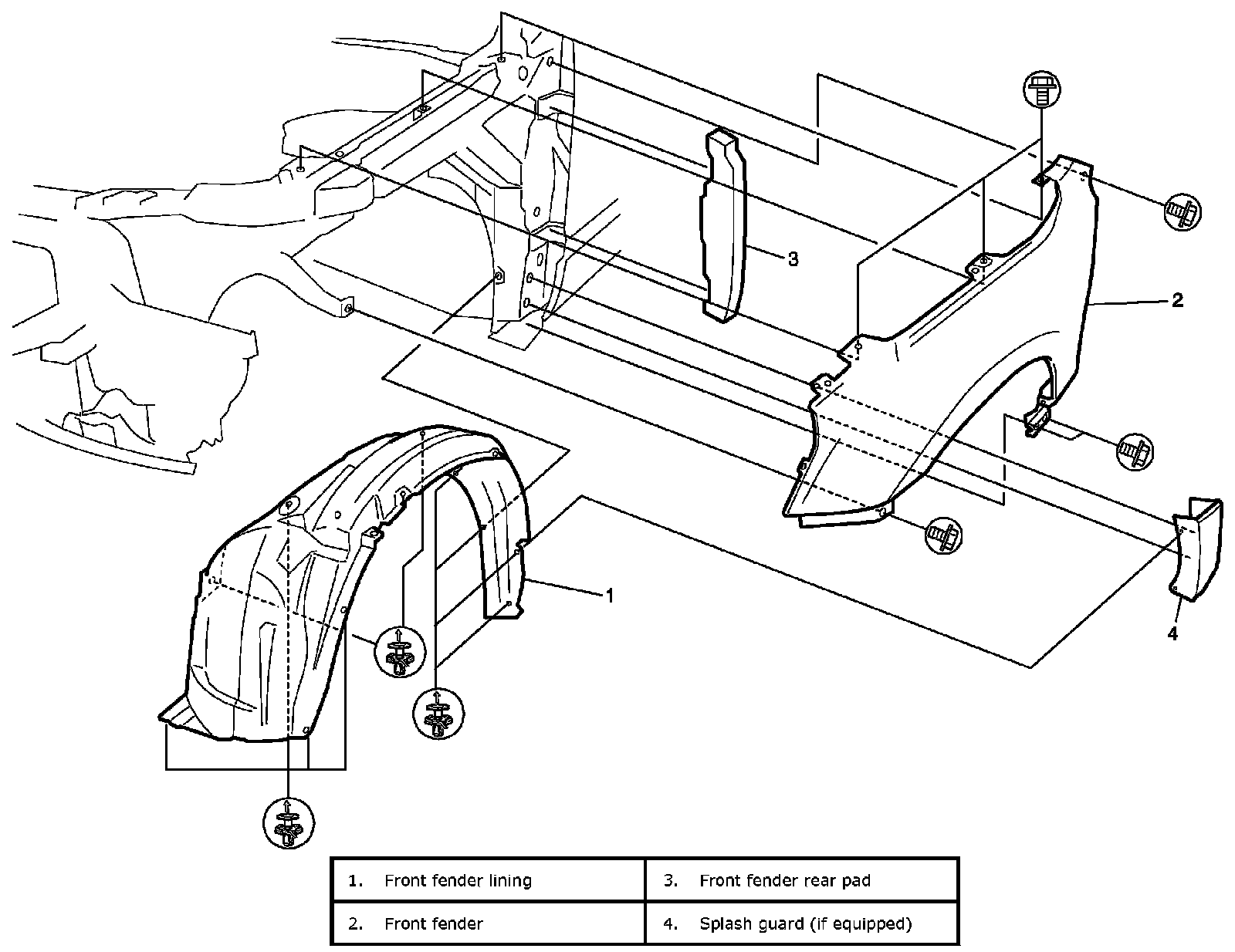

Front Fender Components:

Reference: Front Fender Components

Removal
1. Remove splash guard (if equipped) referring to Splash Guard Removal and Installation (If Equipped).
2. Remove front fender lining.
3. Remove front bumper referring to Front Bumper Components.
4. Remove headlight assembly referring to Headlight Housing Removal and Installation.
5. Remove cowl top garnishes referring to Cowl Top Components
6. Remove front fender.

Installation
Reverse removal procedure to install front fender noting the following instruction.
^ If paint on fender bolt is peeled off, be sure to apply paint again.
^ Adjust panel clearance referring to Panel Clearance.
