Seat Belt Buckle Switch: Testing and Inspection

SEAT BELT BUCKLE SWITCH INSPECTION

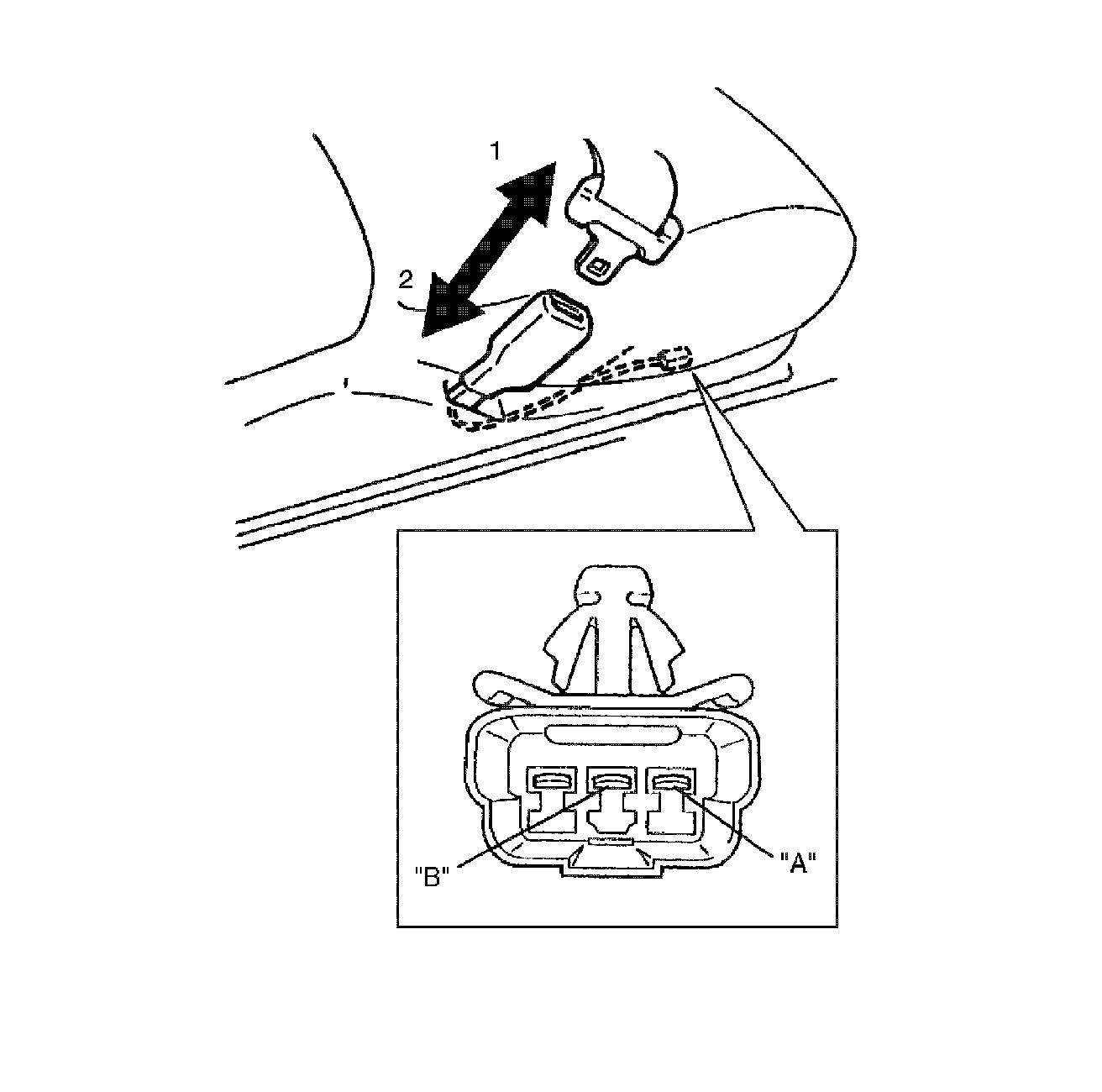

Check continuity between seat belt buckle switch terminal "A" and "B" at the following condition. If seat belt buckle switch does not follow the above condition, replace seat belt buckle switch.

Seat belt buckle switch specifications
Buckle out (seat belt not fastened) (1): Continuity
Buckle in (seat belt fastened) (2): No Continuity
