Passenger Air Bag (Inflator) Module Removal and Installation
Passenger Air Bag (Inflator) Module Removal and InstallationWARNING:
- Never attempt to disassemble or repair the passenger air bag (inflator) module. If any abnormality is found, be sure to replace it with new one as an assembly.
- Be sure to read Precautions on Service and Diagnosis of Air Bag System:H27 Engine Model (Advanced Air Bag), Precautions on Handling and Storage of Air Bag System Components:H27 Engine Model (Advanced Air Bag) and Precautions on Disposal of Air Bag and Seat Belt Pretensioner:H27 Engine Model (Advanced Air Bag) before starting to work and observe every precaution during work. Neglecting them may result in personal injury or undeployment of the air bag when necessary.
Removal
1. Disconnect negative cable at battery.
2. Disable air bag system. Refer to Disabling Air Bag System:H27 Engine Model (Advanced Air Bag).

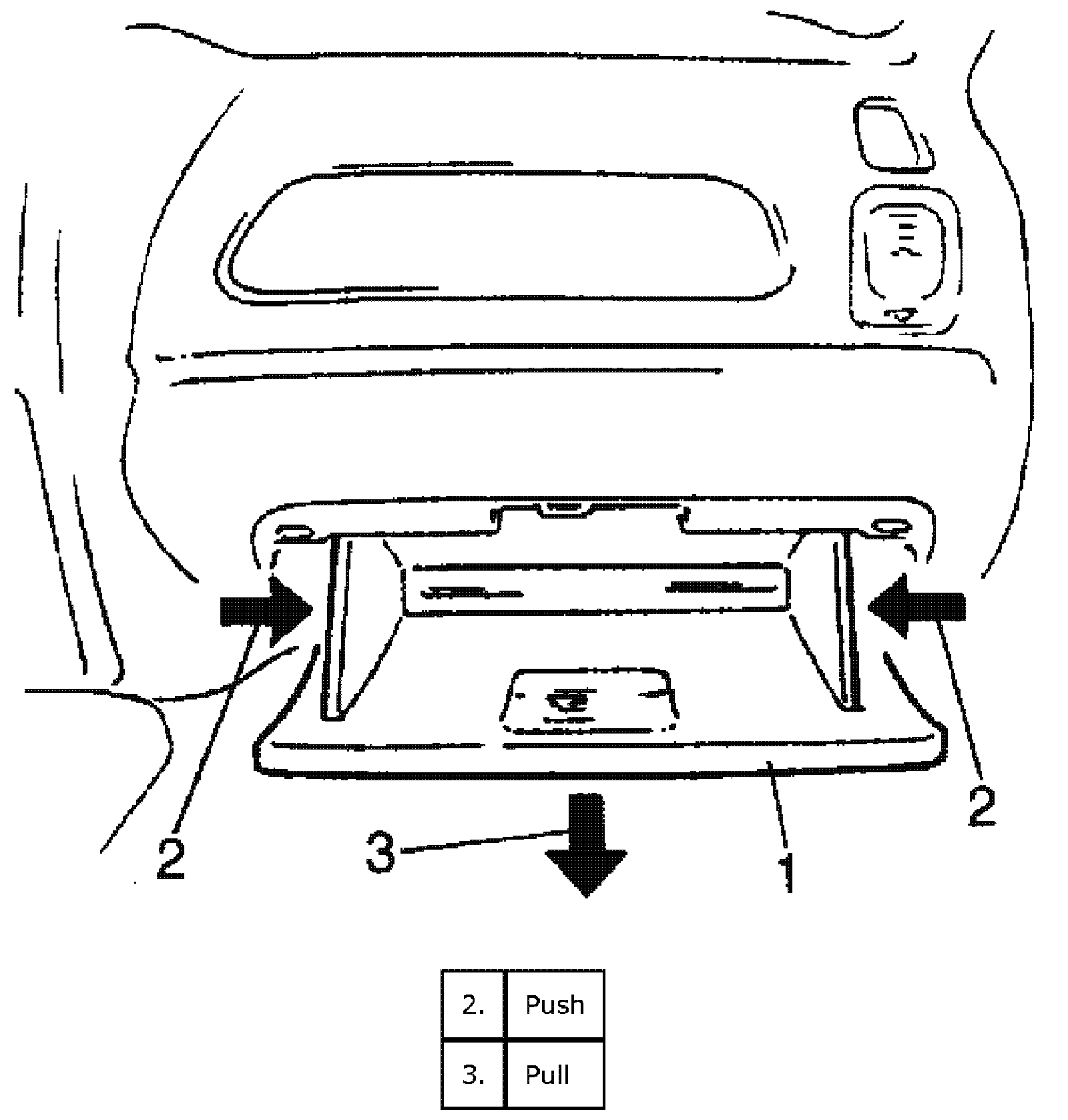

3. Open glove box (1) and disconnect glove box damper from glove box. Then, while pressing glove box stopper, pull out glove box from instrument panel.

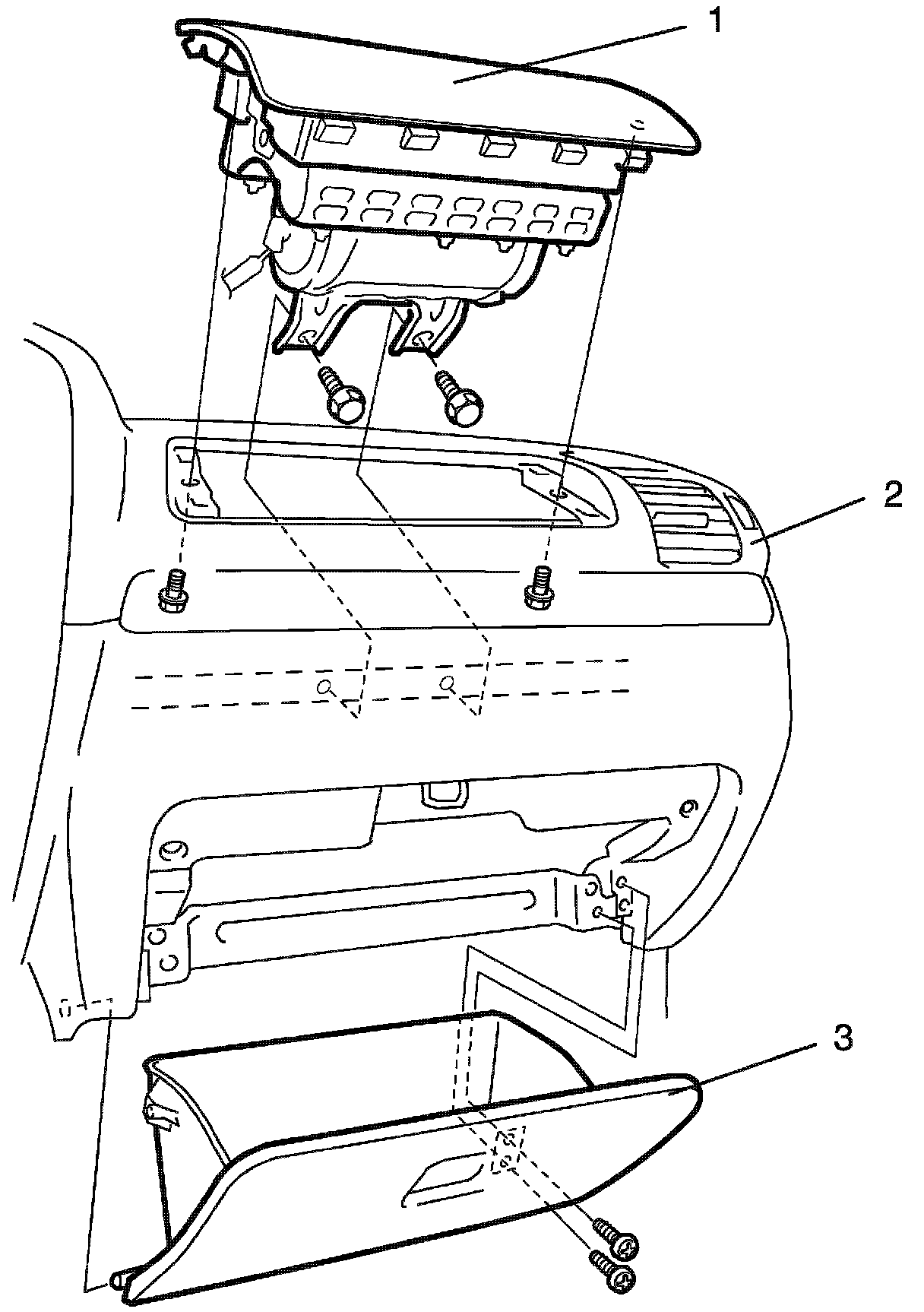

4. Remove glove box (3) from instrument panel (2).
5. Remove passenger air bag (inflator) module bolts and then remove passenger air bag (inflator) module (1) from vehicle.
WARNING:
- When carrying a live air bag (inflator) module, make sure the bag opening is pointed away from you. Never carry air bag (inflator) module by wires or connector on the side of the module. In case of an accidental deployment, the bag will then deploy with minimal chance of injury.
- As the live passenger air bag (inflator) module must be kept with its bag (trim cover) facing up while being stored or left standing, place it on the workbench with a slit facing down or use the workbench vise to hold it securely at its lower mounting bracket. This is necessary so that a free space is provided to allow the air bag to expand in the unlikely event of accidental deployment.
- Observe Precautions on Handling and Storage of Air Bag System Components:H27 Engine Model (Advanced Air Bag) for handling and storing it.
Otherwise, personal injury may result.
Installation
Reference: Passenger Air Bag (Inflator) Module Inspection:H27 Engine Model (Advanced Air Bag)

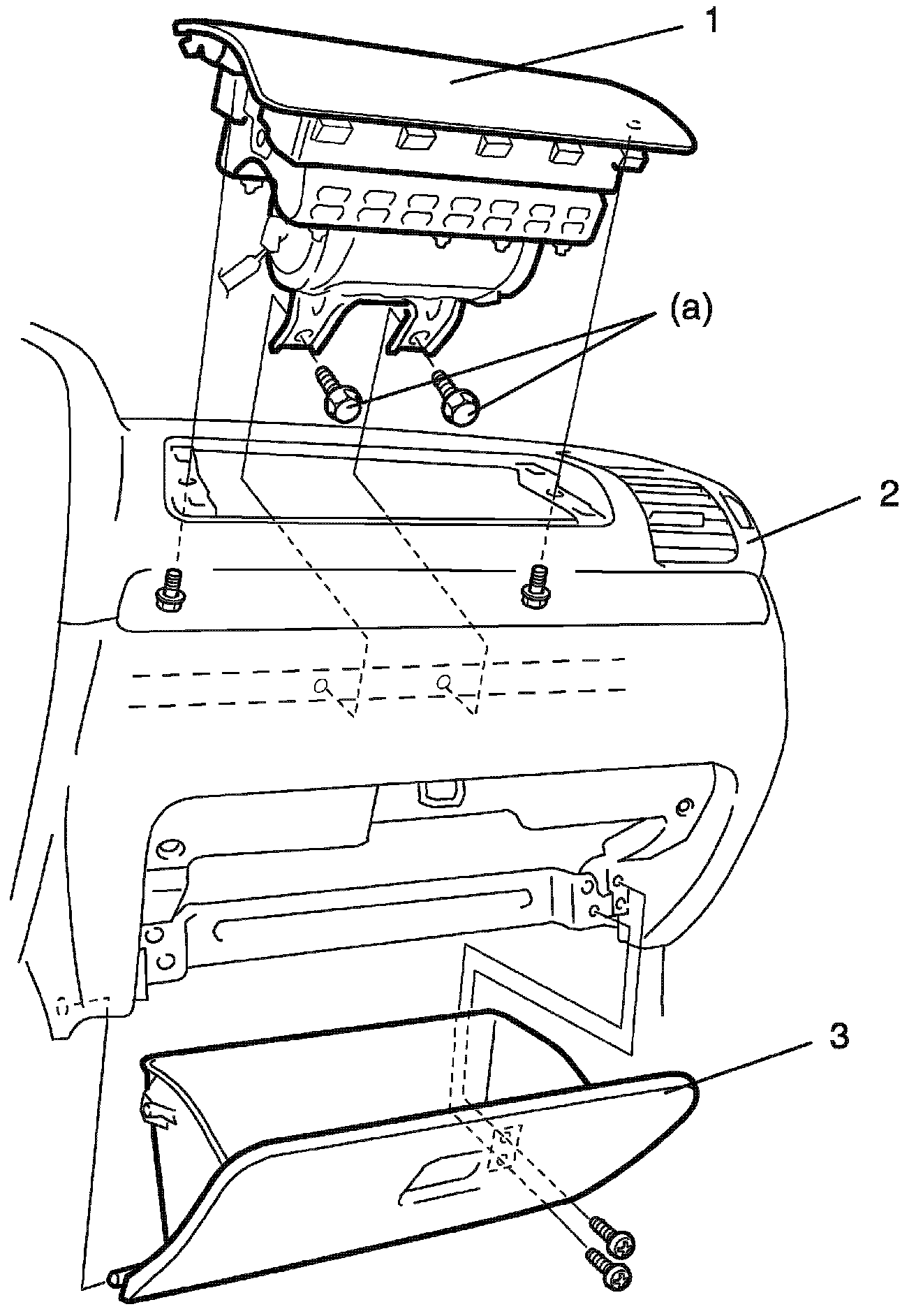

1. Install passenger air bag (inflator) module (1) to vehicle.
2. Tighten passenger air bag (inflator) module bolts to specified torque.
Tightening torque
Passenger air bag (inflator) module bolt a: 23 N-m (2.3 kg-m, 17.0 lb-ft)
3. Install glove box (3) to instrument panel (2) and then connect glove box damper to glove box.
4. Connect negative cable to battery.
5. Enable air bag system. Refer to Enabling Air Bag System:H27 Engine Model (Advanced Air Bag).
