Positive Crankcase Ventilation Valve: Service and Repair
PCV ValveRemoval
1. Disconnect PCV hose from PCV valve.
2. Remove PCV valve from cylinder head cover.
Installation

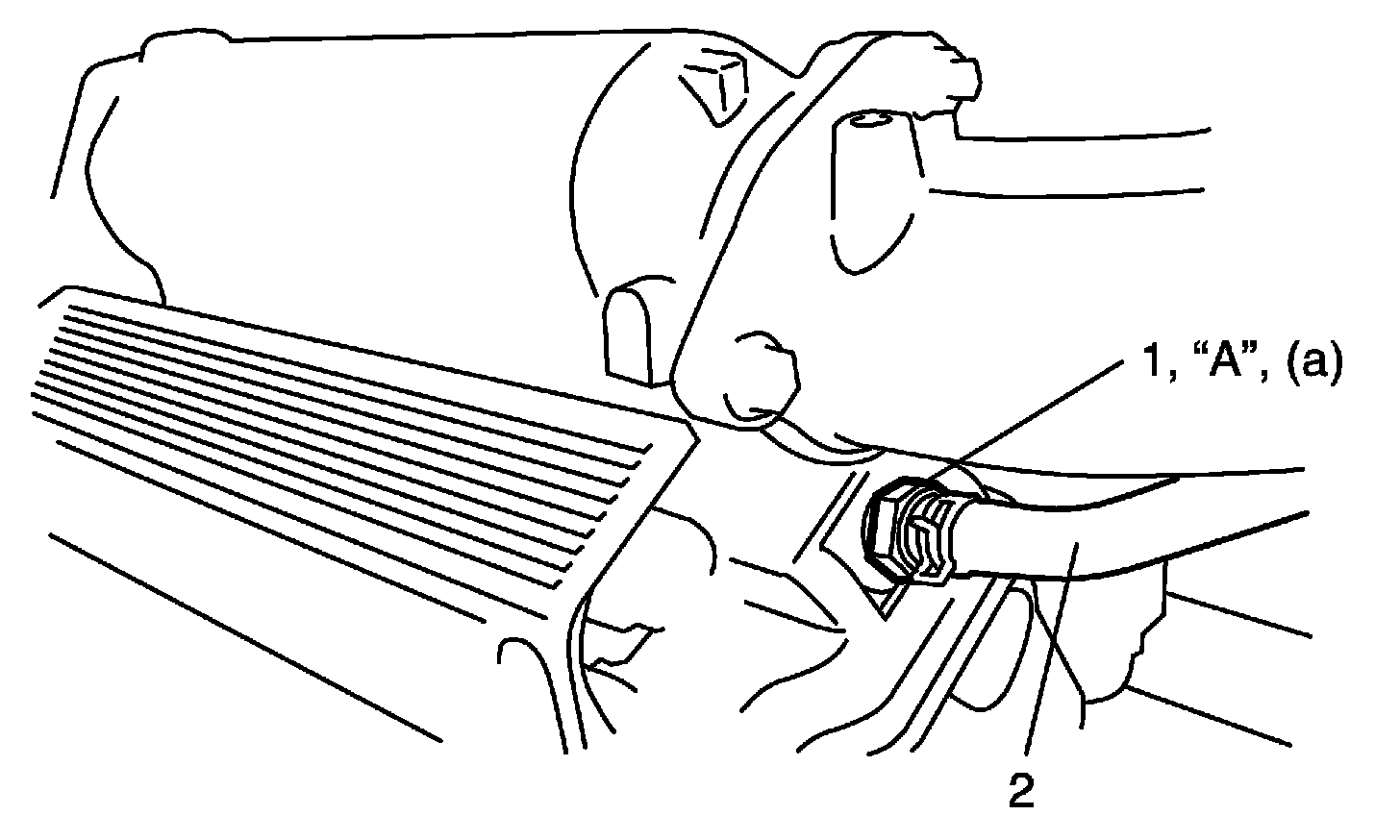

1. Apply sealant to thread part of PCV valve (1).
"A": Water tight sealant 99000-31250
2. Install PCV valve (1) onto cylinder head cover.
Tightening torque
PCV valve a: 27 N.m (2.7 kg-m, 19.5 lb.ft)
3. Connect PCV hose (2) to PCV valve (1).
