PCV Valve Hose: Service and Repair

PCV Valve Removal and Installation

Removal
1. Disconnect PCV hose from PCV valve.
2. Remove PCV valve from cylinder head cover.

Installation

Reference: PCV Valve Inspection:H25 Engine

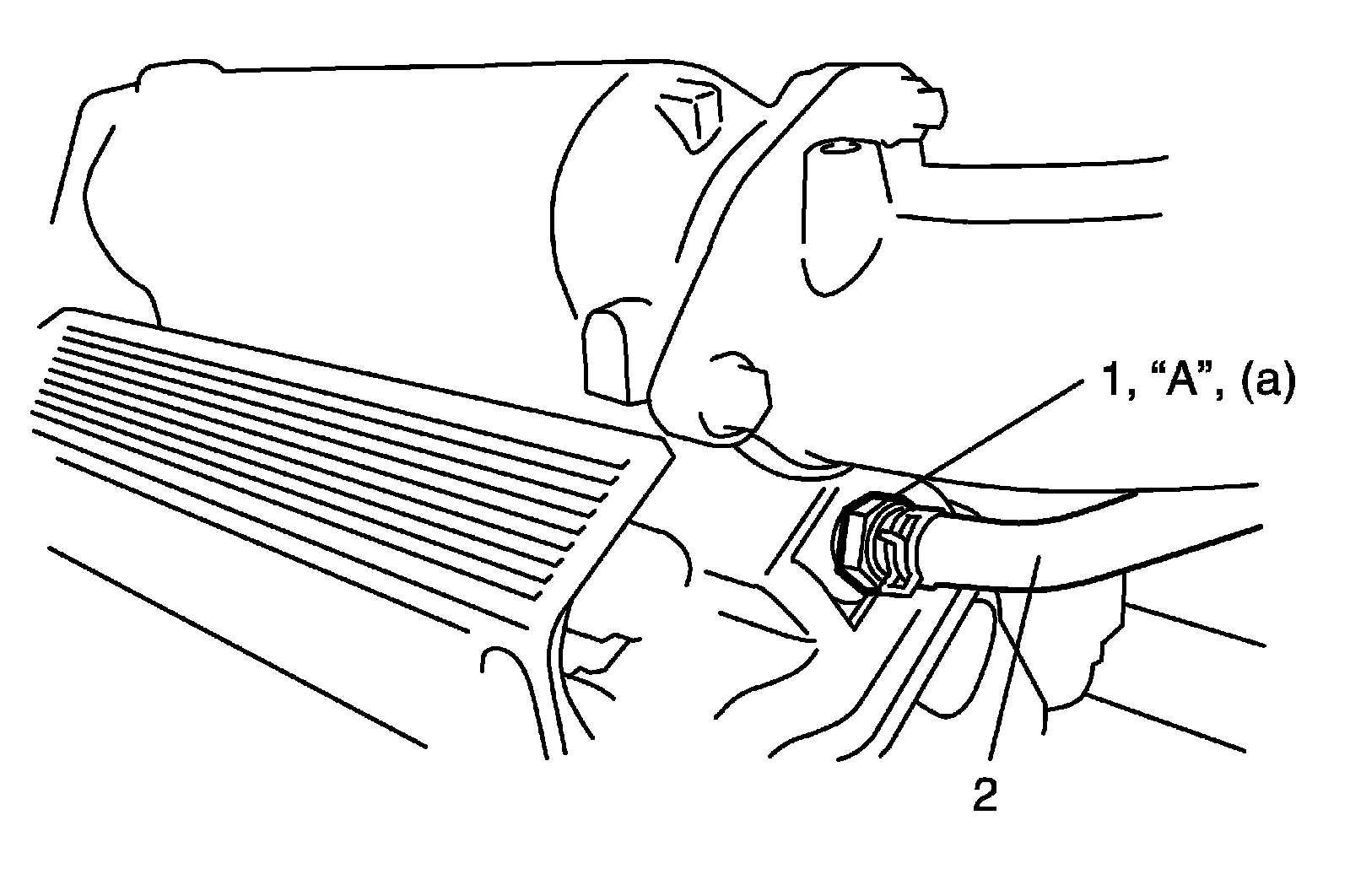

1. Apply sealant to thread part of PCV valve (1).
"A": Water tight sealant 99000-31250

2. Install PCV valve (1) onto cylinder head cover.

Tightening torque
PCV valve a: 27 N.m (2.7 kg.m, 19.5 lb.ft)

3. Connect PCV hose (2) to PCV valve (1).
