Cabin Air Filter / Purifier: Locations

A/C Cabin Air Filter


Removal

1) Disconnect negative (-) cable at battery
2) Open glove box, then remove screw.
3) Remove glove box.

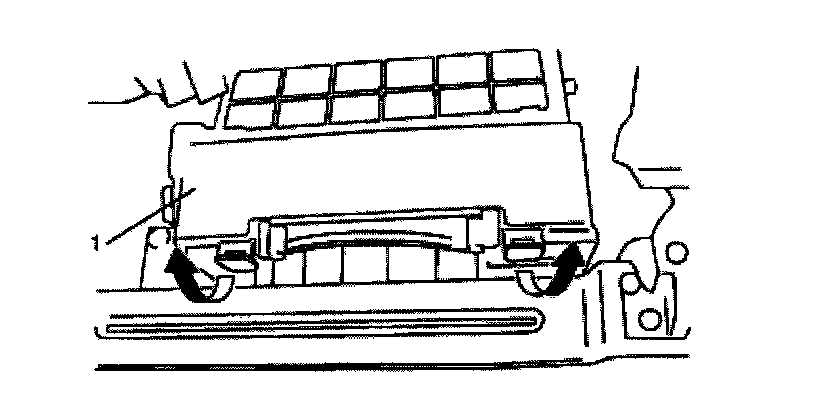

4) Remove filter cover (1).

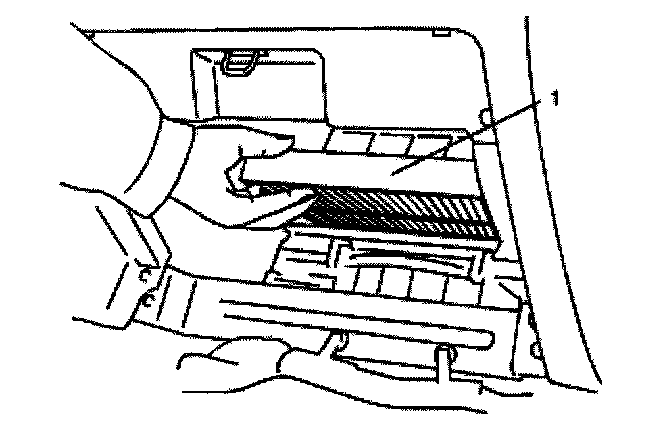

5) Pull out filter element (1).







Installation







Reverse removal procedure for installation noting the followings:

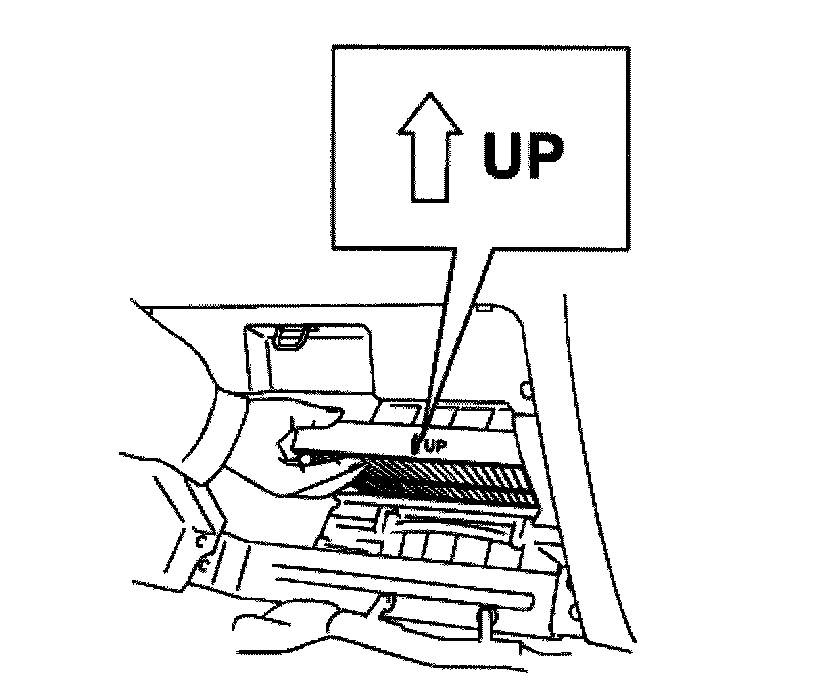

- Install filter into blower unit by paying attention to direction of arrow on filter.
- Enable air bag system after installation of filter.
