Suzuki Truck
>>
2005
>>
XL-7 2WD V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Heating and Air Conditioning
>>
Evaporator Case
Evaporator Case

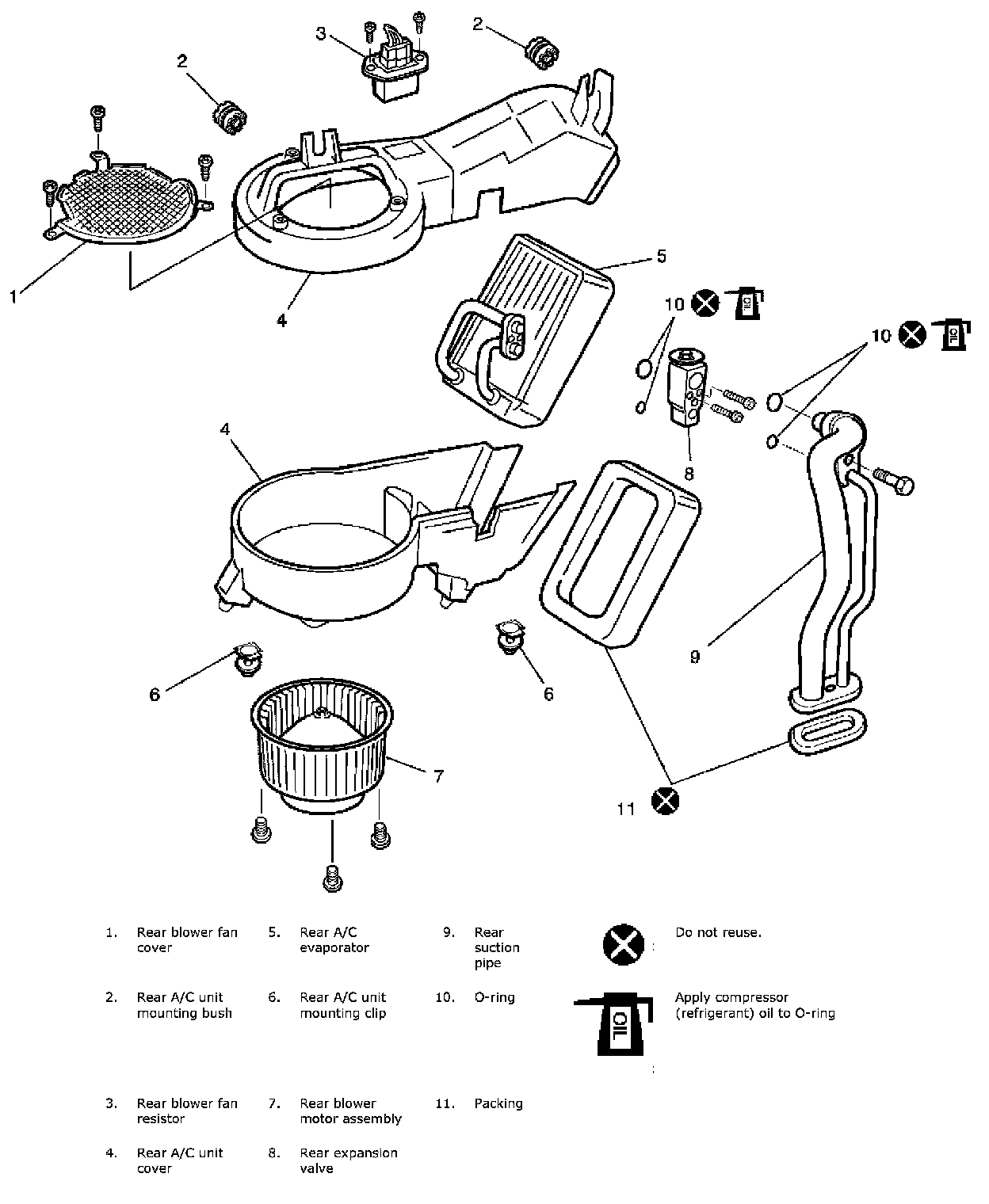

Rear A/C Unit Components:
