Suzuki Truck
>>
2005
>>
XL-7 2WD V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Cylinder Block Assembly
>>
Piston, Piston Rings, Connecting Rods and Cylinders

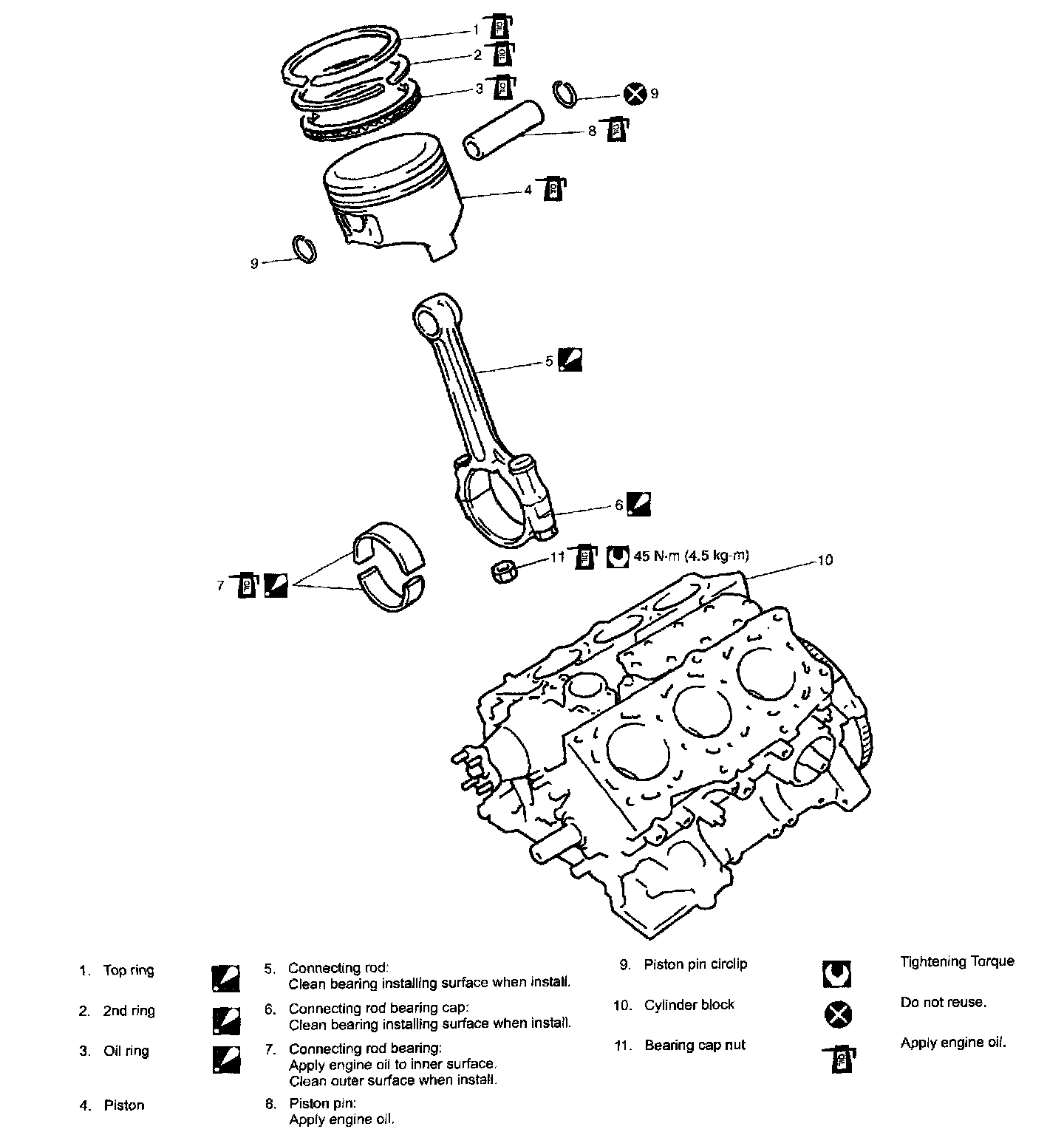

Piston, Piston Rings, Connecting Rods and Cylinders
