Third Seat Removal and Installation

Third Seat Removal and Installation For H27 Engine Model

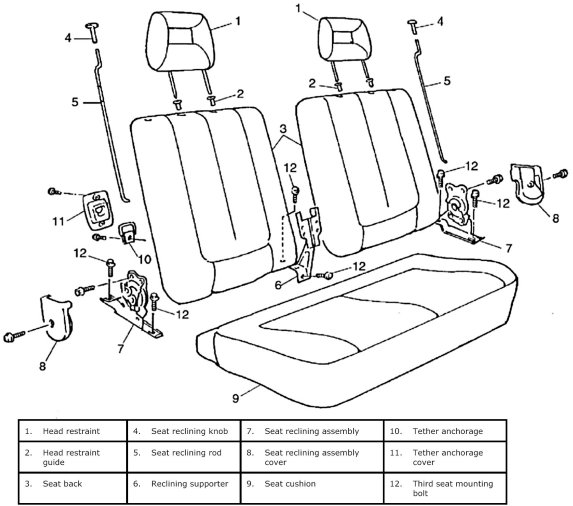

Third Seat Components For H27 Engine Model:

Removal

1. Raise the front portion of seat cushion to remove rear seat cushion.
2. Remove 6 mounting bolts to remove seat back.
3. Disassemble and repair seat if necessary.

Installation

Reverse removal procedure to install rear seat noting the following instruction.
^ Tighten third seat mounting bolts as specified torque.

Tightening torque
Third seat mounting bolts: 35 Nm (3.5 kg-m, 25.5 ft. lbs.)
