Rear Seat Removal and Installation For H25 Engine Model

Rear Seat Removal and Installation For H25 Engine Model

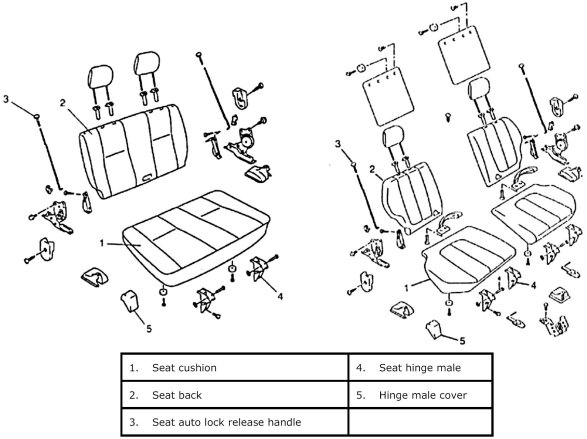

Rear Seat Components For H25 Engine Model:

Removal

1. Remove 4 mounting bolt to remove seat cushion.
2. Remove 4 mounting bolts to remove seat back.
3. Disassemble and repair seat as necessary.

Installation

Reverse removal procedure to install rear seat.
^ Torque to specifications as shown in the figure.

Tightening torque
Rear seat mounting bolt (a): 35 Nm (3.5 kg-m, 25.5 ft. lbs.)
