Headliner: Service and Repair
Head lining Removal and InstallationRemoval

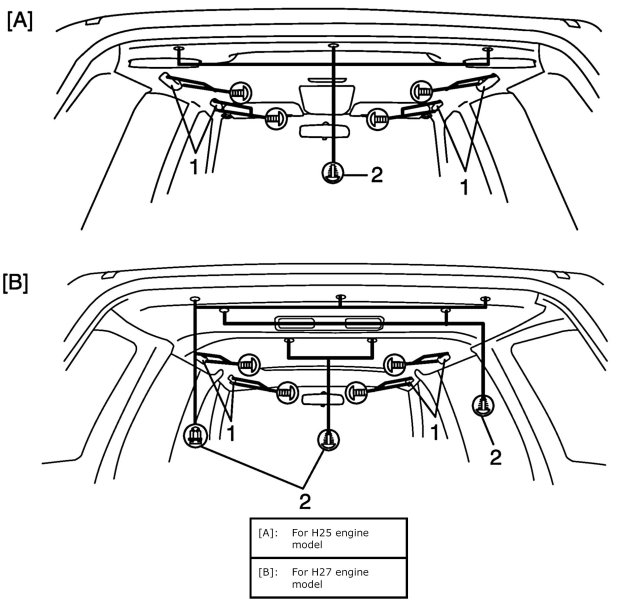

1. Remove overhead console (1) (if equipped) and sunvisor (2).

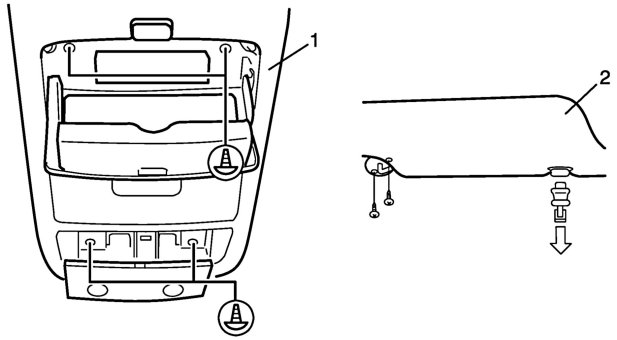

2. Remove room lamp (2), luggage lamp (1) and spot lamp (3) (if equipped).

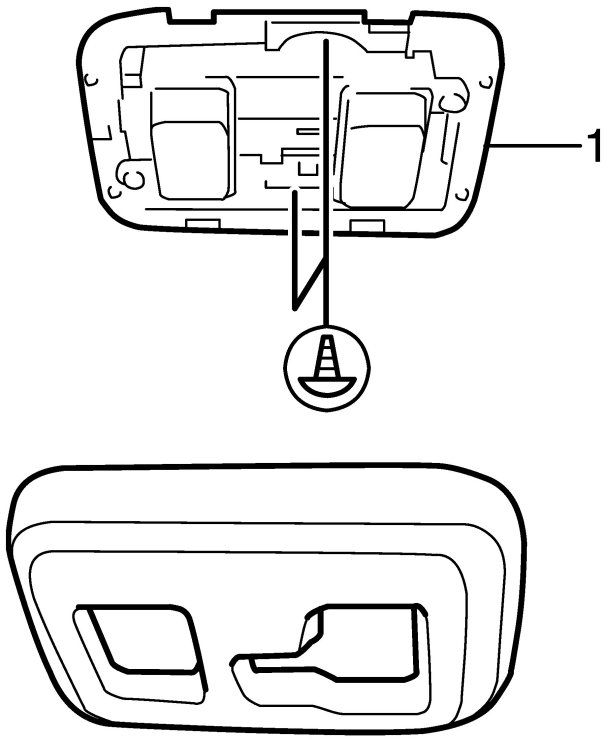

3. Remove sliding roof switch (1) and sliding roof trim (if equipped).

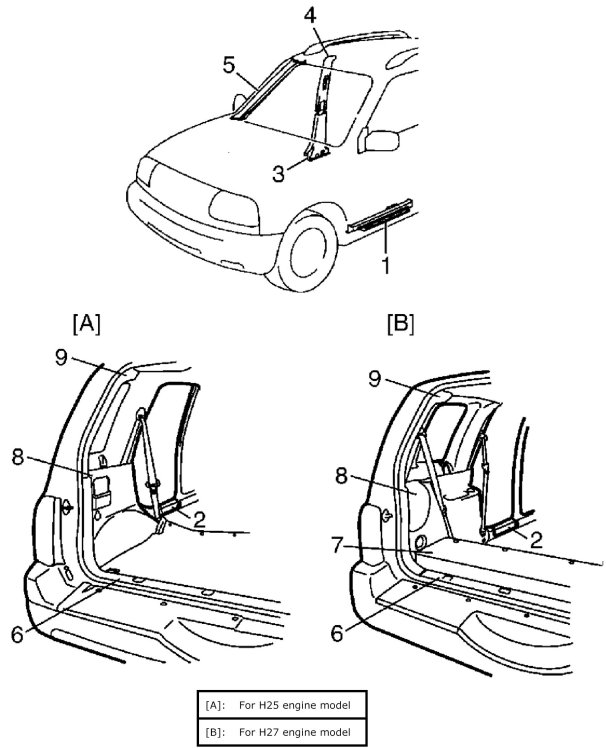

4. Remove front side sill scuffs (1), rear side sill scuffs (2), center pillar lower trims (3), center pillar upper trim (4), front pillar upper trims (5), rear luggage mat end garnish (6), rear luggage box (7) (for H27 engine model), rear quarter lower trims (8) and rear quarter upper trims (9).

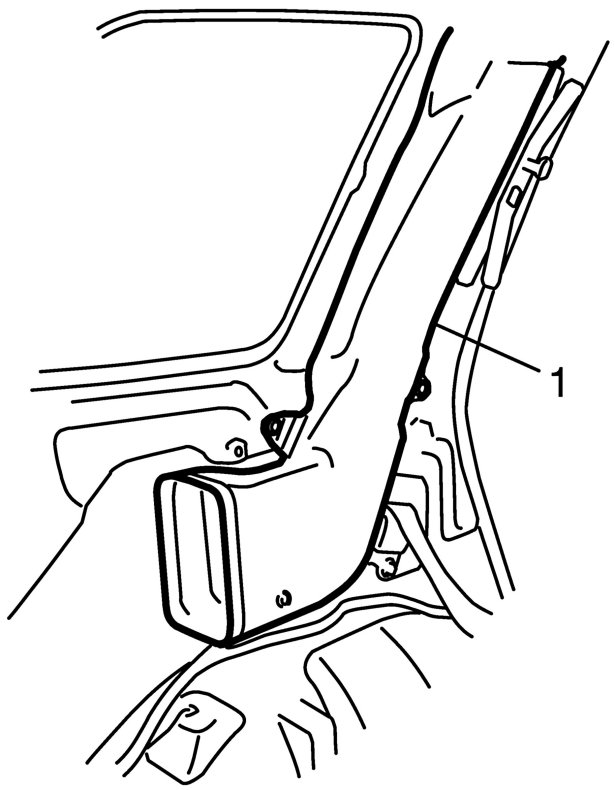

5. Remove rear A/C No.1 duct (1) and rear blower motor switch for H27 engine model.
6. Remove assistant grips (1).
7. Disconnect rear washer hose and roof harness.

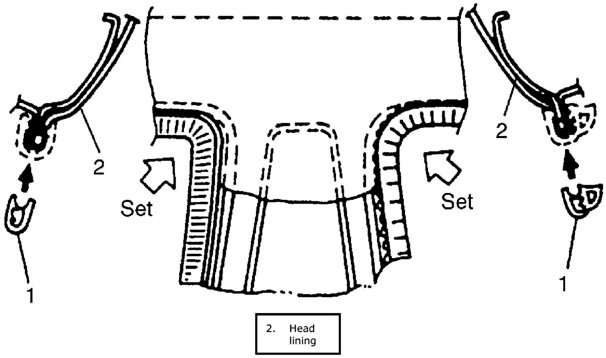

8. Remove head lining clips (2) and head lining.
CAUTION: Do not remove rear A/C No.2 duct (1) from head lining (2). If perform this prohibited service, head lining (2) will be broken, for H27 engine model.
Installation
Reverse removal procedure to install head lining noting the following instructions.

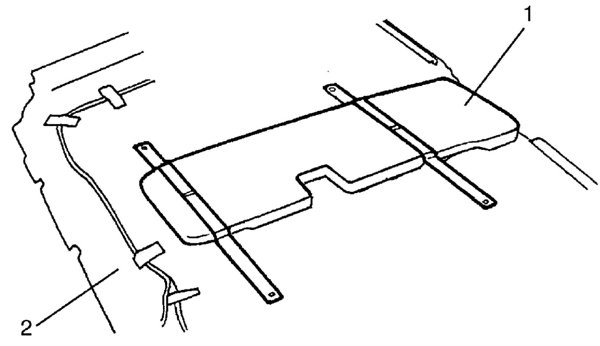

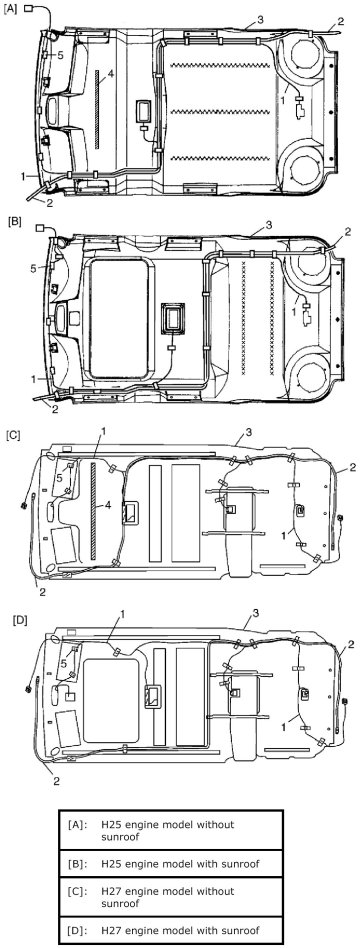

^ Set roof harness (1) and rear washer hose (2) to head lining (3) with adhesive tape (5) as shown.
^ For without sunroof model, apply double coated tape (4) to head lining as shown.
^ Tighten seat belt anchor bolt as specified torque referring to Seat Belt Construction.
^ Install door opening trim (1) as shown.
