Hood: Service and Repair
Hood Removal and InstallationRemoval

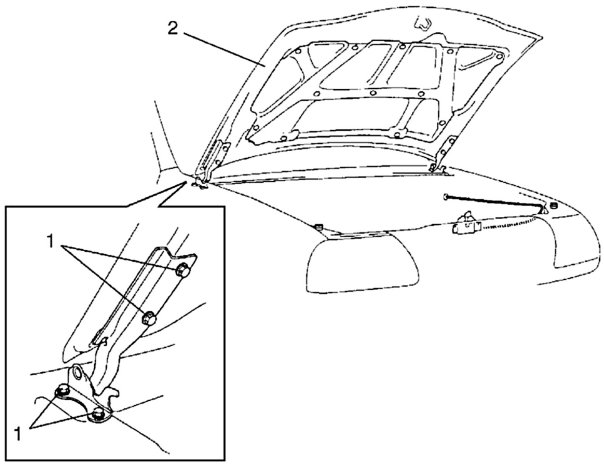

1. Remove window washer hose from hood (2).
2. Remove four mounting bolts (1) to detach hood (2).
Installation
Reverse removal procedure to install hood.
For adjustment head referring to Hood Inspection and Adjustment.
