B1382

DTC B1382 (No. 1382): Driver Seat Belt Buckle Sensor Circuit Short to Power Circuit

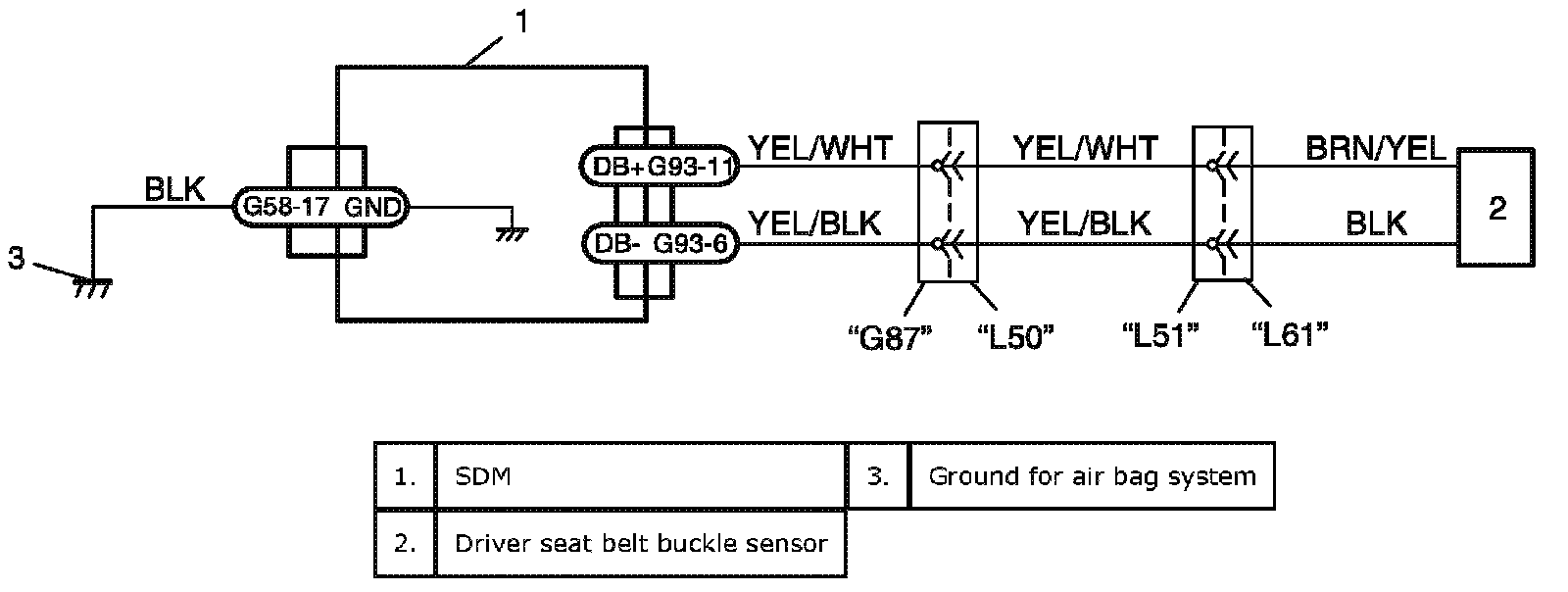

Wiring Diagram:

CAUTION:
- Be sure to perform Air Bag Diagnostic System Check:H27 Engine Model (Advanced Air Bag) before starting diagnosis according to flow. Diagnostic Strategies
- When measurement of resistance or voltage is required in this flow, use a tester along with a correct terminal adapter from special tool (Connector test adapter kit).
- When a check for proper connection is required, refer to Inspection of Intermittent and Poor Connections:H27 Engine Model (Advanced Air Bag). Intermittents and Poor Connections
- If there is open circuit in the air bag wire harness, connector or terminal is found damaged, replace the wire harness, connector and terminal as an assembly.

DTC Will Set when
The voltage measured at driver seat belt buckle sensor circuit (terminal "G93-6", "G93-11") is above a specified value for specified time.

Flow Test Description
Step 1: Check if driver seat belt buckle sensor circuit is shorted to power circuit (in instrument panel and floor harness).
Step 2: Check if driver seat belt buckle sensor circuit is shorted to power circuit (in driver seat harness).
Step 3: Check if malfunction is in driver seat belt buckle sensor.

Step 1 - 3:

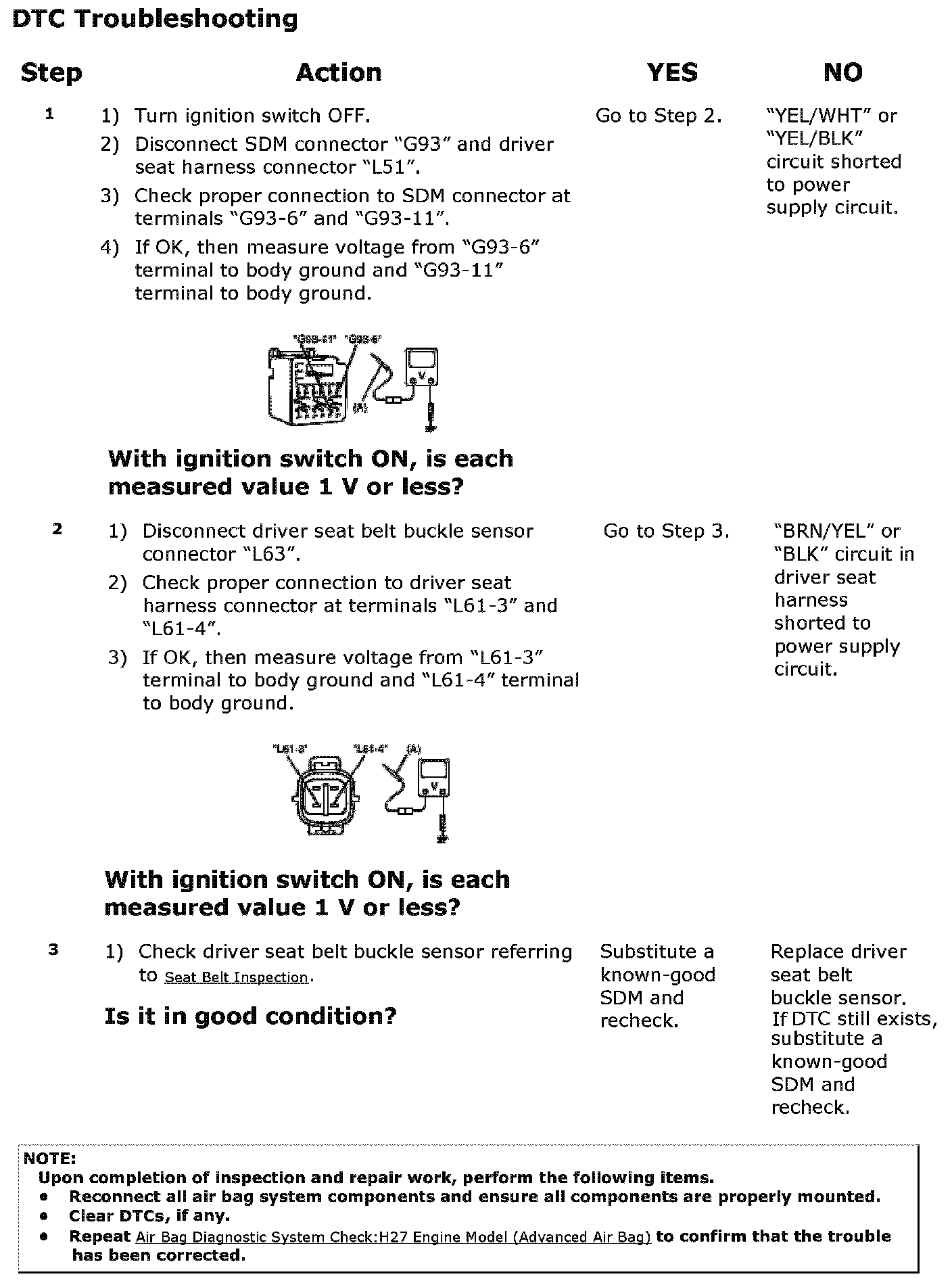

DTC Troubleshooting
