Rear

Rear Wiper and Washer Switch Inspection

Reference: Rear Wiper and Washer Switch Removal and Installation

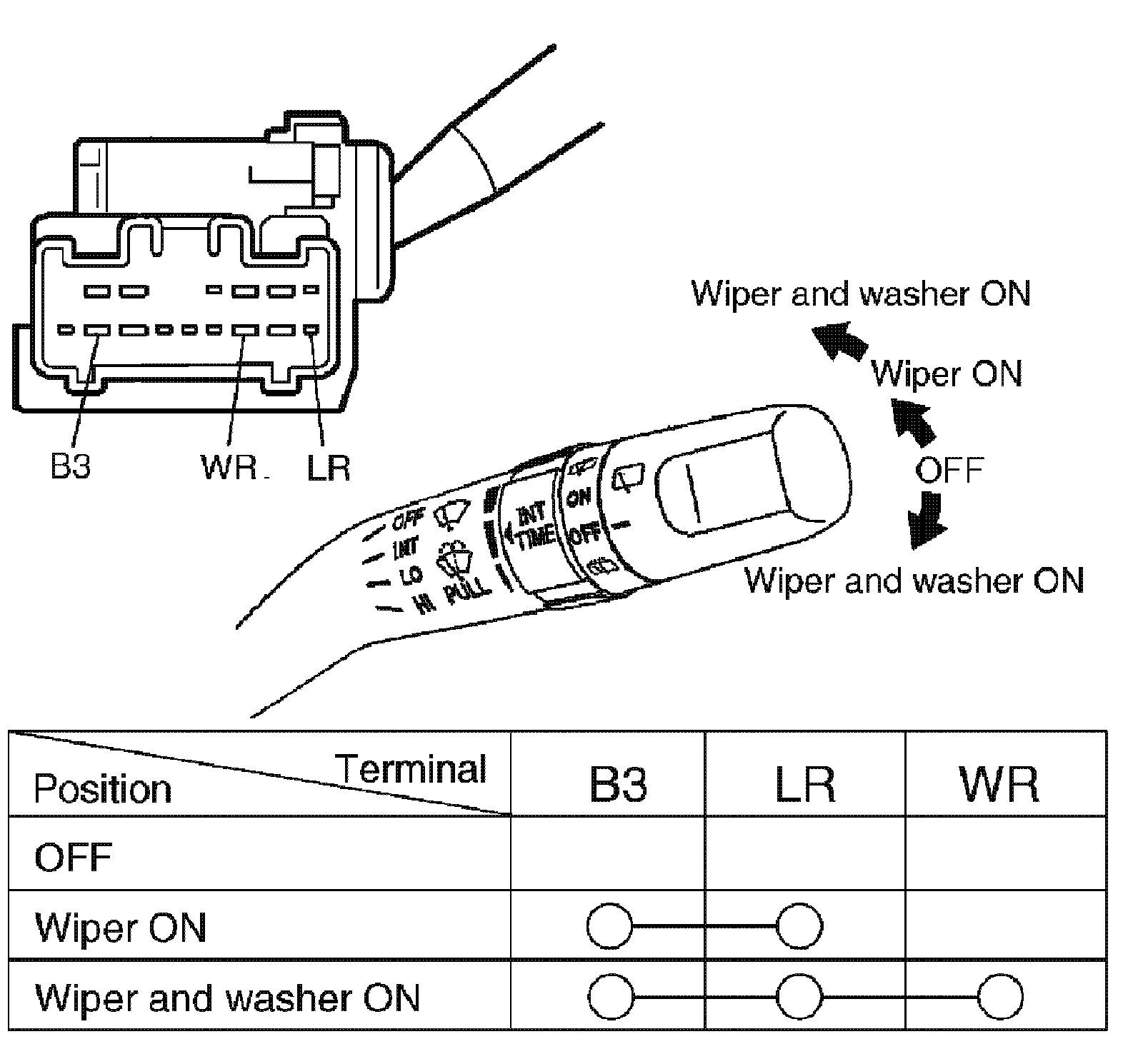

Check for continuity between terminals at each switch position as shown in the following figure. If check result is not as specified, replace.
