Windshield Washer Pump: Testing and Inspection

Washer Pump Inspection (Front and Rear)

Washer Pump Inspection (Front And Rear):

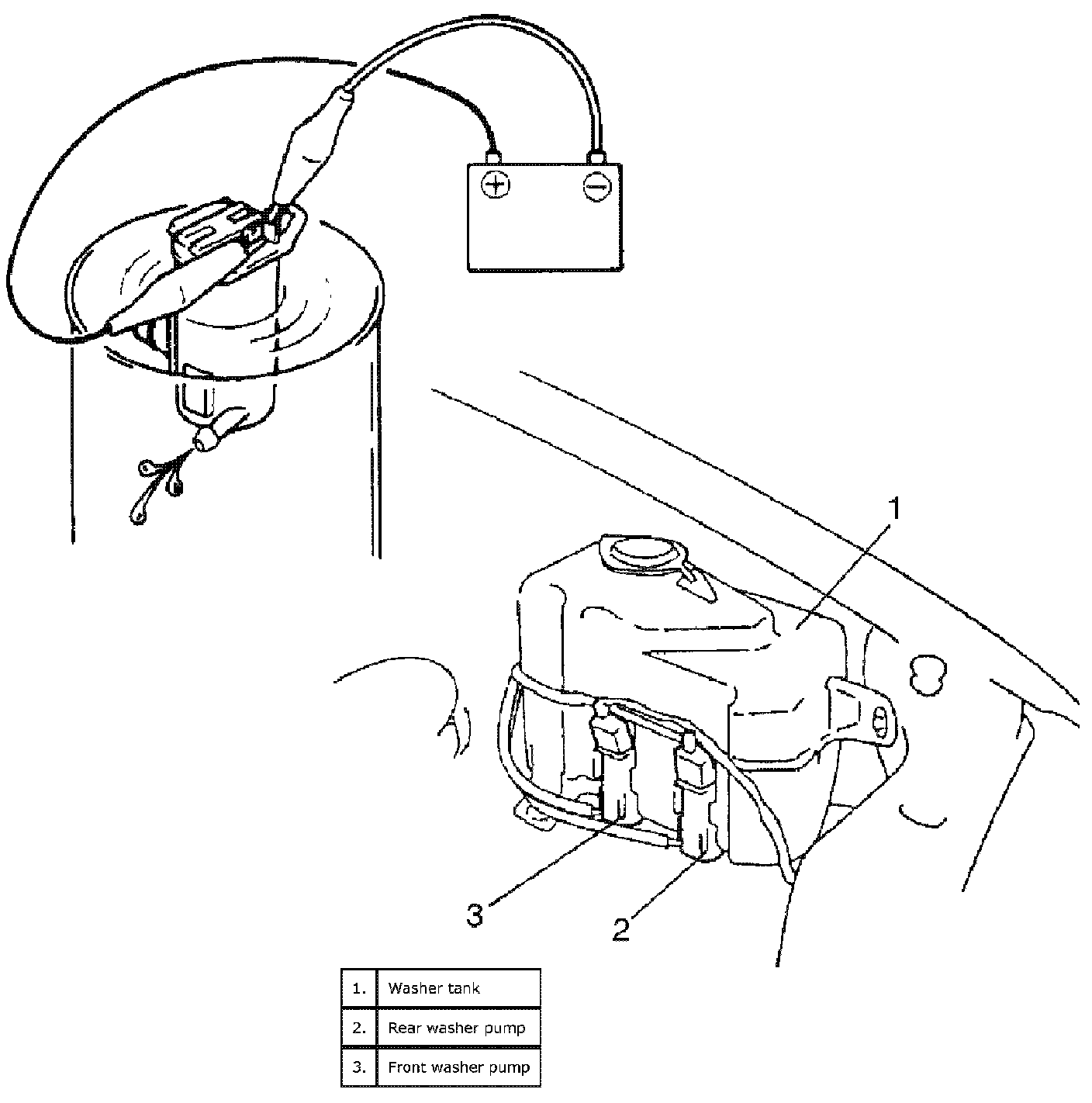

Connect battery (+) and (-) terminals to pump (+) and (-) terminals respectively to check pumping rate.
Check for both front and rear washer pump.

Washer pump pumping rate
Front: More than 1.2 L/min. (2.5 US pt./min., 2.1 Imp pt./min.).
Rear: More than 1.0 L/min. (2.1 US pt./min., 1.8 lmp pt./min.).
