Procedures

Quarter Window Removal and Installation




Refer to Head lining Removal and Installation, Windshield Removal and Installation procedures and cautions are basically the same. However, note the following.

NOTE:

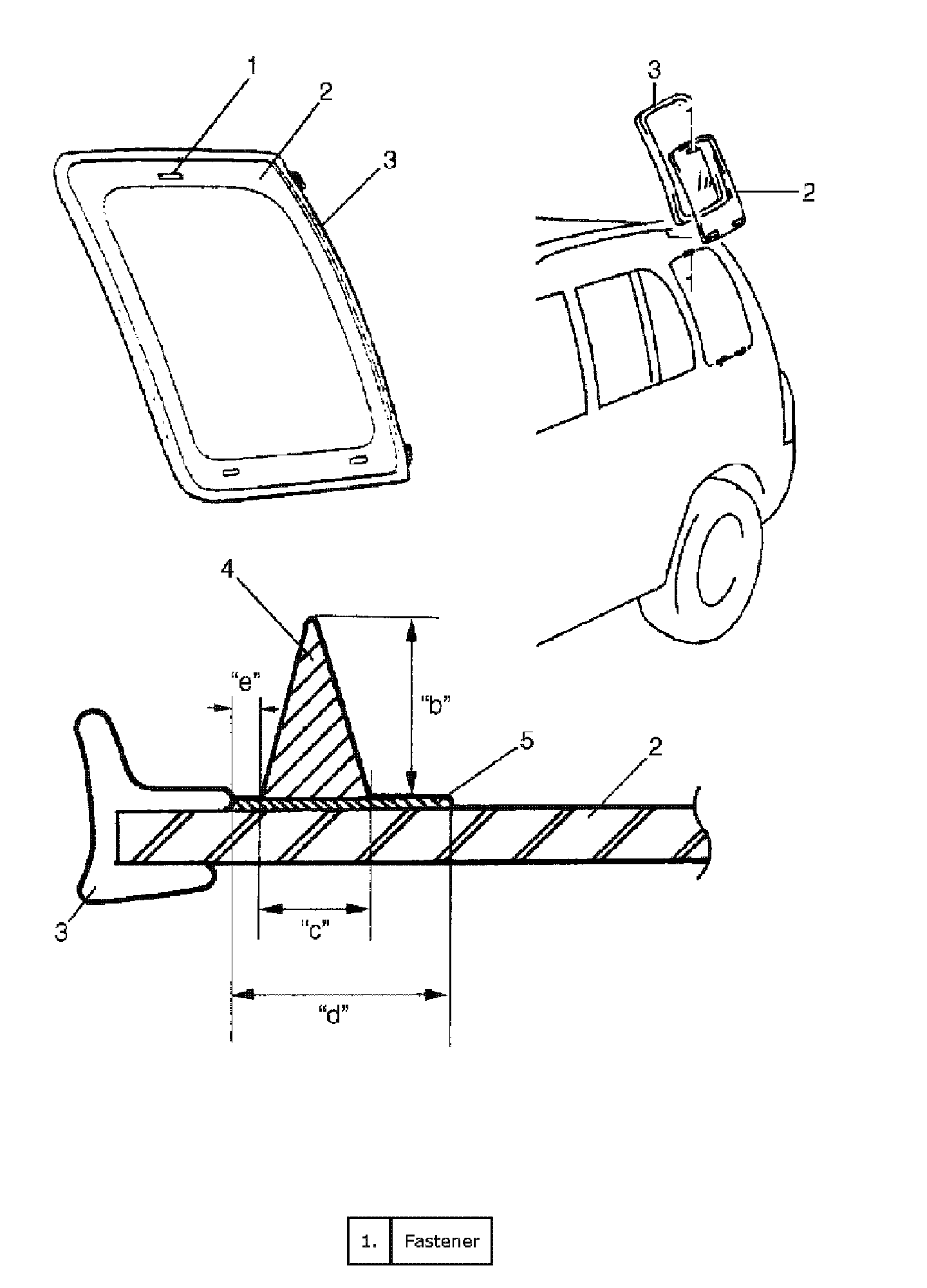

- Before applying primer (5) to glass edge, install molding (3) according to installing position shown in the figure.
- Observe the following precautions when applying adhesive (4) along glass edge.
- Adhesive should be applied evenly especially in height.
- Be careful not to damage primer.
- Press glass (2) against body quickly after adhesive is applied.

Adhesive amount specifications (quarter window)
Height "b": 12 mm (0.47 in.)
Width "c": 8 mm (0.31 in.)
Width "d": 16 mm (0.63 in.)
Clearance "e": 1 mm (0.04 in.)
