Component Tests and General Diagnostics

Fail-Safe Table

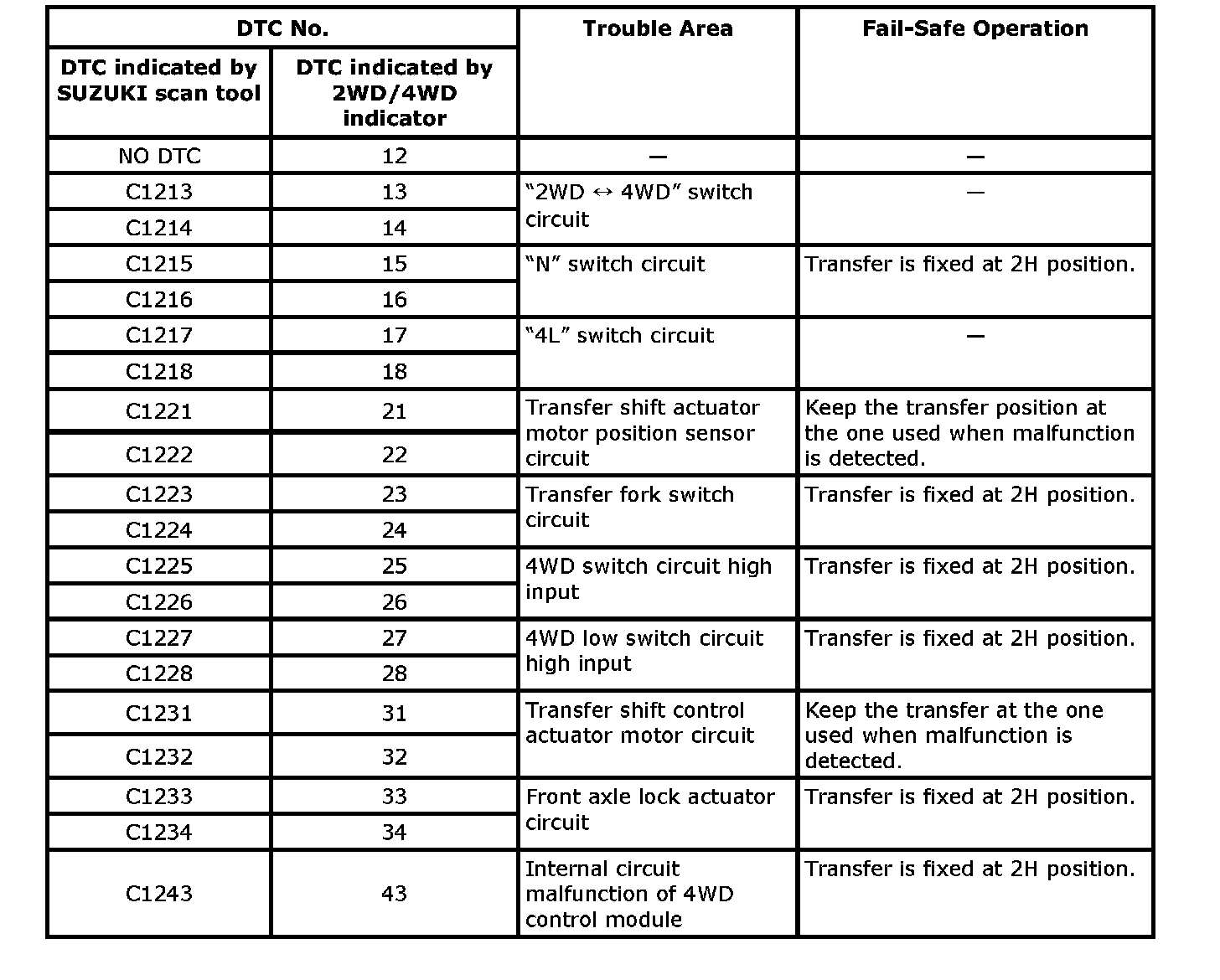

This function is provided by the safe mechanism that assures safe driveability even when the actuator, switch, sensor or its circuit fails. The following table shows the fail safe function for each fail condition of sensor, actuator, switch, 4WD control module or its circuit.
