2WD/4WD Switch Removal and Installation

2WD/4WD Switch Removal and Installation
Reference: 4WD Control System Components: Motor-Shift Type

Removal
1. Remove BCM referring to BCM removal and installation.

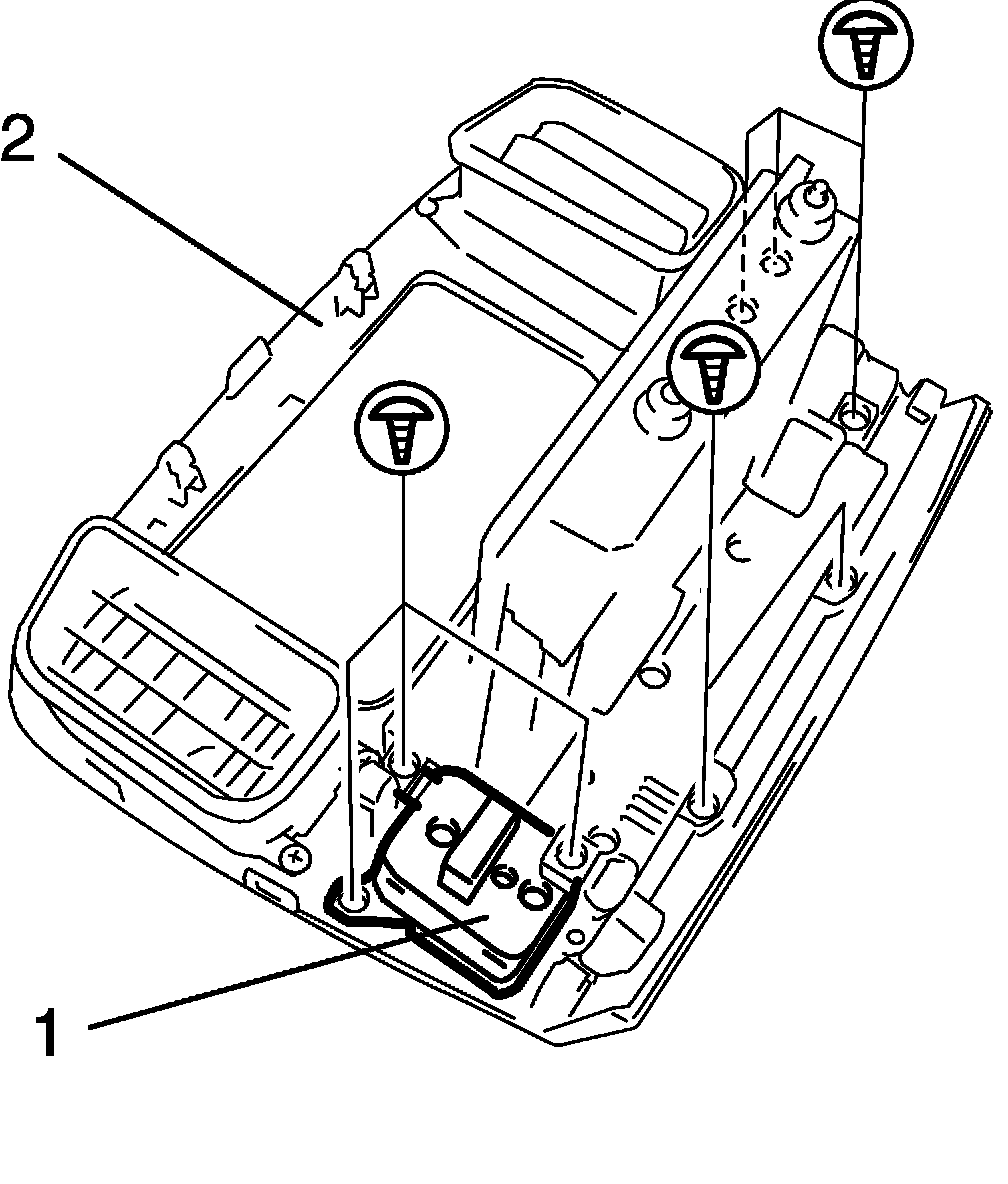

2. Remove 2WD/4WD switch (1) from center garnish (2).

Installation
Reverse removal procedure for installation.
