Removal and Installation

Removal and Installation
1) Lift up vehicle and turn steering wheel all way to the right.

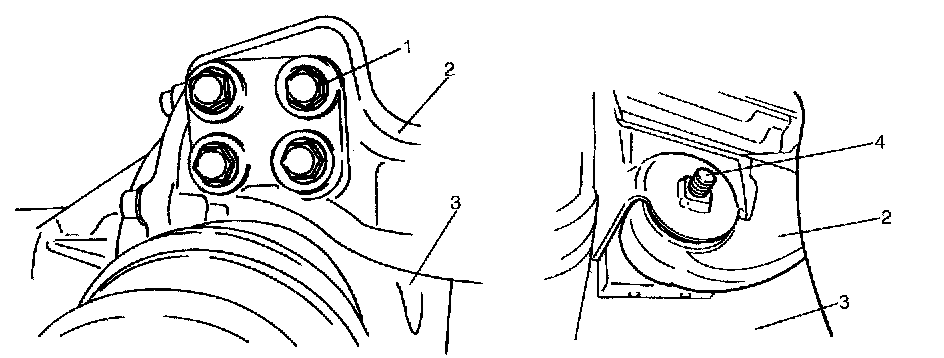

2) Separate mounting right bracket (2) from differential housing (3) by removing mounting bracket bolts (1) from its lower part.





3) Remove mounting right bracket (2) by removing mounting front bolt (4) from its upper part.

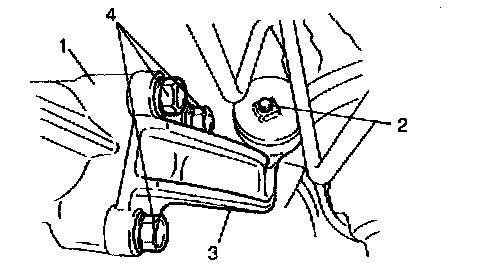

4) Remove mounting bracket L (3) from differential housing (1) by removing upper and lower fastening bolts (2, 4).

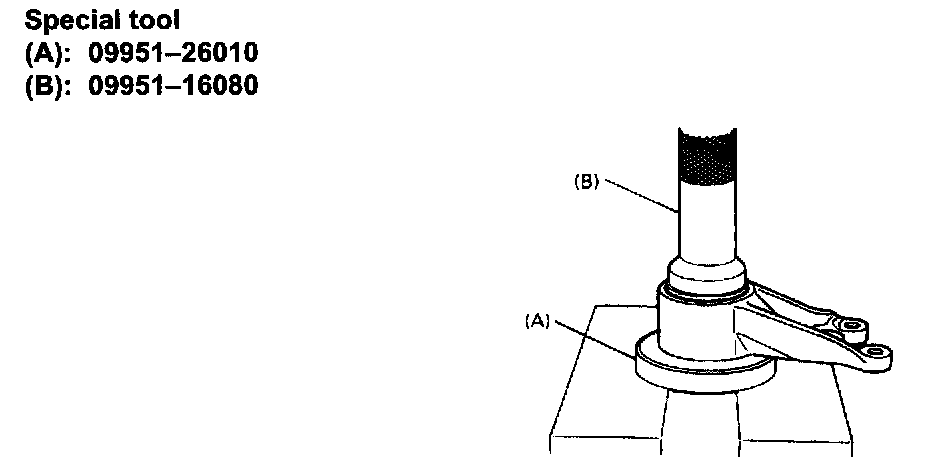

5) Check conditions of each bush. If it is damaged or deteriorated, drive it out with special tools and press for replacement.

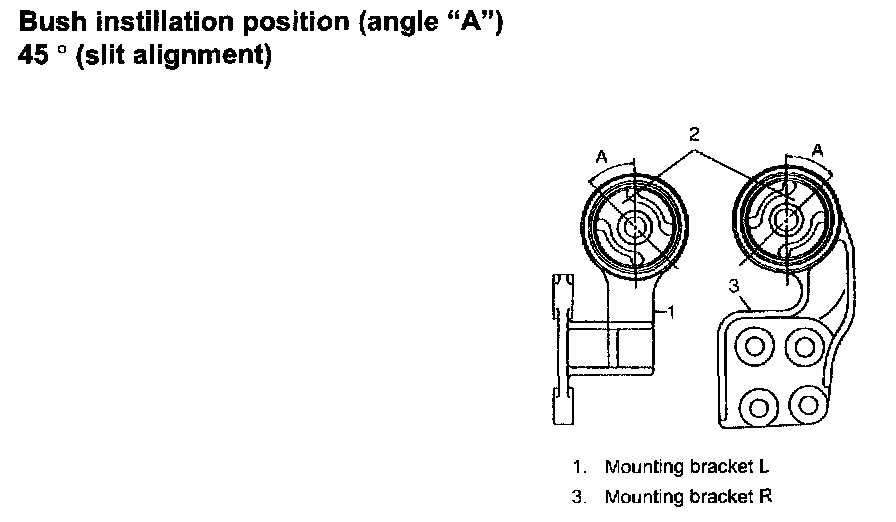

6) Position slit in each bush (2) as shown when press-fitting it.

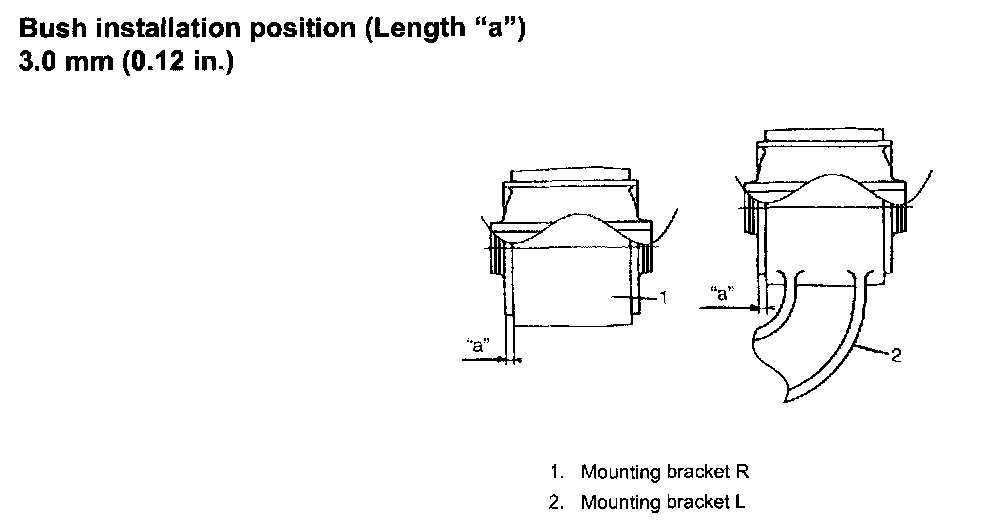

7) Position each bush to bracket as shown in figure.

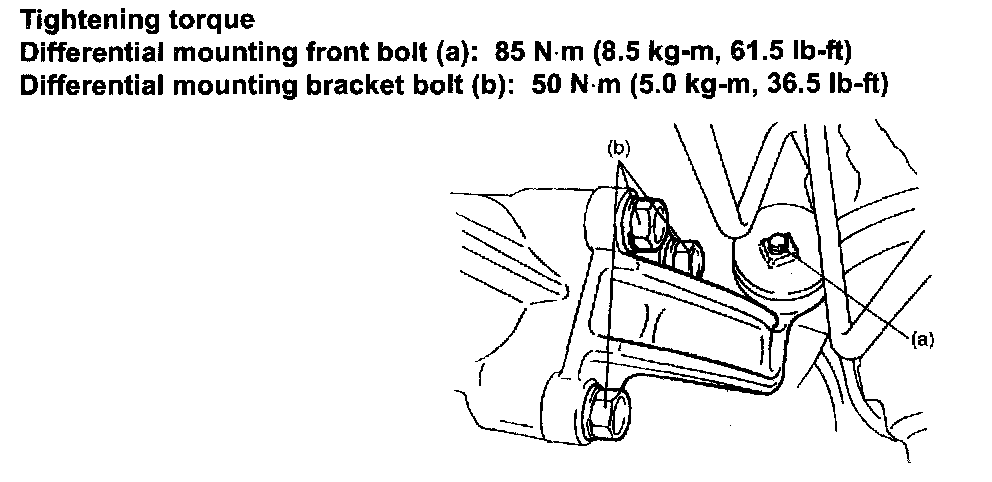

8) Tighten differential mounting front and bracket bolt to specified torque for reinstallation.
