Rear Mounting For Front Differential Carrier Replacement

Removal and Installation
For G16/J20 engine models

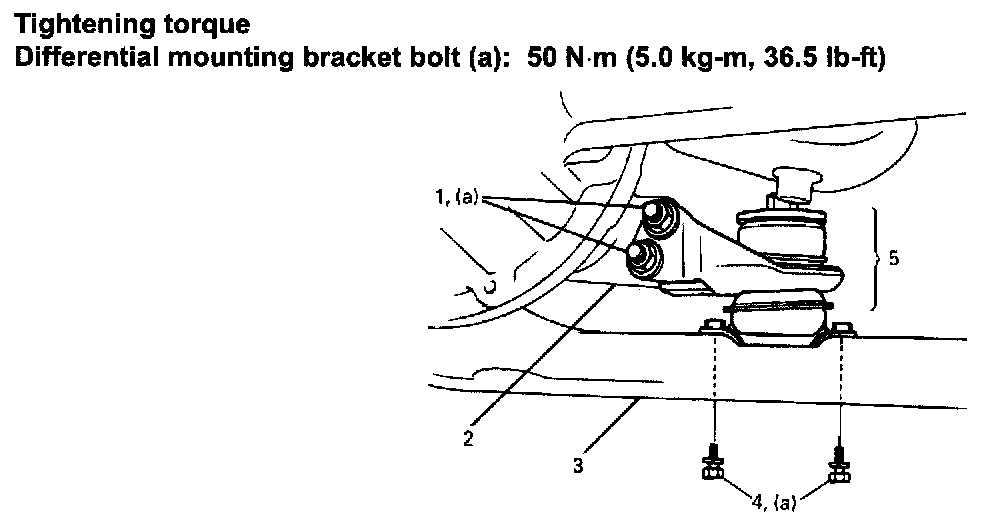

1) Lift up vehicle and remove rear mounting assembly (5) by removing 2 bolts and nuts (1) from differential carrier (2) side and 2 bolts (4) from cross member (3) side.
2) Check mounting rubber for damage or deterioration and replace as necessary.





3) Tighten differential mounting bracket bolt to specified torque for reinstallation.

For H25 engine model

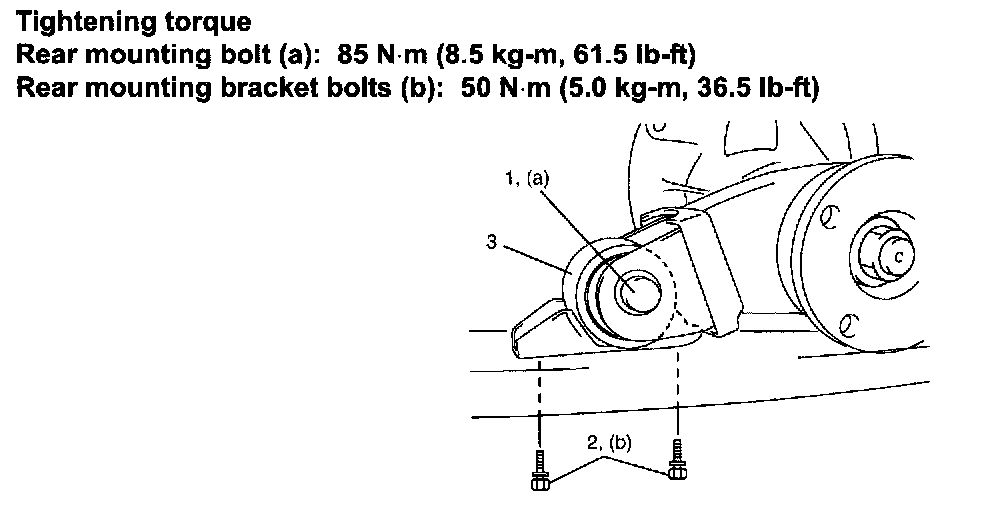

1) Lift up vehicle and remove rear mounting bracket (3) by removing rear mounting bolt (1) and rear mounting bracket bolts (2).
2) Check mounting rubber for damage or deterioration and replace as necessary.





3) Tighten rear mounting bolt (1) and rear mounting bracket bolts (2) to specified torque for reinstallation.
