Initial Inspection

Air Bag Diagnostic System Check Flow

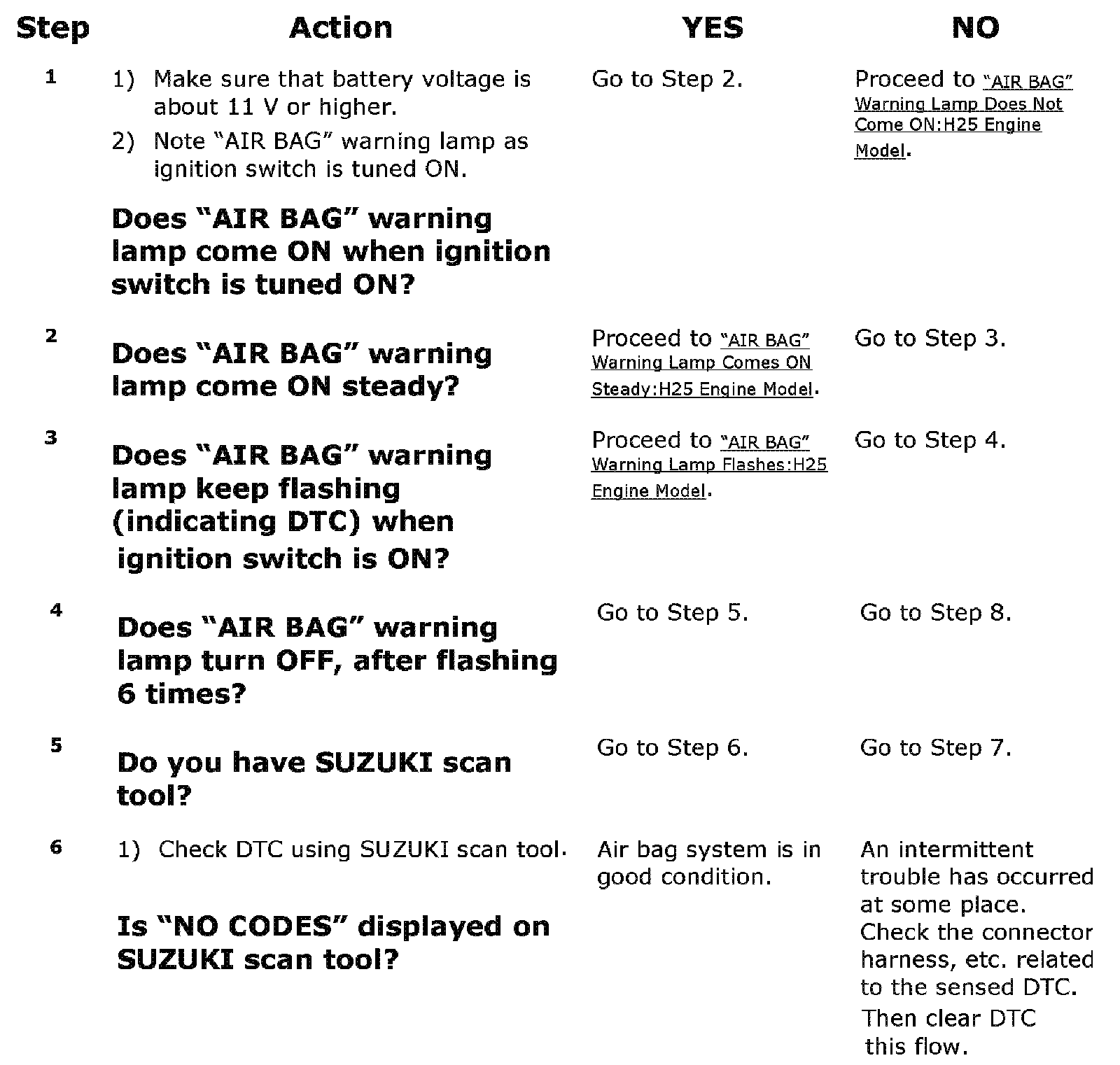

Step 1 - 6:

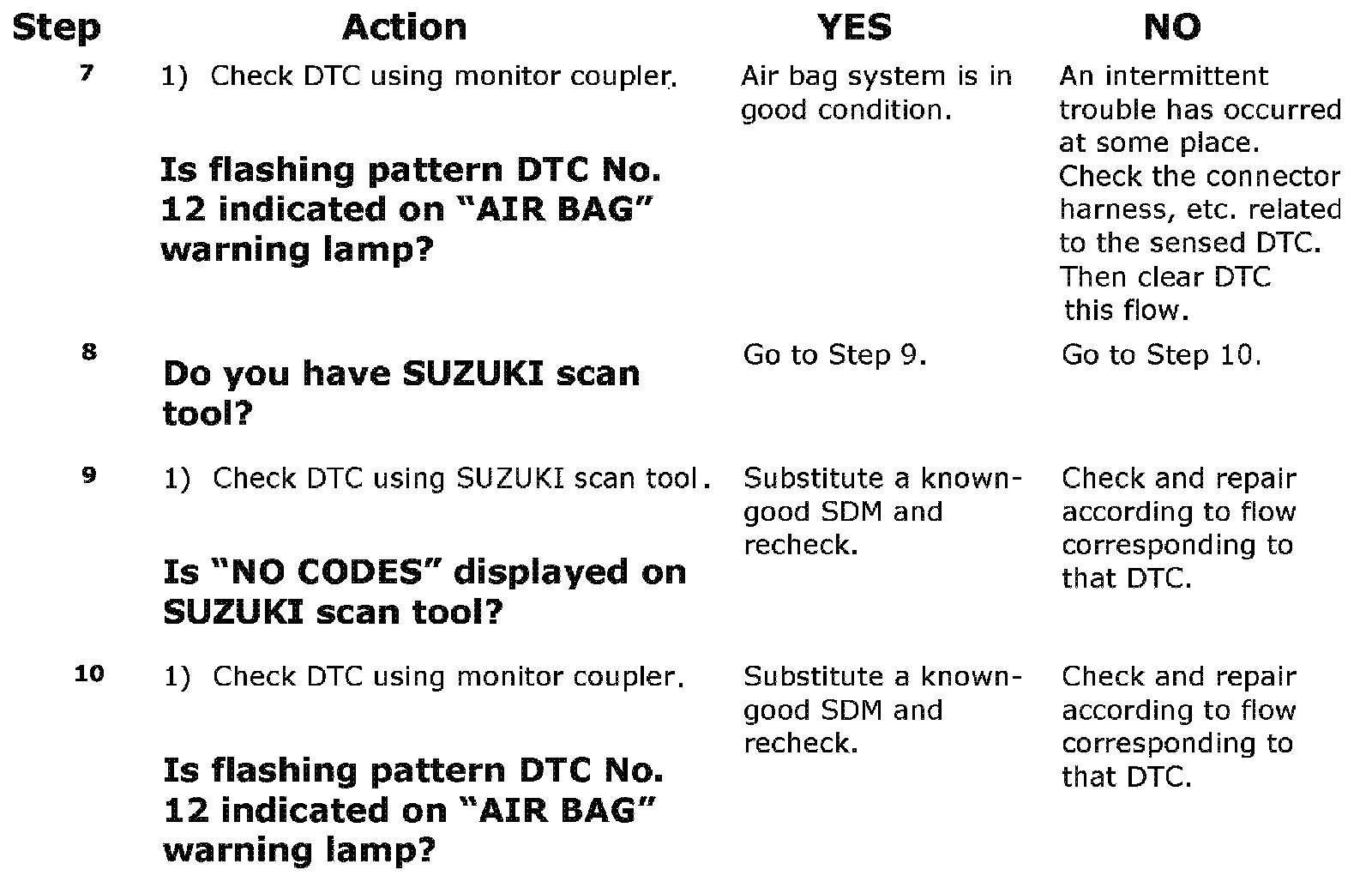

Step 7 - 10:

Flow test description
Step 1: Check that "AIR BAG" warning lamp lights.
Step 2: Check that "AIR BAG" warning lamp lights.
Step 3: Check diagnosis switch circuit.
Step 4: Check that "AIR BAG" warning lamp flashes 6 times after ignition switch is turned ON.
Step 6: Check that history code(s) is in SDM. (using SUZUKI scan tool)
Step 7: Check that history code(s) is in SDM. (using monitor coupler)
Step 9: Check that current code is in SDM. (using SUZUKI scan tool)
Step 10: Check that current code is in SDM. (using monitor coupler)
