A/C Condenser Fan Motor Relay Control System Inspection

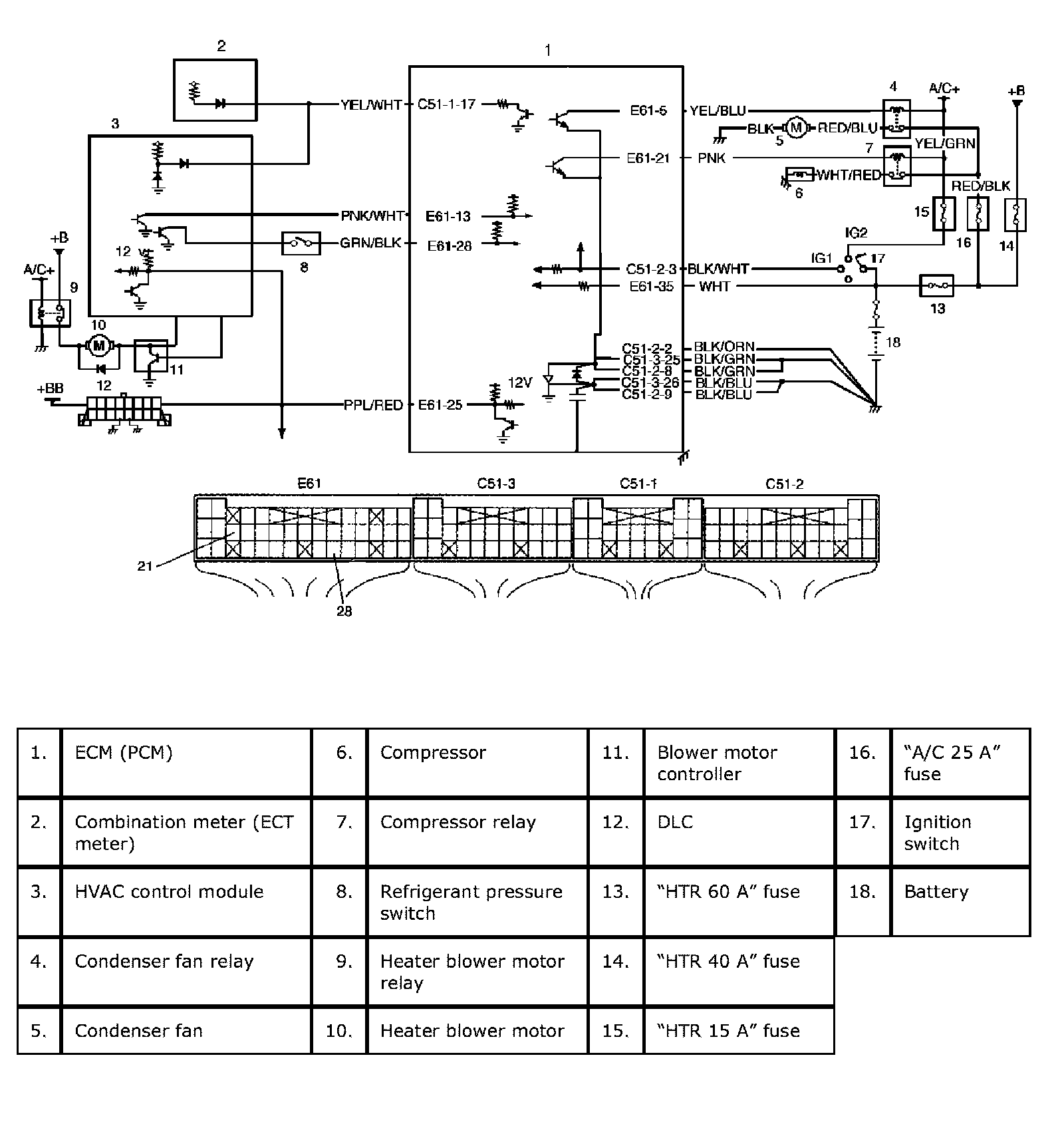

A/C Condenser Fan Motor Relay Control System CheckWiring Diagram:
Wiring Diagram
Circuit Description
A/C condenser fan is turned ON by ECM (PCM) when engine coolant temperature is higher than specified value regardless A/C ON or OFF.

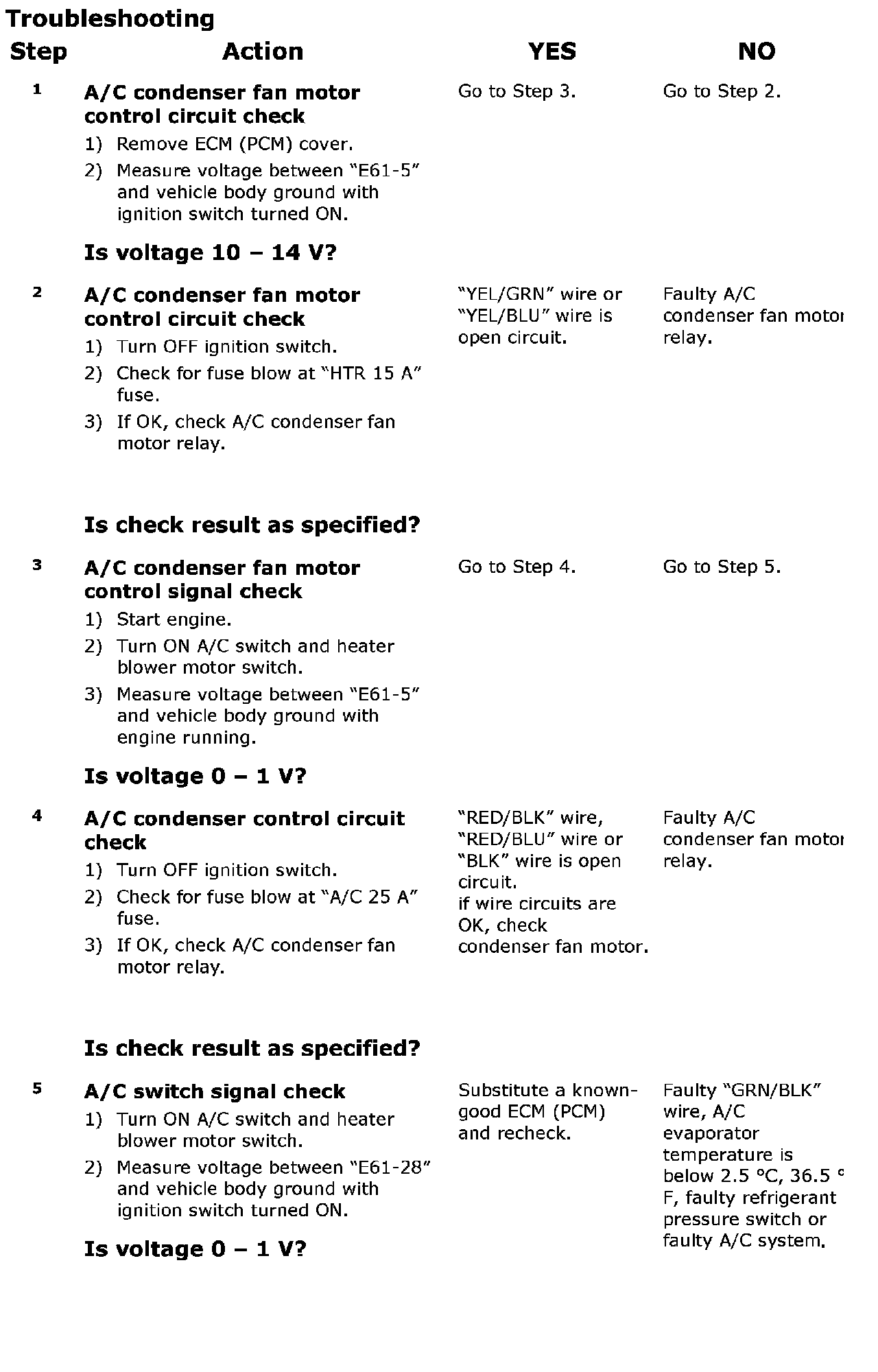

Step 1 - 5:
Troubleshooting
