Fuel Pressure Check

Fuel Pressure Check

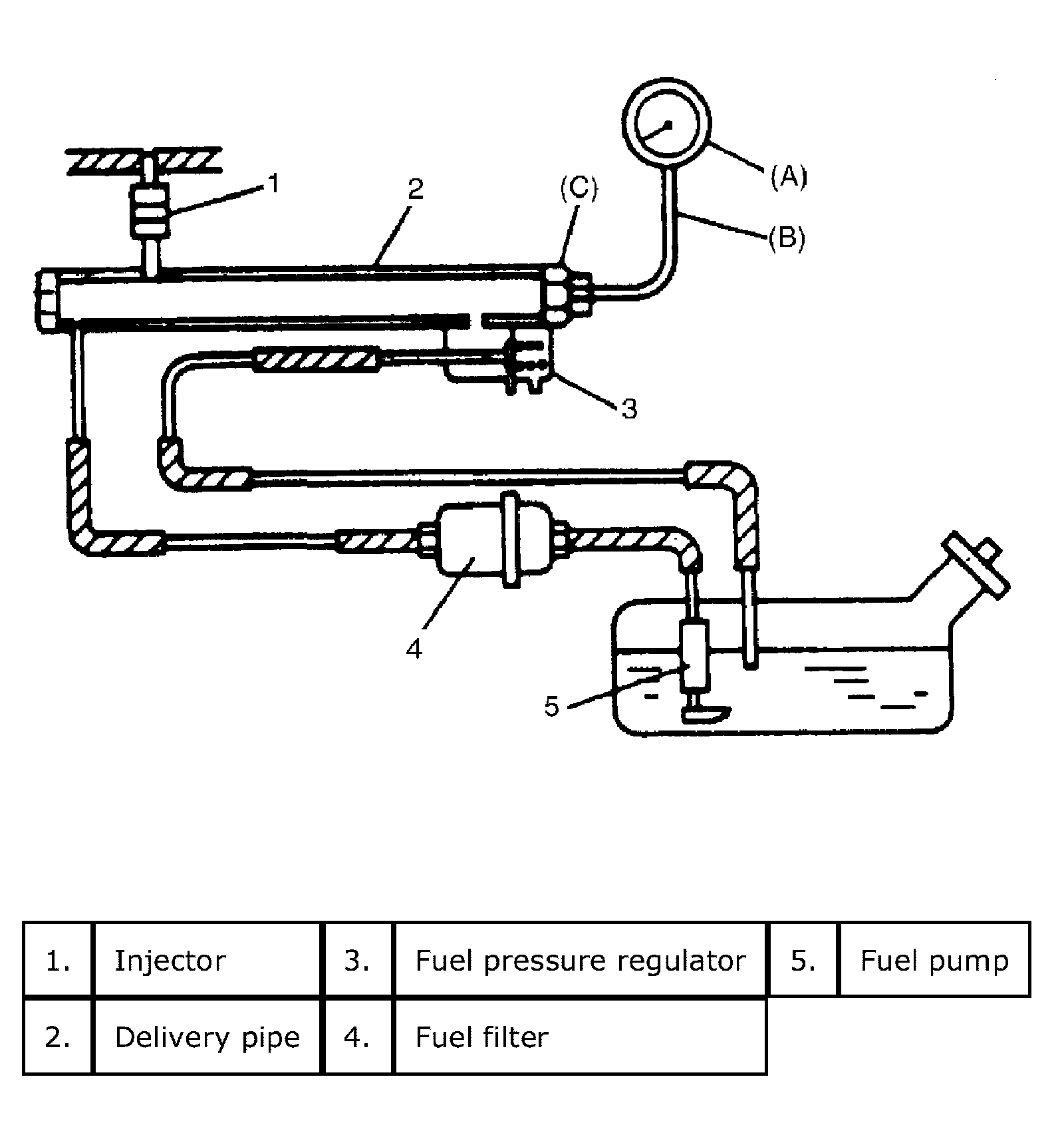

System Diagram

Special Tool
(A): 09912-58441
(B): 09912-58431
(C): 09919-46010

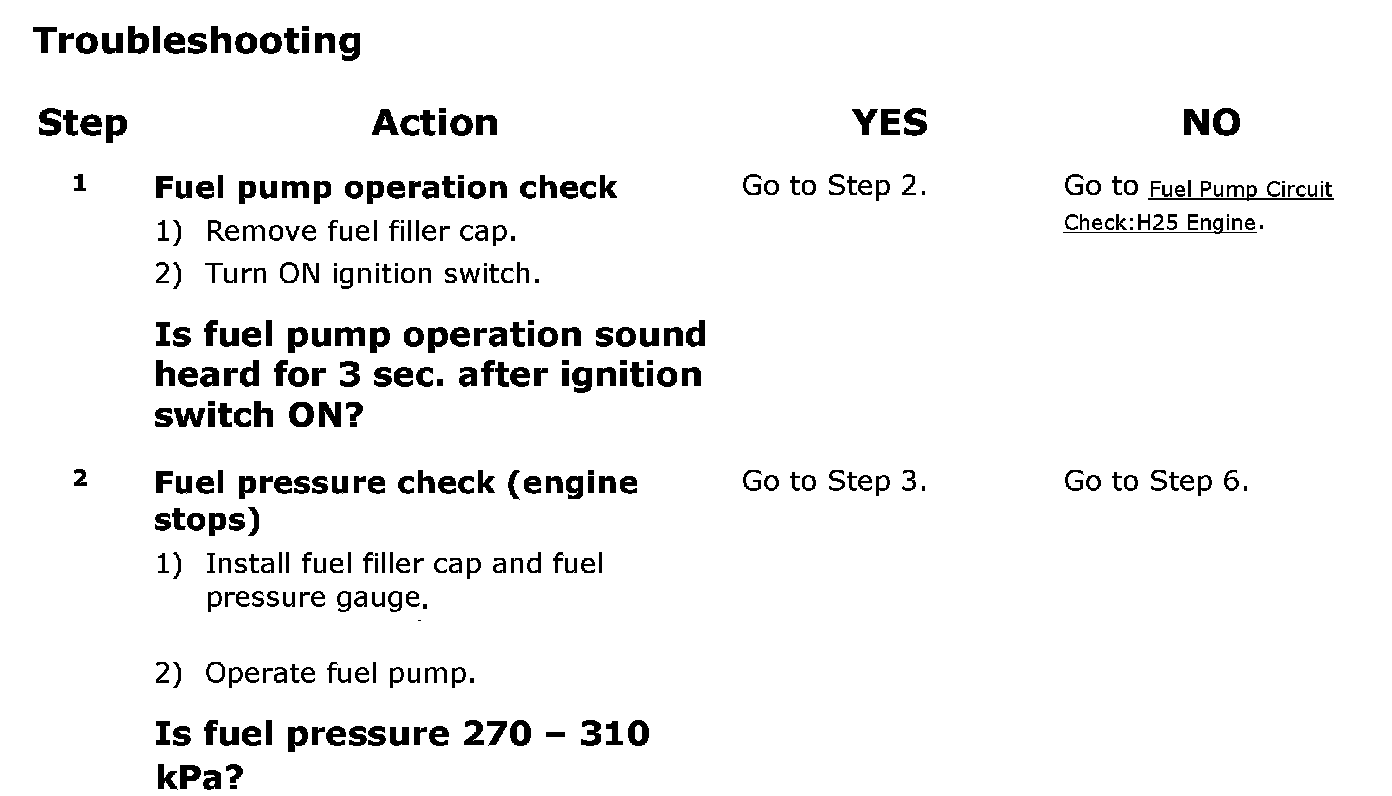

Step 1 - 2:

Step 3 - 8:

Troubleshooting

NOTE: Before using the following flow, check to make sure that battery voltage is higher than 11 V. If battery voltage is low, pressure becomes lower than specification even if fuel pump and line are in good condition.
