Emissions - Revised DTC P0456 Diagnostic Procedures
VITARASection Title: Engine
TSB No. TS 16 02106
Division: Automotive
Category: Technical
SUBJECT:
MIL ON; DTC P0456 (EVAPORATIVE EMISSION SYSTEM LEAK
DETECTED)
MODEL(S):
GRAND VITARA (JB627) AND GRAND VITARA XL-7 (JA627)
YEAR:
2005-2006
CONDITION:
Service manual update of diagnostic procedures for DTC P0456
(Evaporative Emission System Leak Detected)
CAUSE:
Diagnostic procedure changes
��:
CORRECTION:

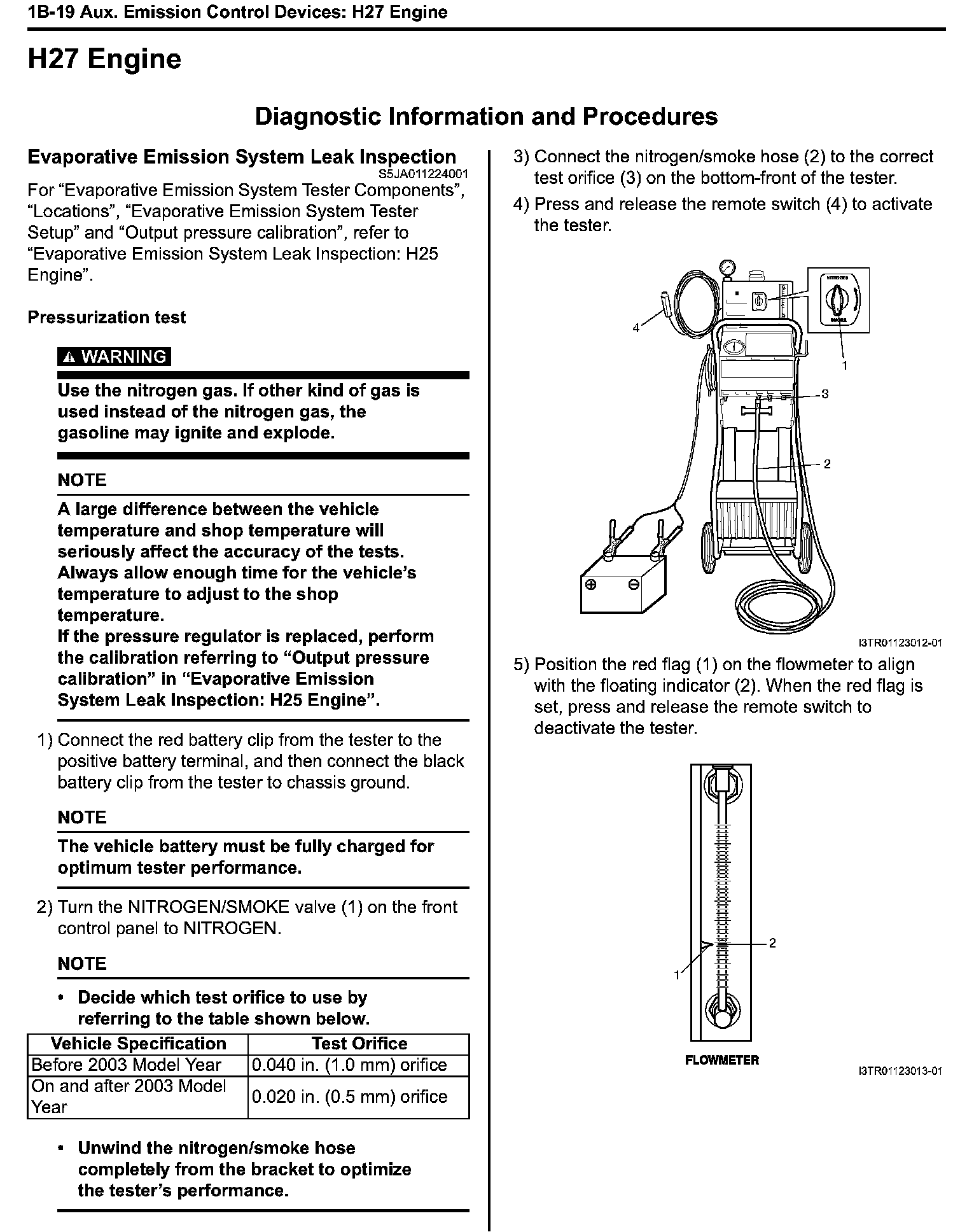

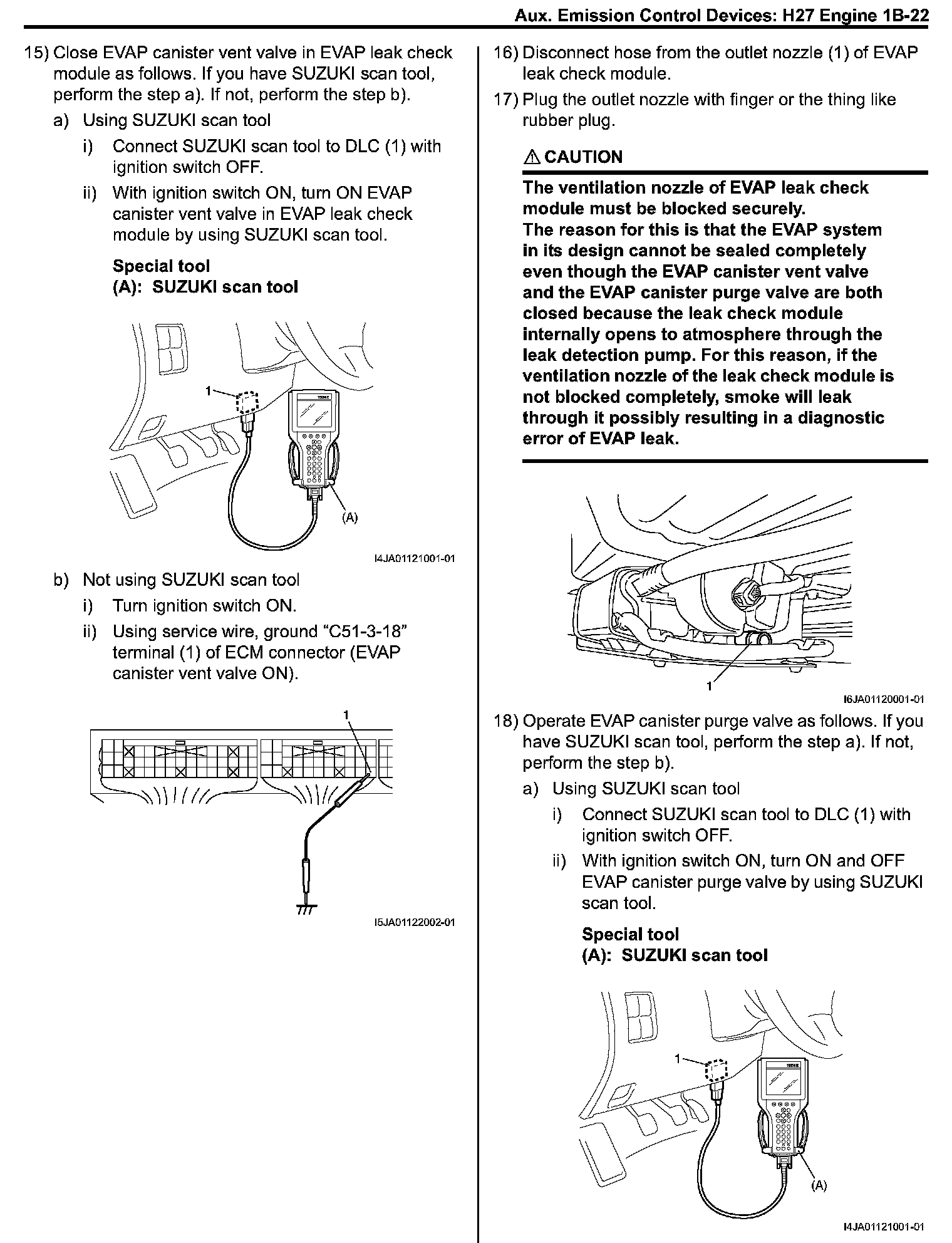

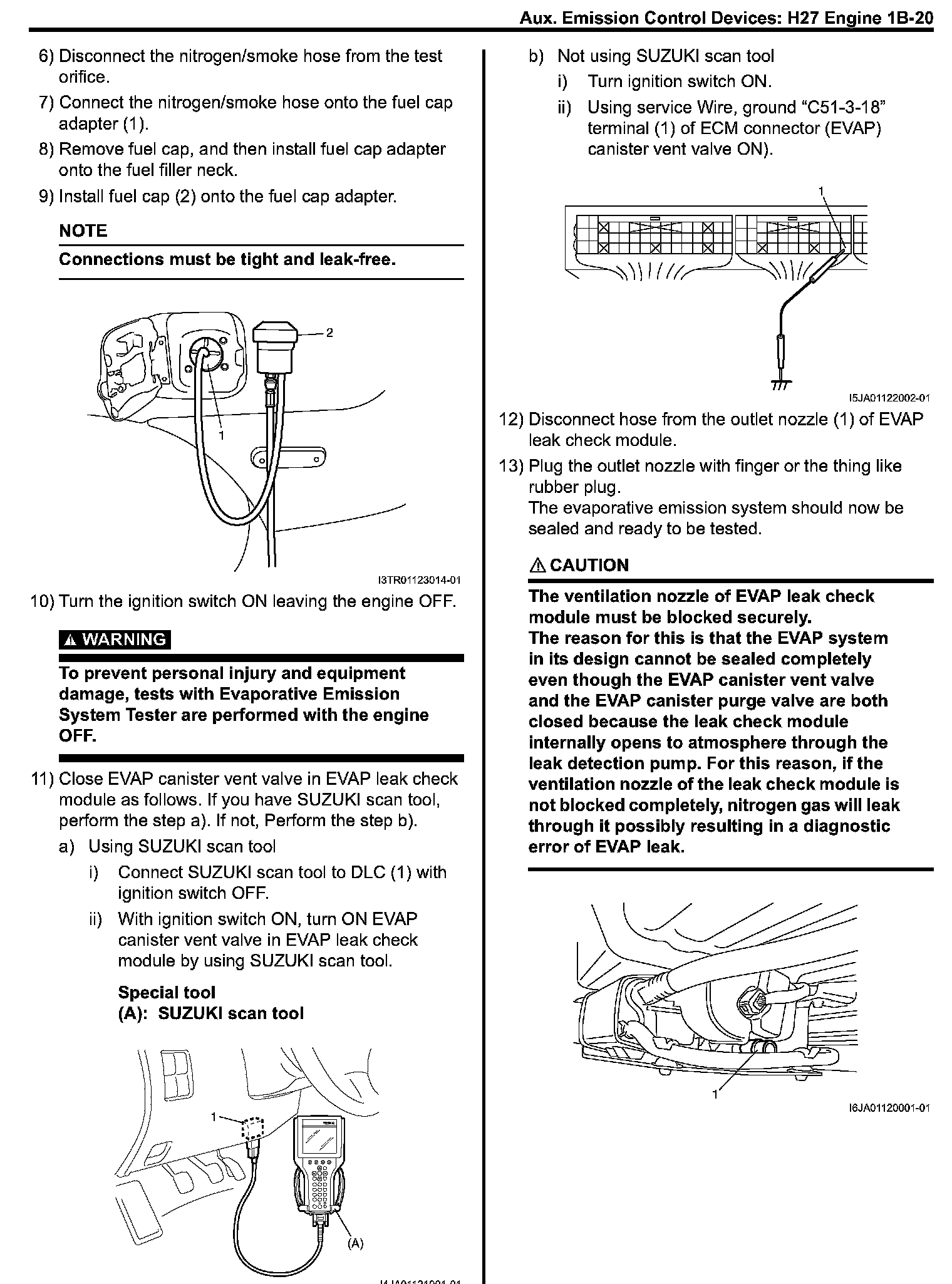

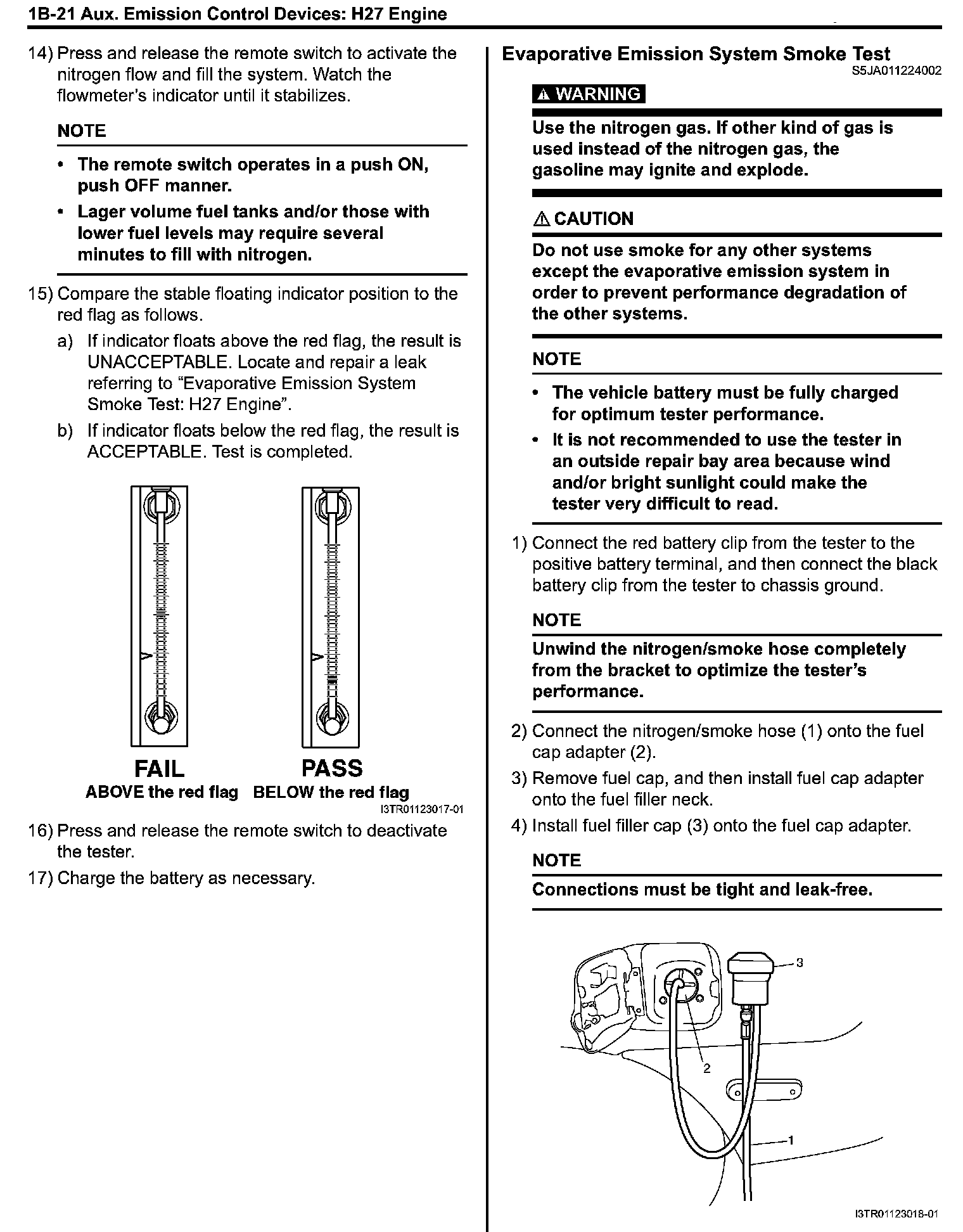

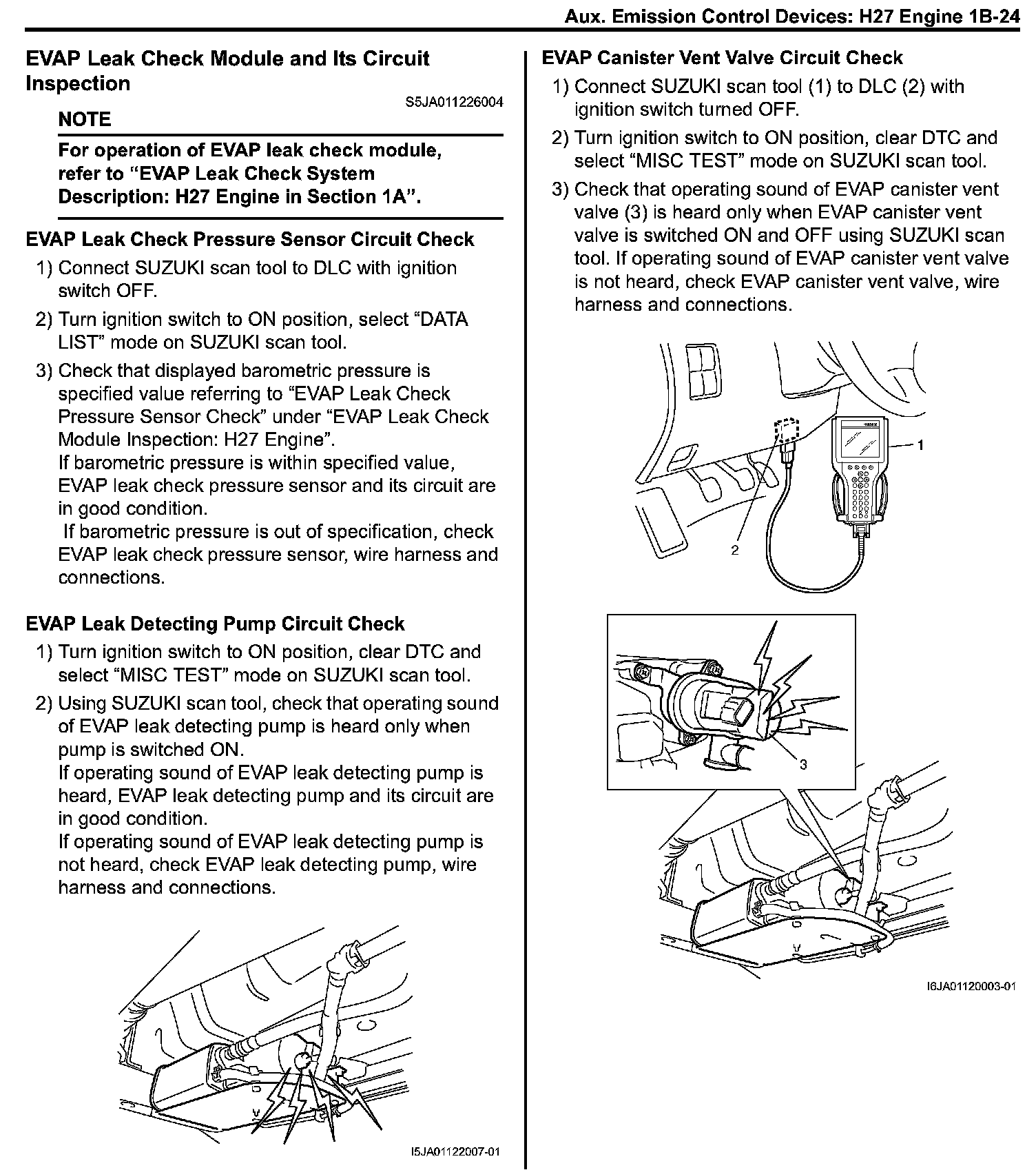

Begin by "crossing-out" the existing diagnostic information for DTC P0456 in the service manuals shown in the chart. Then copy the pages and insert them into these manuals in their respective locations. It will be necessary to make three copies of the attached Section 1A pages since they appear in three different manuals with different page numbers.

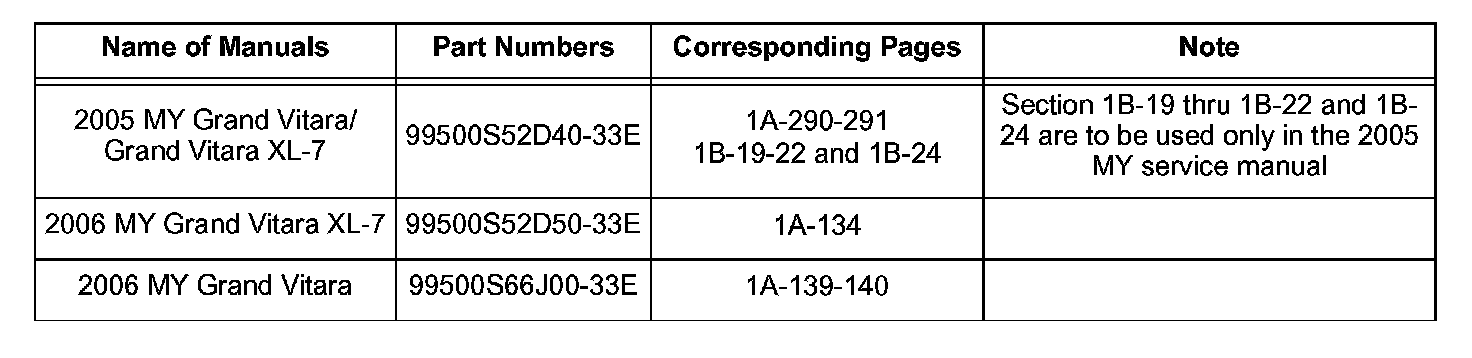

AFFECTED SERVICE MANUALS
NOTE:
These updates will appear in future printings of the service manuals. If the reprint date on the inside back cover of the manual is later than the issue date of this bulletin, the manual will have been updated.
