Evaporative Emission Control Canister: Service and Repair

EVAP Canister Removal and Installation

Removal
1. Hoist vehicle.

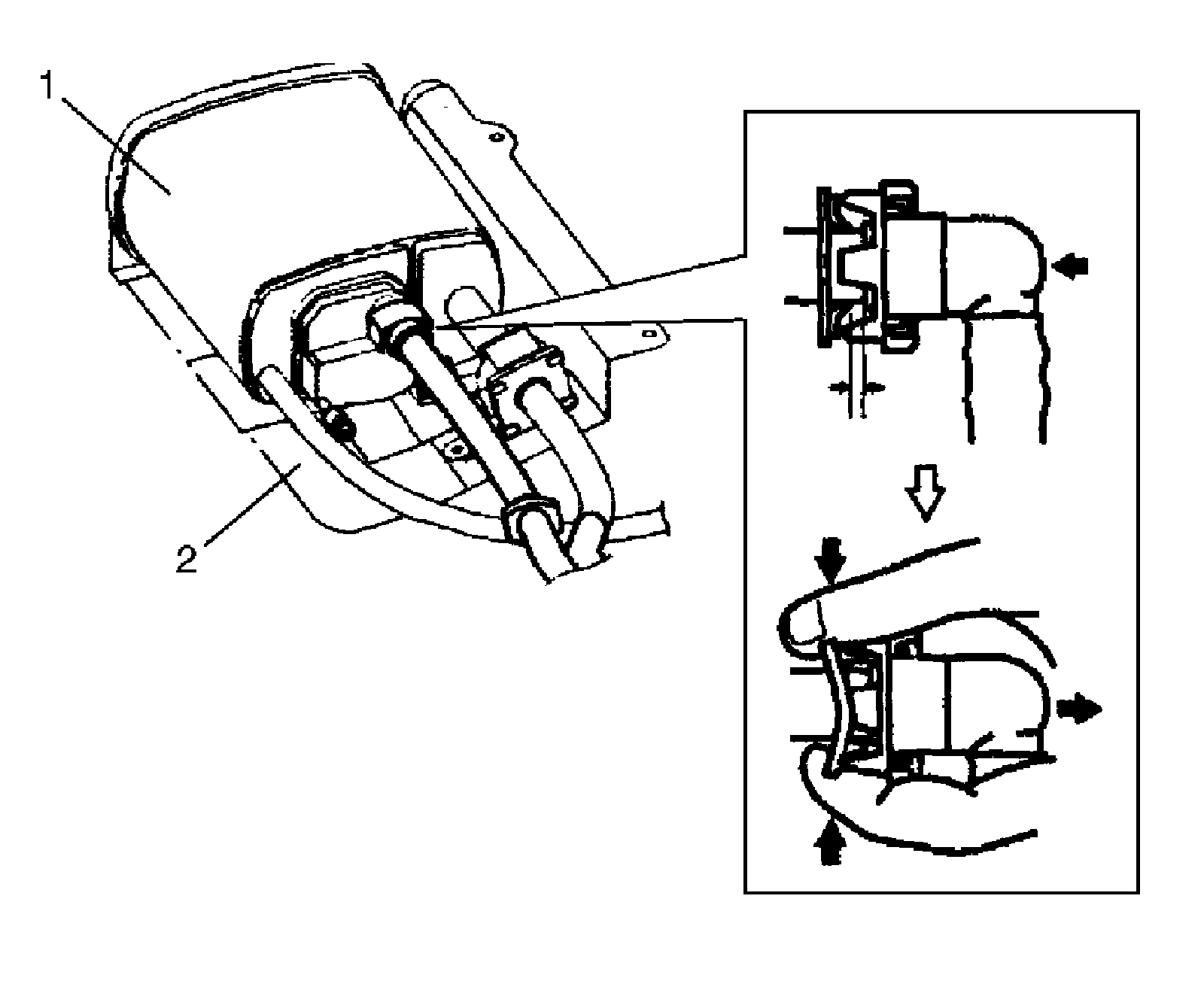

2. Remove EVAP canister (1) with its bracket (2).
3. Disconnect hoses from EVAP canister.
For quick joint, disconnect it as follows:
a. Remove mud or rust around joint by blowing compressed air, and push joint fully in arrow direction.
b. Disconnect hose joint while joint lock is unlocked by pushing both sides of joint.

4. Remove EVAP canister bolts.
5. Disconnect canister vent valve hose from EVAP canister.

Installation

Reference: EVAP Canister Check:H25 Engine

1. Connect air valve hose to EVAP canister.

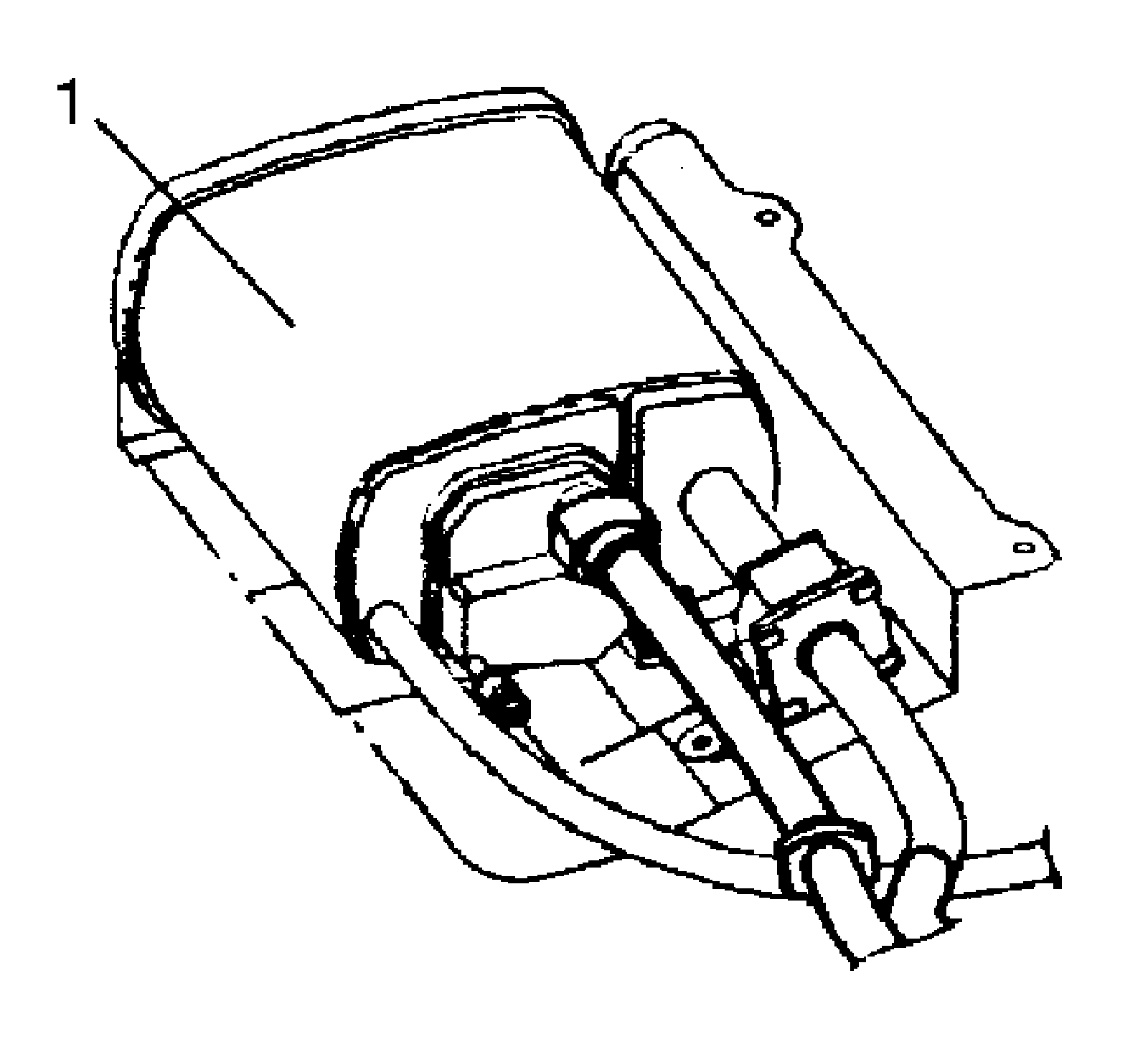

2. Install EVAP canister (1) to its bracket.
3. Connect tank hose, purge hose and refuel vapor control valve hose to EVAP canister (1), and then clamp them securely.
For quick joint, push joint into pipe till joint lock clicks.
