Engine and Emission Control System Description

Engine and Emission Control System Description

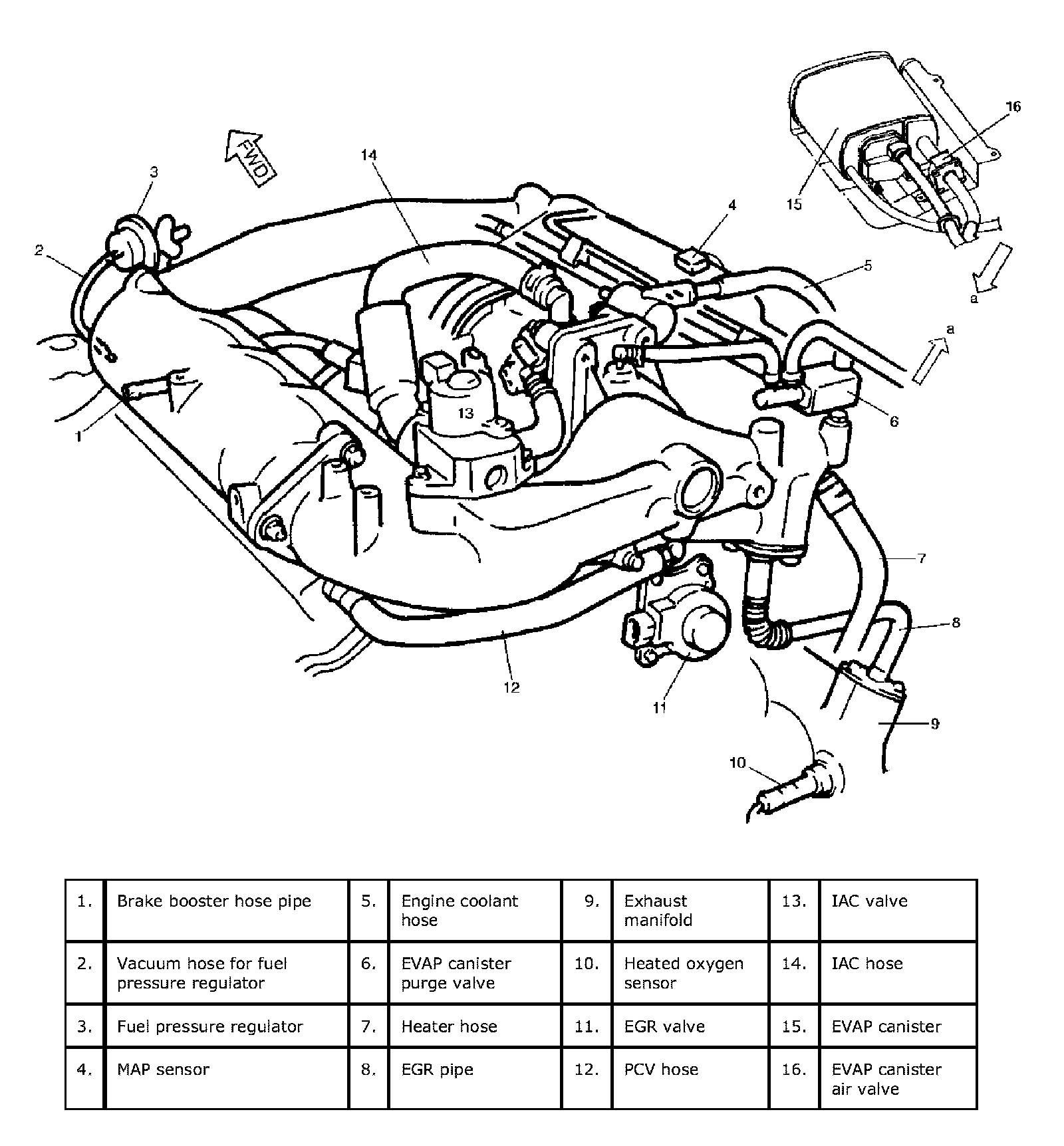

Engine And Emission Control System Hose And Piping Location:

When hoses are disconnected and system components are removed for service, reinstall components properly, and route and connect hoses correctly after service. Refer to the figure for proper routing of hoses.
