Comprehensive Component Monitor (A/T Output)

OBD System Description - Comprehensive Component Monitor (AT Output)

DTC Description / Detecting Condition / Confirmation Procedure

P2769, P2770
Refer to DTC P2769 / P2770: TCC (Lock-Up) Solenoid Electrical:4 A/T.

P0973, P0974, P0976, P0977
Refer to DTC P0973 / P0974 / P0976 / P0977: Shift Solenoid Electrical:4 A/T.

P0741, P0742
Refer to DTC P0741 / P0742: Torque Convert Clutch (TCC) Solenoid Valve Performance or Stuck OFF / Stuck ON:4 A/T.

P0751, P0752, P0756, P0757
Refer to DTC P0751 / P0752 / P0756 / P0757: Shift Solenoid Performance or Stuck OFF / Stuck ON:4 A/T.

TCC Solenoid Rationality Monitor

Monitoring procedure
TCM (PCM) monitors operation (engagement condition) of TCC in response to ON/OFF command to the TCC solenoid using input and output speed sensor signals.

Shift Solenoid #1 Rationality Monitor

Monitoring procedure
TCM (PCM) calculates the actual transmission gear ratio from input and output speed sensor signals and monitor it. TCM (PCM) detects a trouble when the actual transmission gear ratio is not equal to the ratio of each gear as commanded by TCM (PCM).

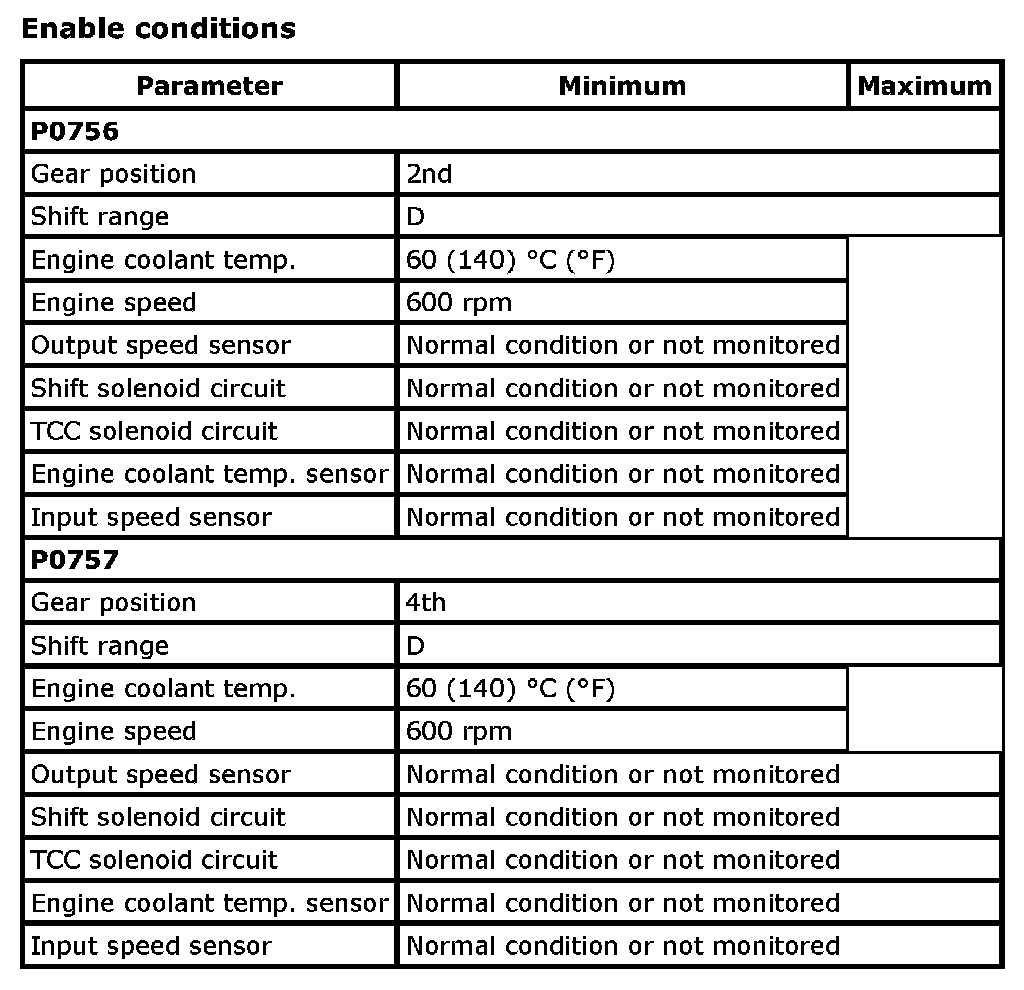

Shift Solenoid #2 Rationality Monitor

Monitoring procedure
TCM (PCM) calculates the actual transmission gear ratio from input and output speed sensor signals and monitor it. TCM (PCM) detects a trouble when the actual transmission gear ratio is not equal to the ratio of each gear as commanded by TCM (PCM).
