Comprehensive Component Monitor (A/T Input)

OBD System Description - Comprehensive Component Monitor (AT Input)

DTC Description / Detecting Condition / Confirmation Procedure

P0705, P0707
Refer to DTC P0705 / P0707: Transmission Range Sensor Circuit Malfunction (PRNDL input) / Low:4 A/T.

P0717
Refer to DTC P0717: Input / Turbine Speed Sensor Circuit No Signal:4 A/T.

P0722
Refer to DTC P0722: Output Speed Sensor Circuit No Signal:4 A/T.

Transmission Range Switch (Sensor) Circuit Monitor

Monitoring procedure
Input signals of Transmission range switch (Shift position switch) (P0707) is checked for open, short of circuit by monitoring input voltage.

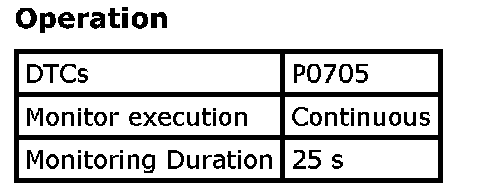

Operation:

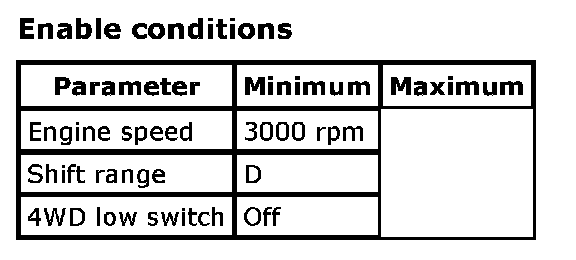

Enable Conditions:

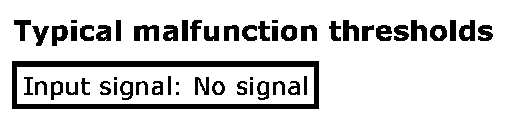

Typical Malfunction Thresholds:

Transmission Range Switch (Sensor) Circuit Monitor

Operation:

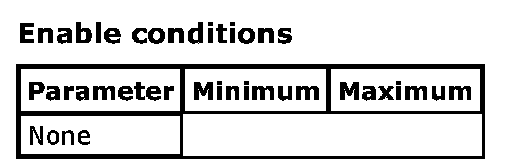

Enable Conditions:

Typical Malfunction Thresholds:

Transmission Range Switch (Sensor) Rationality Monitor

Operation:

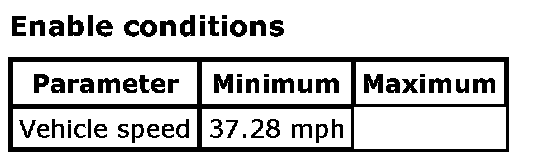

Enable Conditions:

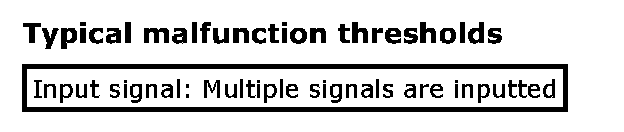

Typical Malfunction Thresholds:

Input Shaft Speed Sensor Rationality Monitor

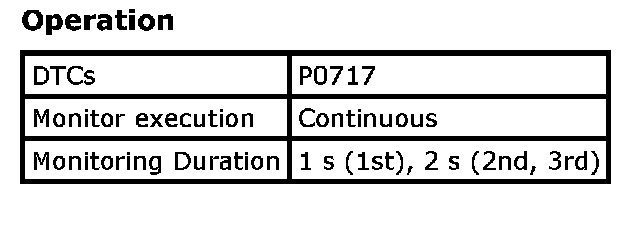

Operation:

Enable Conditions:

Typical Malfunction Thresholds:

Output Shaft Speed Sensor Rationality Monitor
