Electronic Control System Flow Diagram
Electronic Control System Flow Diagram

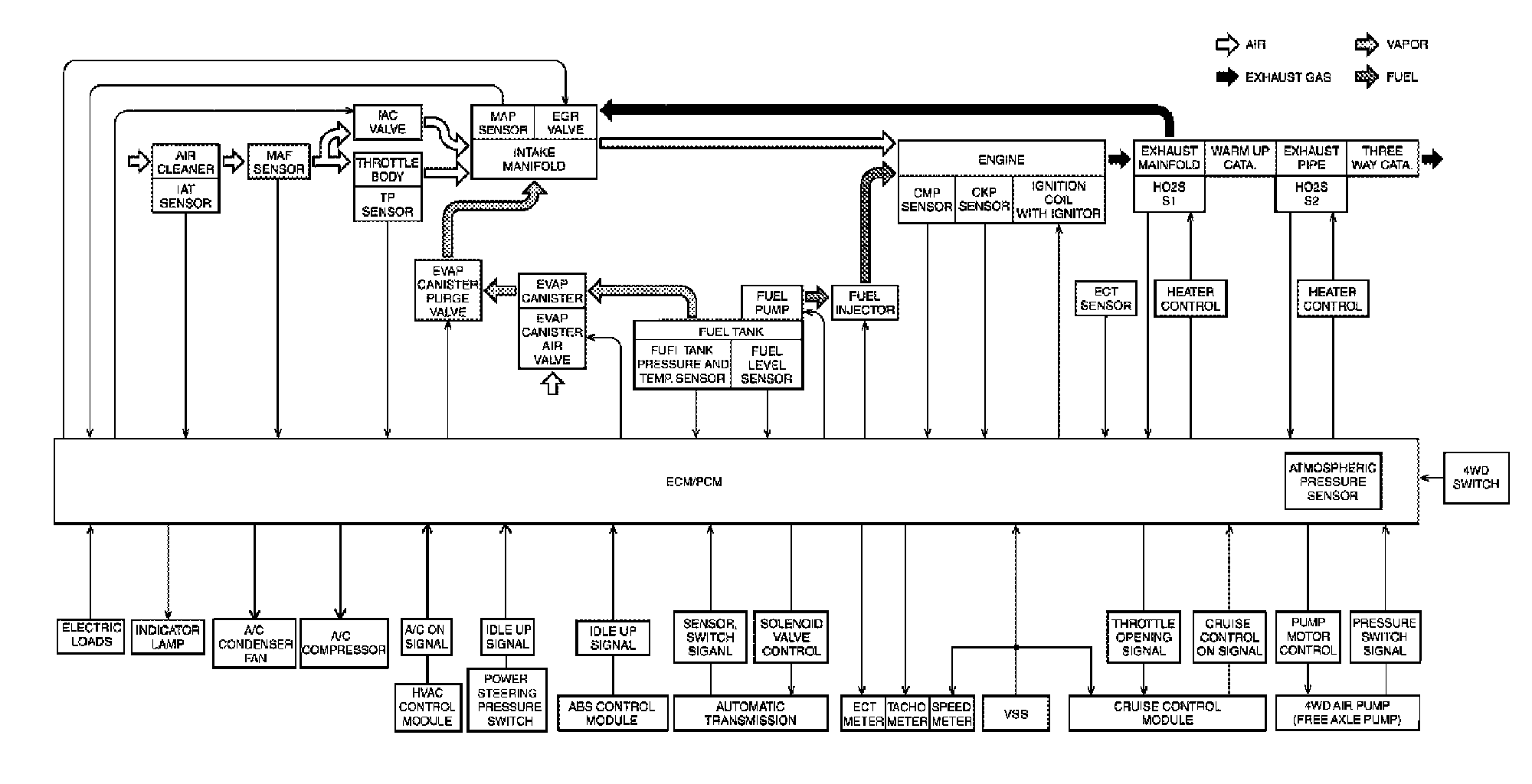

Electronic Control System Flow Chart:
