Locations
>>
Connector Locations
>>
L Connectors
L Connectors

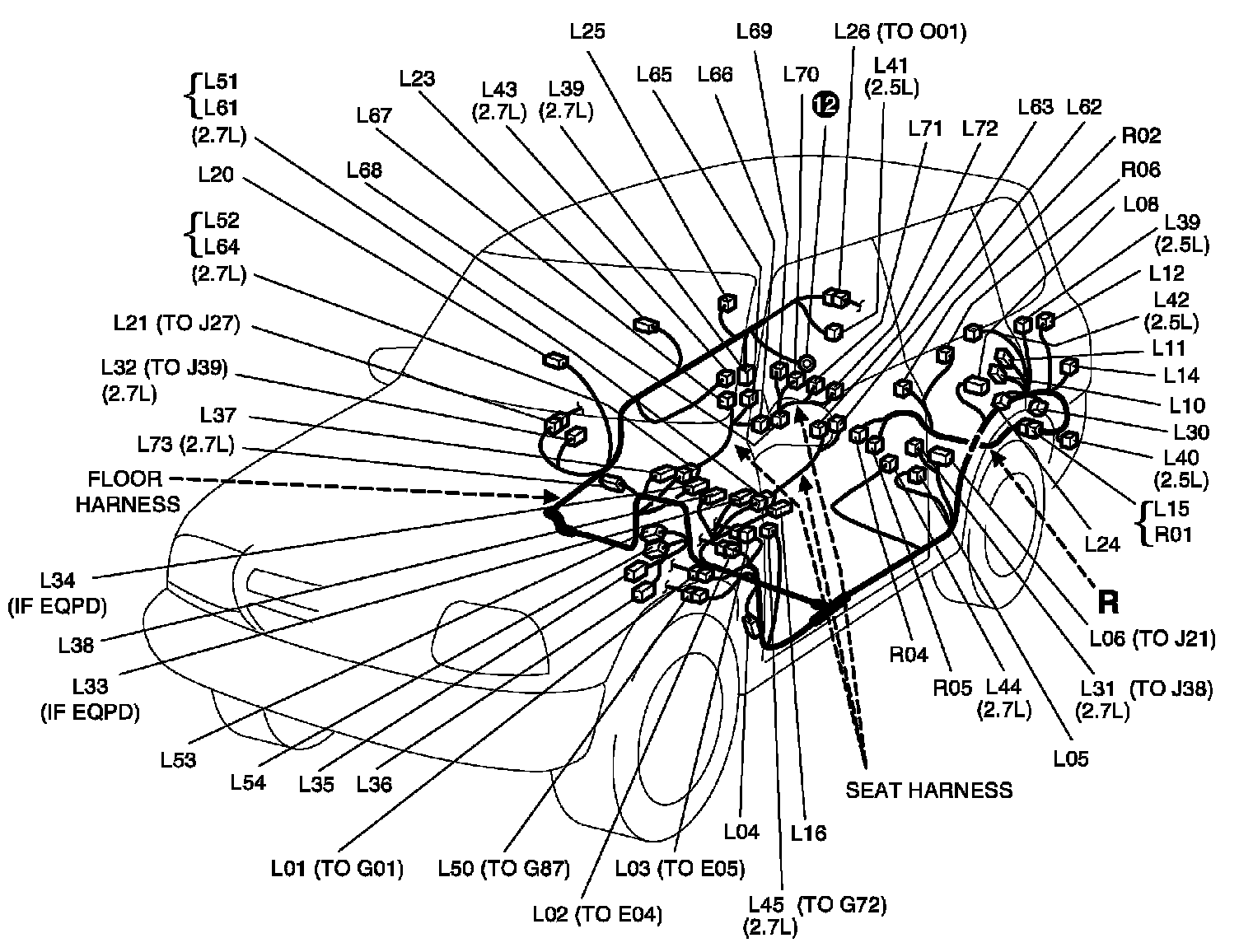

L:Floor Harness and Seat Harness / R:Fuel Pump Wire View:

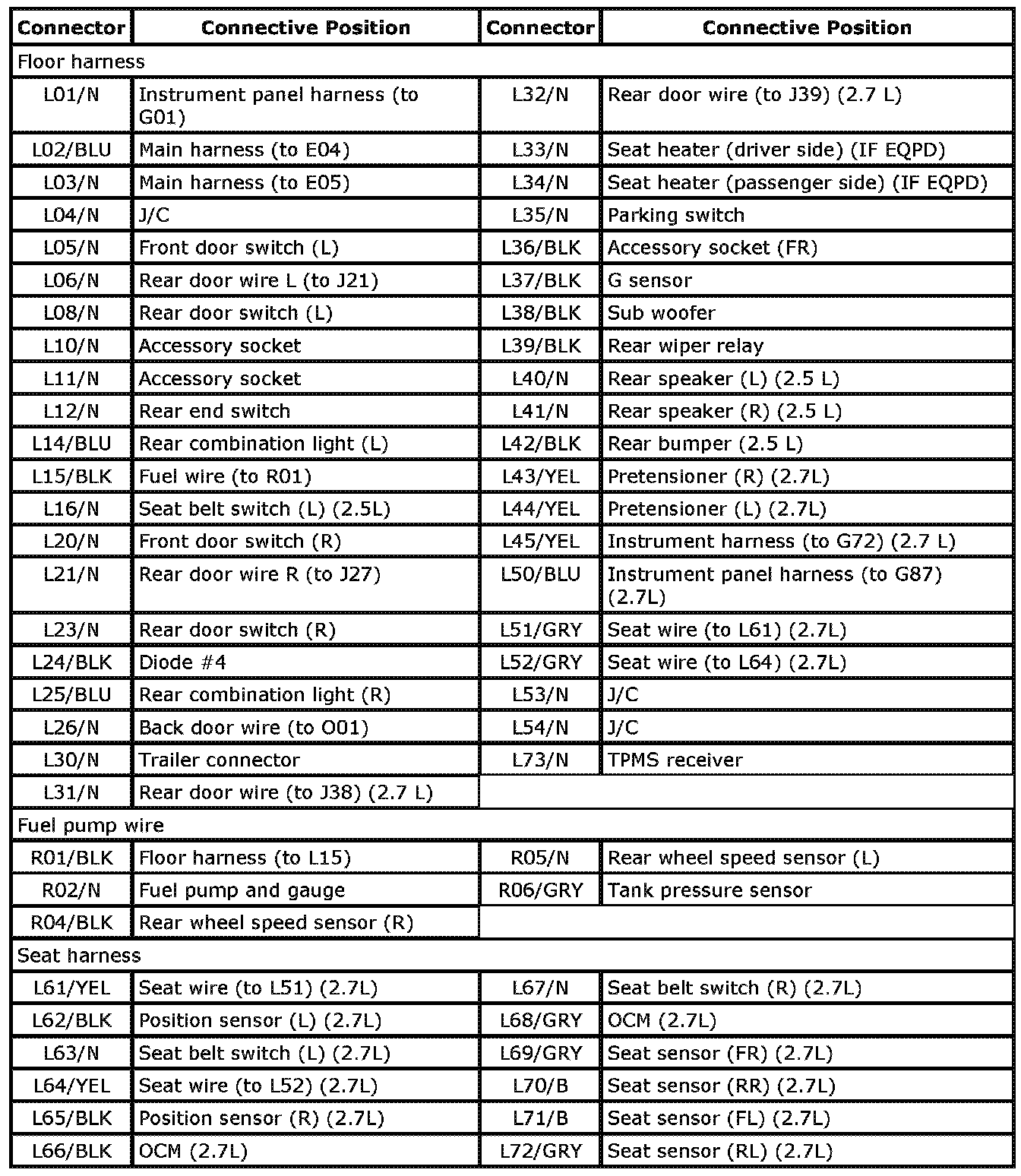

L:Floor Harness and Seat Harness / R:Fuel Pump Wire Index:
